Запчасти Case IH DRY (A-158) - DRY FERTILIZERS, DISK APPLICATOR / PRODUCT GRAPHICS

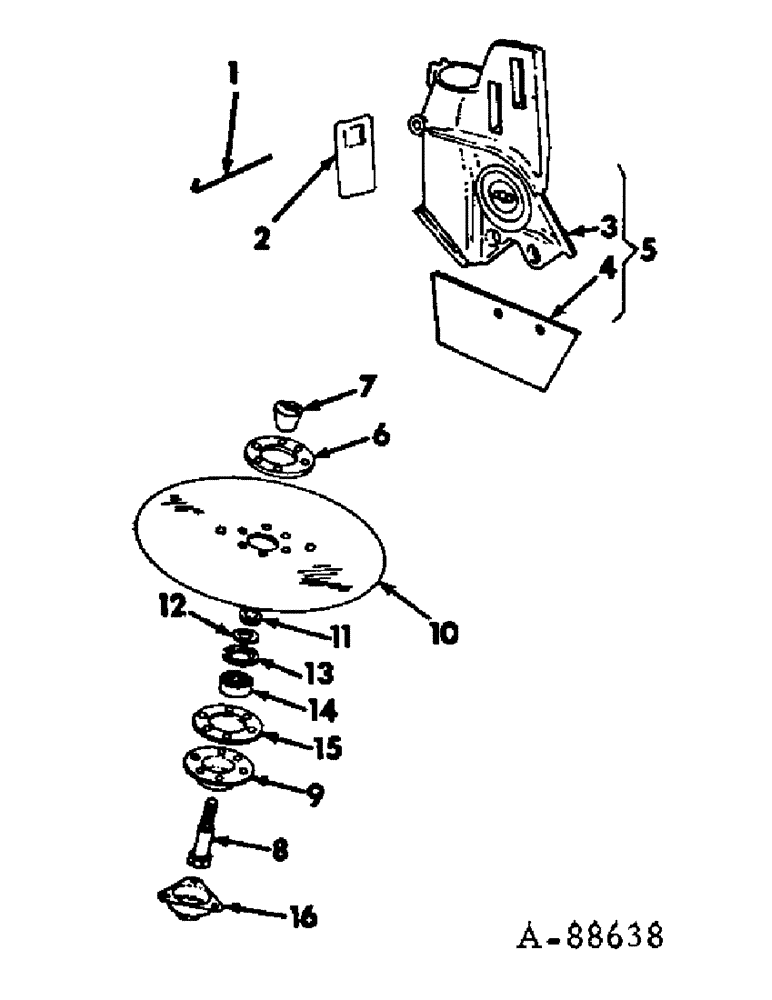

Схема запчастей Case IH DRY - (A-158) - DRY FERTILIZERS, DISK APPLICATOR / PRODUCT GRAPHICS
11
16
15
9
8
13
6
7
2
3
5
14
12
1
10
4

Артикул

Название

Примечание

Количество

1

625792R1

WIRE, cover fastening

1шт.

2

625789R1

COVER

PLATE, cover

1шт.

3

625777R1

DISC

BOOT, left

1шт.

3

625778R1

DISC

BOOT, right

1шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2-13 x 1-3/4 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

625780R1

BLADE

left runner

1шт.

4

625781R1

BLADE

right runner

1шт.

13969R1

RIVET, 5/16 x 7/8 csk-hd

4шт.

5

625799R91

BOOT

W/RUNNER, left

1шт.

5

625800R91

CLUTCH ASSEMBLY

BOOT W/RUNNER, right

1шт.

6

464480R1

WASHER

WASHER, reinforcement

1шт.

7

464468R1

BUSHING

SPACER, opener disk

1шт.

8

464467R1

BOLT,7/16" - 14 x 2 5/8"

opener disk

1шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

9

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

HOUSING, disk bearing

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/16 C-Z hex-hd cap

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

10

463955R1

DISC

DISK, opener

1шт.

11

602988R1

SPACER

bearing

1шт.

12

464628R1

SEAL

housing rubber

1шт.

13

602994R1

FLANGE

bearing

1шт.

14

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ball

1шт.

15

602992R1

GASKET

housing

1шт.

16

464483R1

CYLINDER END CAP

CAP, bearing housing dirt

1шт.

547494R92

DECAL

PACKAGE, IH trademark product graphics

1шт.

547496R92

DECAL

PACKAGE, international product graphics

1шт.

Выбрано товаров: 29
