Запчасти Case IH DRY (A-148) - DRY FERTILIZERS, FERTILIZER HOPPER & MAIN FRAME, SLOW & FAST FEED, MACHINES BUILT 1963 TO 1965

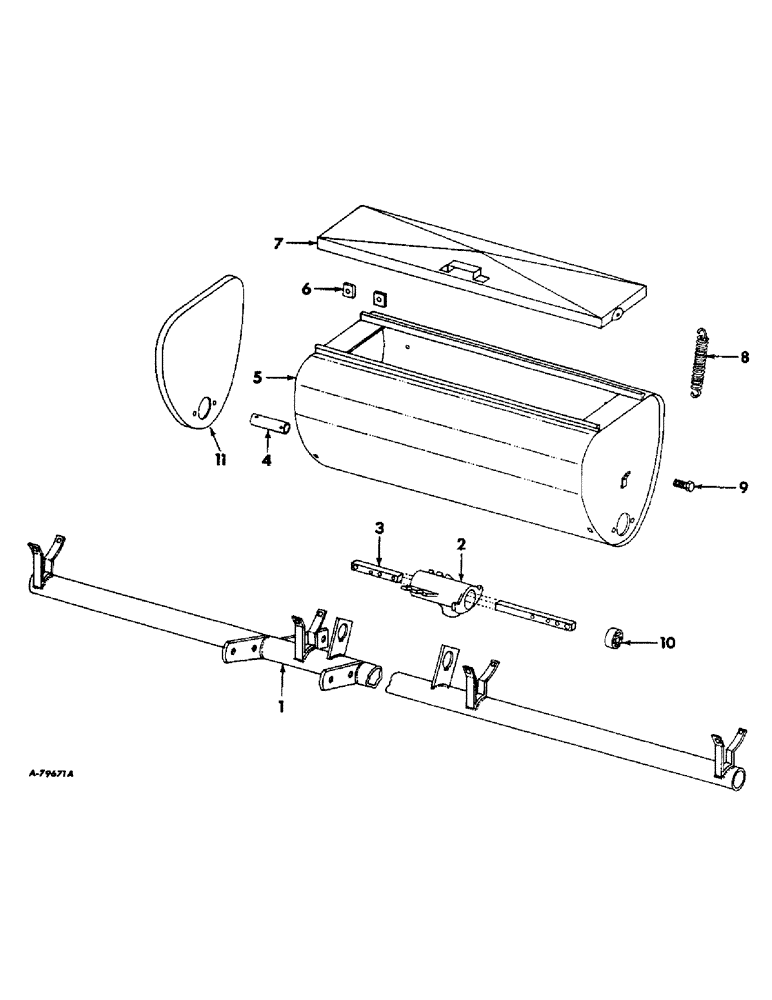

Схема запчастей Case IH DRY - (A-148) - DRY FERTILIZERS, FERTILIZER HOPPER & MAIN FRAME, SLOW & FAST FEED, MACHINES BUILT 1963 TO 1965
5
6
8
7
2
1
3
10
11
9
4

Артикул

Название

Примечание

Количество

1

475403R91

FRAME ASSY, main

1шт.

17475R1

BOLT, 5/8-11 x 1-1/2 in. hex-hd mach

4шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 in. sq-nk crg

8шт.

102637

NUT,1/2"-13, G5

8шт.

102639

NUT,5/8"-11, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

472416R2

HOUSING

auger feed

4шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

16шт.

120376

NUT,5/16"-18, G5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

16шт.

3

487632R2

BAR

auger feed

2шт.

21650R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

12шт.

4

472414R1

COUPLING

auger

2шт.

89375H

CLEVIS PIN

PIN, 1/4 x 1-19/32 rod end

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

520177R1

PIN

quick attachable cot

2шт.

5

475401R91

HOPPER

ASSY, order hoper, 479217R91 & two springs, 479124R1

2шт.

432438

PLUG, hopper button

2шт.

5

479217R91

HOPPER ASSY

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

16шт.

6

472429R1

BAR

PAD, hopper reinforcing

4шт.

7

472401R11

LID ASSY, hopper

2шт.

12235R1

PIN, 1/8 x 3/8 C-Z cotter 1/8" x 5/8"

4шт.

8

622125R1

SPRING

hopper hold-down, used only w/hopper, 475401R91

4шт.

8

479124R1

VALVE SPRING

SPRING, hopper hold-down, used only w/hopper, 479217R91

4шт.

9

472403R1

BOLT, lid springs, used only w/hopper, 475401R91

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

472417R1

BEARING

auger

4шт.

11

472400R2

DIVIDER, fertilizer hopper center, as divider into hopper assy 479217R91

1шт.

Выбрано товаров: 33
