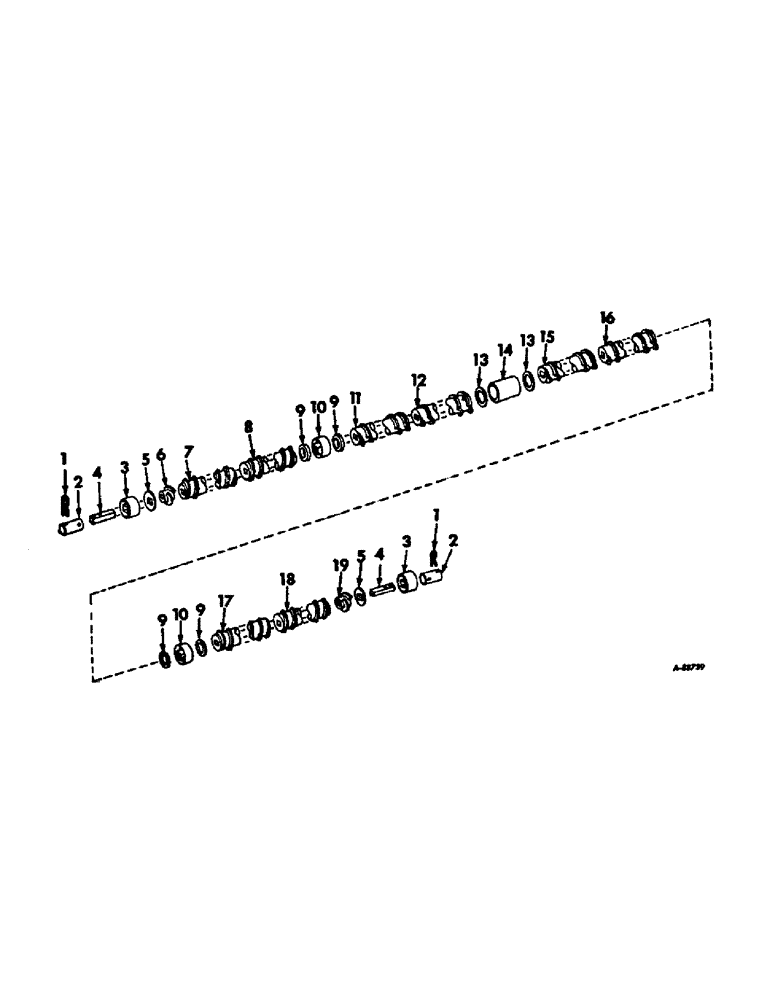

Запчасти Case IH DRY (A-114) - DRY FERTILIZERS, AUGER AND RELATED PARTS, FOR 4 ROW W/715 LB. CAPACITY HOPPERS

1

520177R1

PIN

quick attachable cotter

2шт.

2

472415R1

SPACER

COUPLING, short auger

2шт.

89375H

CLEVIS PIN

PIN, 1/4 x 1-19/32 rod end

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

3

472417R1

BEARING

auger

4шт.

4

484278R2

BAR

auger feed

2шт.

21650R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

8шт.

5

484413R1

WASHER, bearing

2шт.

6

484506R1

ROLLER

auger bearing LH

1шт.

7

472420R1

AUGER

low rate left outer

1шт.

472420R1 8.94" 2.25" 2.12" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

7

472421R1

AUGER

low rate right outer

1шт.

472421R1 8.94" 2.25" 2.12" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

7

472424R1

AUGER

high rate left outer

1шт.

472424R1 8.94'' 2.25" 1.88" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

7

472425R1

AUGER

high rate right outer

1шт.

472425R1 8.94" 2.25" 1.88" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

7

483533R1

AUGER

extra high rate left outer

1шт.

483533R1 8.94" 2.41" 2.25" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

7

483534R1

AUGER

. extra high rate right outer

1шт.

483534R1 8.94" 2.41" 2.25" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

8

472418R1

AUGER

low rate left inner

1шт.

472418R1 8.94" 2.12" 2.00" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

8

472419R1

AUGER

low rate right inner

1шт.

472419R1 8.94" 2.12" 2.00" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

8

472422R1

AUGER

high rate left inner

1шт.

8

472423R1

AUGER

high rate right inner

1шт.

8

472424R1

AUGER

extra high rate left inner

1шт.

472424R1 8.94'' 2.25" 1.88" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

8

472425R1

AUGER

extra high rate right inner

1шт.

472425R1 8.94" 2.25" 1.88" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

9

480100R1

WASHER

housing plug

4шт.

10

484508R1

HUB, inner bearing

2шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16 x 2 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

484284R1

AUGER, low rate LH

1шт.

11

484286R1

AUGER, high rate LH

1шт.

11

488997R1

AUGER

extra high rate LH

1шт.

12

484283R1

AUGER, low rate RH

1шт.

12

484285R1

AUGER, high rate RH

1шт.

12

488998R1

AUGER

extra high rate RH

1шт.

13

21762R1

WASHER

29/32 x 1-3/8 x 10 ga C-Z, for outer augers

2шт.

14

456396R1

SPACER

2шт.

15

484283R1

AUGER, low rate LH

1шт.

15

484284R1

AUGER, low rate RH

1шт.

15

484285R1

AUGER, high rate LH

1шт.

15

484286R1

AUGER, high rate RH

1шт.

15

488998R1

AUGER

extra high rate LH

1шт.

15

488997R1

AUGER

extra high rate RH

1шт.

16

480151R1

AUGER

low rate left inner short

1шт.

480151R1 7.94" 2.11" 2.00" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

16

480152R1

AUGER

low rate right inner short

1шт.

480152R1 7.94" 2.11" 2.00" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

16

480106R1

AUGER

high rate left inner short

1шт.

480106R1 7.94" 2.00" 1.56" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

16

480107R1

AUGER

high rate right inner short

1шт.

480107R1 7.94" 2.00" 1.56" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

16

487033R1

AUGER

extra high rate left inner short

1шт.

16

487032R1

AUGER

extra high rate right inner short

1шт.

17

480151R1

AUGER

low rate left inner short

1шт.

480151R1 7.94" 2.11" 2.00" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

17

480152R1

AUGER

low rate right inner short

1шт.

480152R1 7.94" 2.11" 2.00" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

17

480106R1

AUGER

high rate left inner short

1шт.

480106R1 7.94" 2.00" 1.56" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

17

480107R1

AUGER

high rate right inner short

1шт.

480107R1 7.94" 2.00" 1.56" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

17

487033R1

AUGER

extra high rate left inner short

1шт.

17

487032R1

AUGER

extra high rate right inner short

1шт.

18

488997R1

AUGER

low, high & extra high rate LH

1шт.

18

488998R1

AUGER

low, high & extra high rate RH

1шт.

19

484507R1

ROLLER

auger bearing RH

1шт.
