Запчасти Case IH DRY (A-110) - DRY FERTILIZERS, HOPPER FRAME SUPPORT BRACKETS & BRACES, FOR 715 LB. CAPACITY HOPPERS

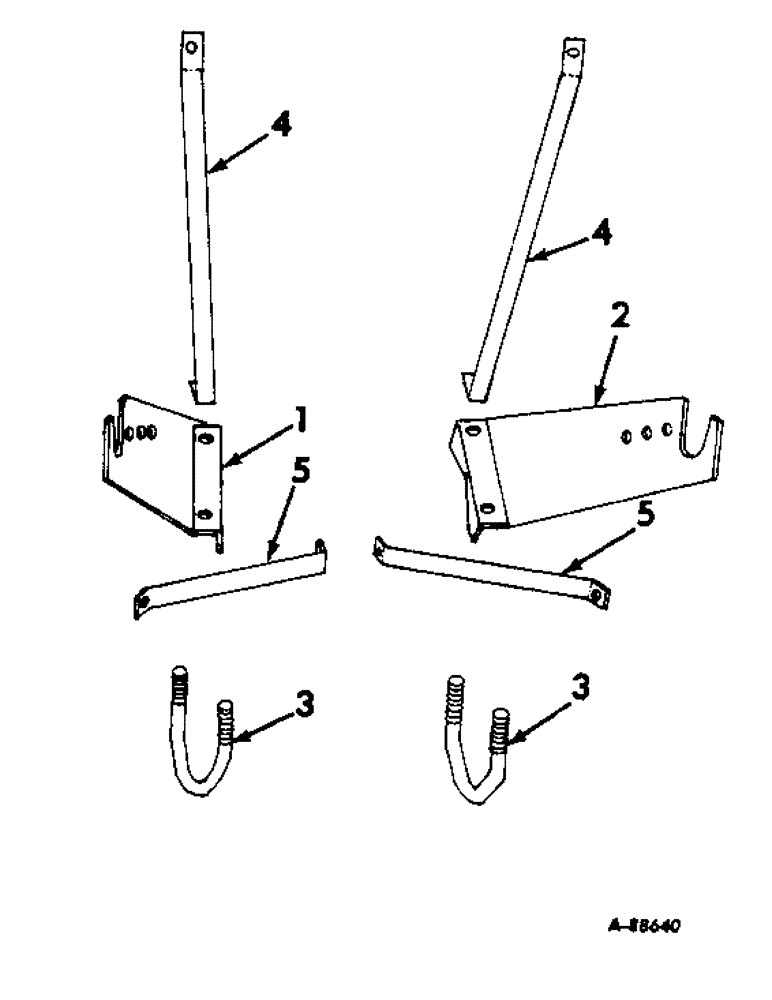

Схема запчастей Case IH DRY - (A-110) - DRY FERTILIZERS, HOPPER FRAME SUPPORT BRACKETS & BRACES, FOR 715 LB. CAPACITY HOPPERS
5
4
3
4
2
3
5
1

Артикул

Название

Примечание

Количество

1

487034R1

SUPPORT, hopper pipe LH

1шт.

2

487035R1

SUPPORT, hopper pipe RH

1шт.

3

475484R1

U-BOLT, hopper pipe support

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

131047

WASHER,7/8"

7/8"

4шт.

4

484244R1

BRACE, hopper

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

475489R2

BRACE, hopper support

2шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 C-Z hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

18821R1

BOLT

5/8 x 1-1/4 C-Z hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

Выбрано товаров: 15
