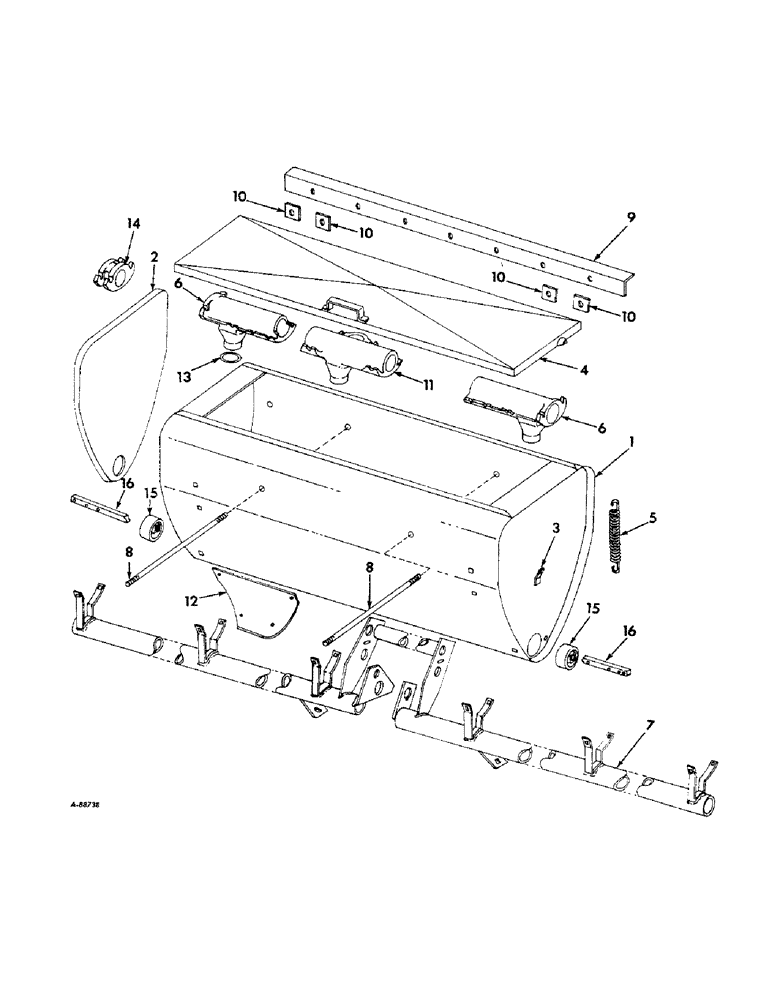

Запчасти Case IH DRY (A-107) - DRY FERTILIZERS, HOPPER AND MAIN FRAME, FOR 715 LB. CAPACITY HOPPERS

1

488239R91

HOPPER ASSY

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 C-Z hex-hd mach

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

2

472400R2

DIVIDER, fertilizer hopper center, 1 per hopper

1шт.

3

624456R1

CLIP, lid spring

4шт.

4

484050R1

COVER ASSY, hopper

2шт.

12235R1

PIN, 1/8 x 3/8 C-Z cotter 1/8" x 5/8"

4шт.

5

479124R1

VALVE SPRING

SPRING, hopper hold down

4шт.

6

472416R2

HOUSING

auger feed

4шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

16шт.

120376

NUT,5/16"-18, G5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

16шт.

7

487039R1

FRAME ASSY, main

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

5/8 x 1-3/4 C-Z hex-hd mach

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

484051R1

ROD, tie

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

9

487042R1

ANGLE, hopper tie

2шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 C-Z hex-hd mach

2шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

2шт.

10

472429R1

BAR

WASHER, hopper reinforcing

8шт.

11

480099R2

HOUSING

auger feed center

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

8шт.

12

484279R1

COVER, hopper opening

4шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

16шт.

120376

NUT,5/16"-18, G5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

16шт.

13

480100R1

WASHER

housing plug, 4 for four row

1шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16 x 2 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

14

(Not used in this application)

1шт.

15

472417R1

BEARING

auger

4шт.

16

484278R2

BAR

auger feed

2шт.

21650R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

16шт.
