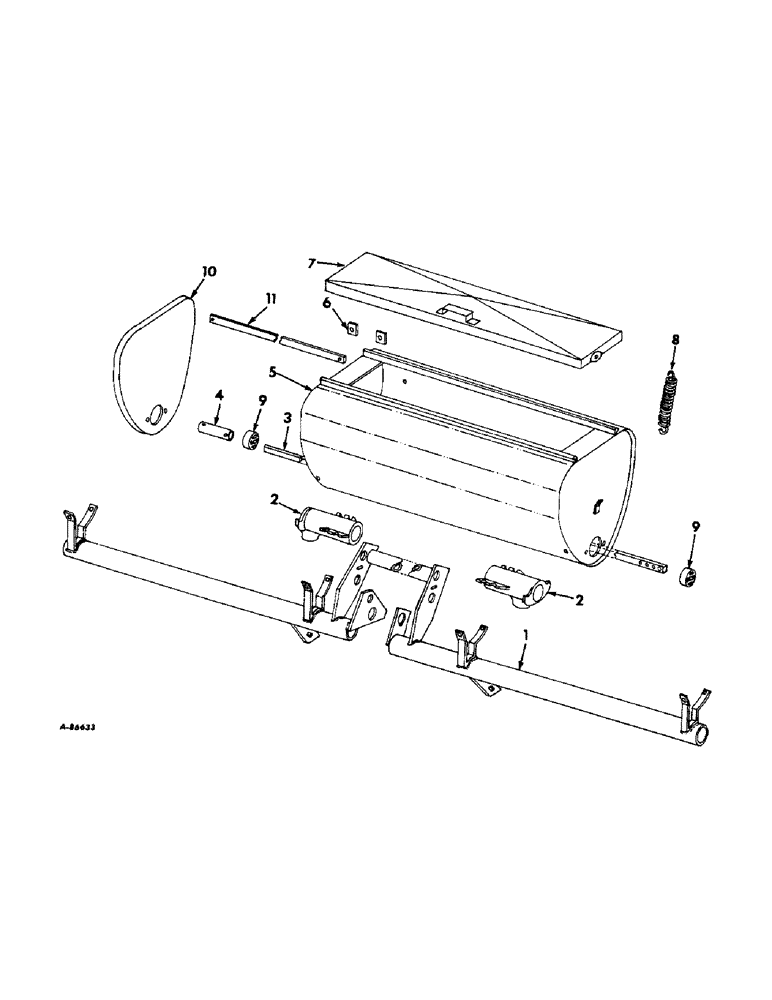

Запчасти Case IH DRY (A-106) - DRY FERTILIZERS, HOPPER AND MAIN FRAME, FOR 500 LB. CAPACITY HOPPERS, FOUR ROW

1

484220R91

FRAME ASSY, main

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 C-Z sq-nk crg

8шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8-11 x 1-1/2 C-Z hex-hd mach

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

472416R2

HOUSING

auger feed

4шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

16шт.

120376

NUT,5/16"-18, G5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

3

487632R2

BAR

auger feed

2шт.

21650R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

12шт.

4

472415R1

SPACER

COUPLING, auger

2шт.

89375H

CLEVIS PIN

PIN, 1/4 x 1-19/32 rod end

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

520177R1

PIN

quick attachable cotter

2шт.

5

479217R91

HOPPER ASSY

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

16шт.

432438

PLUG, hopper button

2шт.

624456R1

CLIP, lid spring

4шт.

6

472403R1

WASHER, hopper reinforcing

2шт.

7

472401R11

LID ASSY, hopper

2шт.

12235R1

PIN, 1/8 x 3/8 C-Z cotter 1/8" x 5/8"

4шт.

8

479124R1

VALVE SPRING

SPRING, hopper hold-down

4шт.

9

472417R1

BEARING

auger

4шт.

10

472400R2

DIVIDER, fertilizer hopper center, 1 per hopper

1шт.

11

484228R1

BAR, tie hopper strap

1шт.
