Запчасти Case IH DRY (A-069) - DRY FERTILIZERS, AUGERS AND RELATED PARTS, FOR TWO ROW

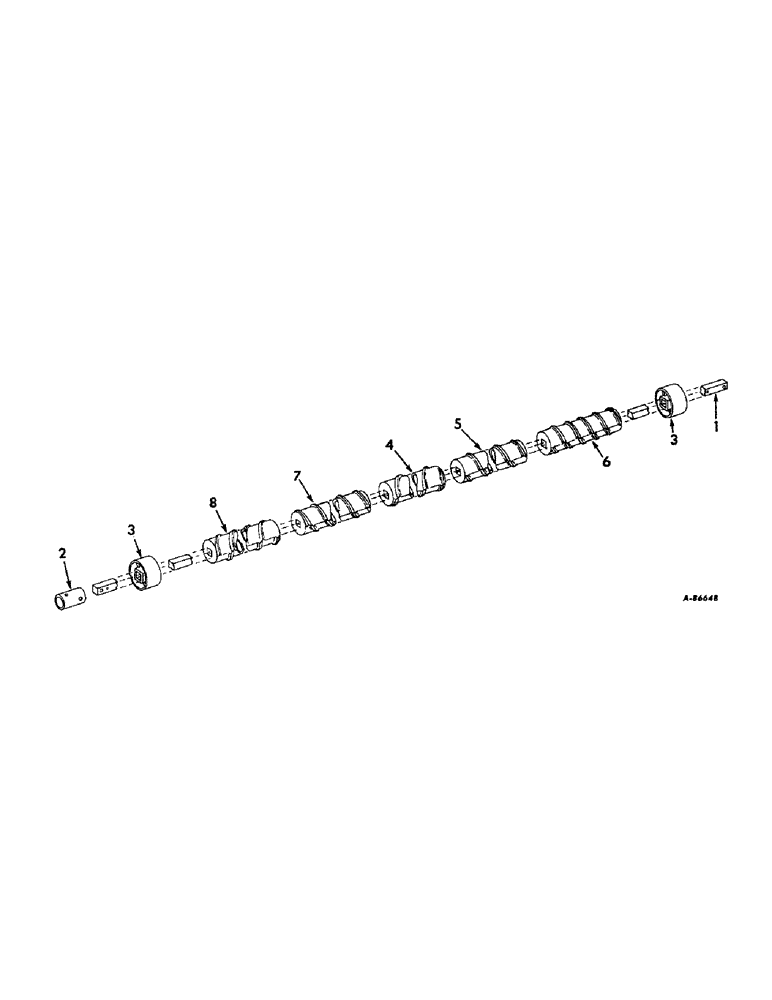

Схема запчастей Case IH DRY - (A-069) - DRY FERTILIZERS, AUGERS AND RELATED PARTS, FOR TWO ROW
6
3
5
2
1
3
7
4
8

Артикул

Название

Примечание

Количество

1

487632R2

BAR

auger feed

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

6шт.

21650R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

1шт.

2

481945R1

SPACER

auger short

1шт.

89375H

CLEVIS PIN

PIN, 1/4 x 1-19/32 C-Z rod end

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

520177R1

PIN

quick attachable cotter

1шт.

3

472417R1

BEARING

auger

2шт.

4

472419R1

AUGER

low rate right inner

1шт.

4

472423R1

AUGER

high rate right inner

1шт.

4

472425R1

AUGER

extra high rate right inner

1шт.

5

472421R1

AUGER

low rate right outer

1шт.

5

472425R1

AUGER

high rate right outer

1шт.

5

483534R1

AUGER

extra high rate right outer

1шт.

21862R1

WASHER

29/32 x 1-3/8 x 10 ga C-Z (or as required)

2шт.

6

(Not used in this application)

1шт.

7

472418R1

AUGER

low rate left inner

1шт.

7

472422R1

AUGER

high rate left inner

1шт.

7

472424R1

AUGER

extra high rate left inner

1шт.

8

472420R1

AUGER

low rate left outer

1шт.

8

472424R1

AUGER

high rate left outer

1шт.

8

483533R1

AUGER

extra high rate left outer

1шт.

21762R1

WASHER

29/32 x 1-3/8 x 10 ga C-Z (or as required)

2шт.

Выбрано товаров: 23
