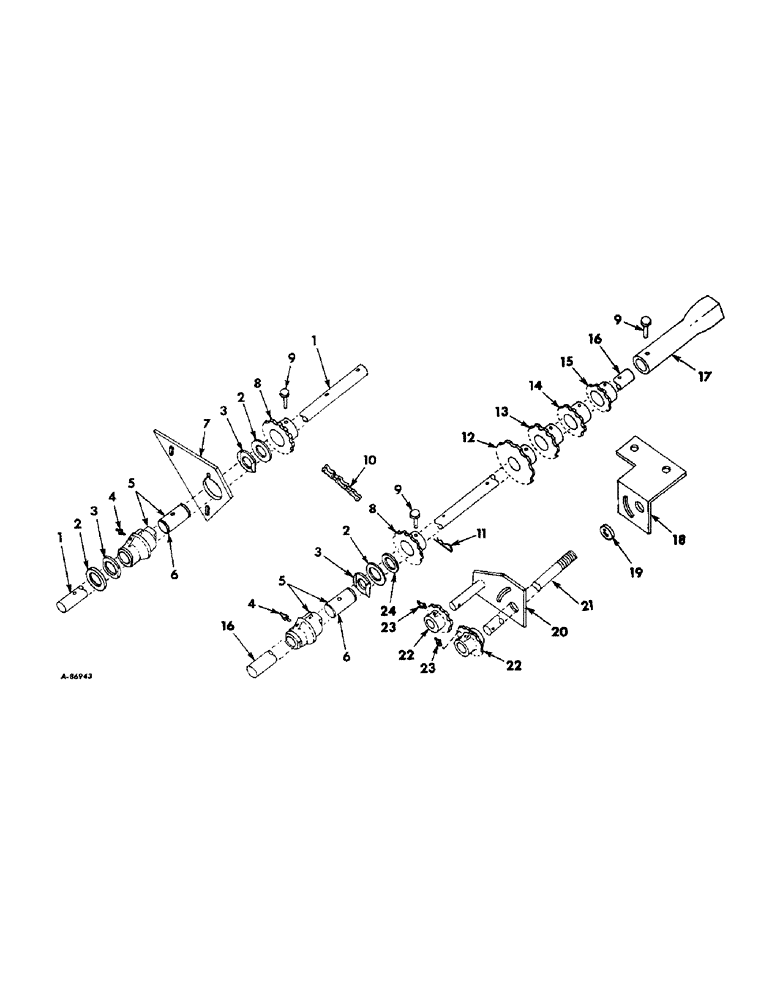

Запчасти Case IH DRY (A-066) - DRY FERTILIZERS, DRIVE UNIT, FOR TWO ROW

1

481939R1

PIN, fertilizer driven

1шт.

2

589937R1

WASHER

wear

3шт.

3

481810R1

WASHER

keyed

3шт.

4

66584D

FITTING

3/16 str drive type lub

2шт.

5

481812R11

BEARING ASSY

ASSY W/BUSHING, drive rod

2шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot

2шт.

21982R1

PIN, 3/16 x 1-1/2 C-Z self-opening cot

2шт.

6

484060R1

BUSHING

bronzed backed

2шт.

7

481937R1

PLATE, drive bearing support

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

8

481942R1

SPROCKET ASSY.

SPROCKET, fertilizer, 12T

2шт.

9

21242R1

HEADED PIN

PIN, 1/4 x 1-3/4 C-Z std hd

3шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot

3шт.

10

CHAIN, fertilizer drive, use 43 links of 1 in. extended pitch agricultural roller chain from a 10 ft roll marked, 569088R91, one, connecting link, 457113R91 and one offset link, 457114R91

1шт.

11

520175R1

CLIP

PIN, quick attachable cotter

1шт.

12

481944R1

SPROCKET ASSY.

SPROCKET, fertilizer, 18T

1шт.

13

481943R1

SPROCKET ASSY.

SPROCKET, fertilizer, 15T

1шт.

14

481941R1

SPROCKET, fertilizer, 9T

1шт.

15

481940R1

SPROCKET, fertilizer, 8T

1шт.

16

481935R1

ROD, fertilizer drive

1шт.

17

481938R1

COUPLING

fertilizer drive

1шт.

18

484801R1

BRACKET, chain tightener

1шт.

19

622567R1

WASHER

BUSHING, chain tightener

1шт.

20

484894R91

BRACKET

ASSY, chain tightener strap

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-operating cot

1шт.

21

472342R1

STUD

idler

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex jam

2шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

22

472344R2

DRIVE SPROCKET

SPROCKET, chain tightener idler, 6T

2шт.

23

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub, used only w/gray iron sprocket, 472344R1

2шт.

24

651239R1

SPRING WASHER,23.02mm ID x 38.1mm OD x 6.35mm Thk

29/32 x 1-1/2 x 1/4

1шт.
