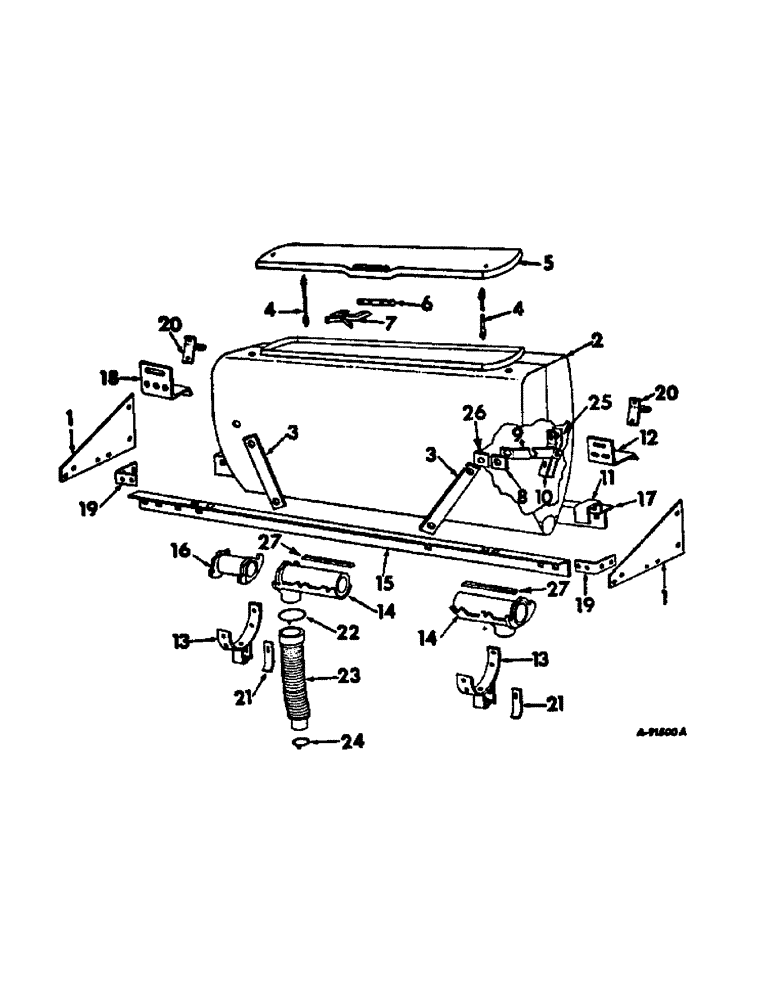

Запчасти Case IH DRY (A-064) - DRY FERTILIZERS, FERTILIZER HOPPERS, SUPPORTS AND HOSES, FOR SIX ROW

1

489018R1

PLATE, support rail

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

12шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

2

483444R11

HOPPER

ASSY, fiberglass

3шт.

3

489117R1

STRIP, lift rod angle

6шт.

4

483455R1

STRAP

lid retainer

6шт.

5

483446R11

COVER

ASSY, hopper

3шт.

483451R1

RIVET

lid retainer

6шт.

6

483454R1

RETAINER

latch

3шт.

483450R1

RIVET

latch retainer

6шт.

7

483445R1

LATCH

cover

3шт.

8

472429R1

BAR

PAD, hopper

6шт.

9

492827R1

BRACE, hopper LH, also order pad, 492829R1 & pad, 492830R1

3шт.

9

492828R1

BRACE, hopper RH, also order pad, 492829R1 & pad, 492830R1

3шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

10

472407R1

REINFORCEMENT, hopper

6шт.

11

545298R1

GUIDE, marker chain

5шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 C-Z sq-nk crg

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

12

472405R1

HINGE, hopper frame center

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

13

489012R1

SUPPORT ASSY, hopper

6шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

24шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

24шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.

460908R1

WASHER

17/32 x 1-1/2 x 1 ga C-Z

24шт.

14

483441R2

HOUSING

auger feed

6шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

24шт.

120376

NUT,5/16"-18, G5

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

24шт.

15

489016R1

ANGLE, lift rod inner

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

16

(Not used in this application)

1шт.

17

489015R1

ANGLE, lift rod outer

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

18

472404R1

HINGE, hopper frame

4шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

19

489017R1

BRACKET, support rail

6шт.

20

489006R1

BRACKET ASSY, hinge

6шт.

21943R1

PIN, 5/16 x 1-3/8 C-Z std-hd

6шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot

6шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

6шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

21

472410R1

RETAINER, tank

6шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 C-Z sq-nk crg

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

6шт.

22

860200R1

HOSE CLAMP,#36, 2 1/4", Spring

CLAMP, no. 36 type E hose

6шт.

23

492853R91

SET

PACKAGE, fertilizer hose, 30 corrugations, consists of (1) clamp 860200R1, (1) clip 626441R1, (1) hose 472426R2 (NSS), (1) pin 610784R1

6шт.

24

626441R1

CLIP

hose lower

6шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick attachable cot

6шт.

25

492829R1

PAD, hopper reinforcing long

6шт.

26

492830R1

PAD, hopper reinforcing short

6шт.

27

SEAL, housing and hopper, 1/4 x 3/8 x 6 in. long, use 6 in. from 33 ft roll marked 541206R1

6шт.
