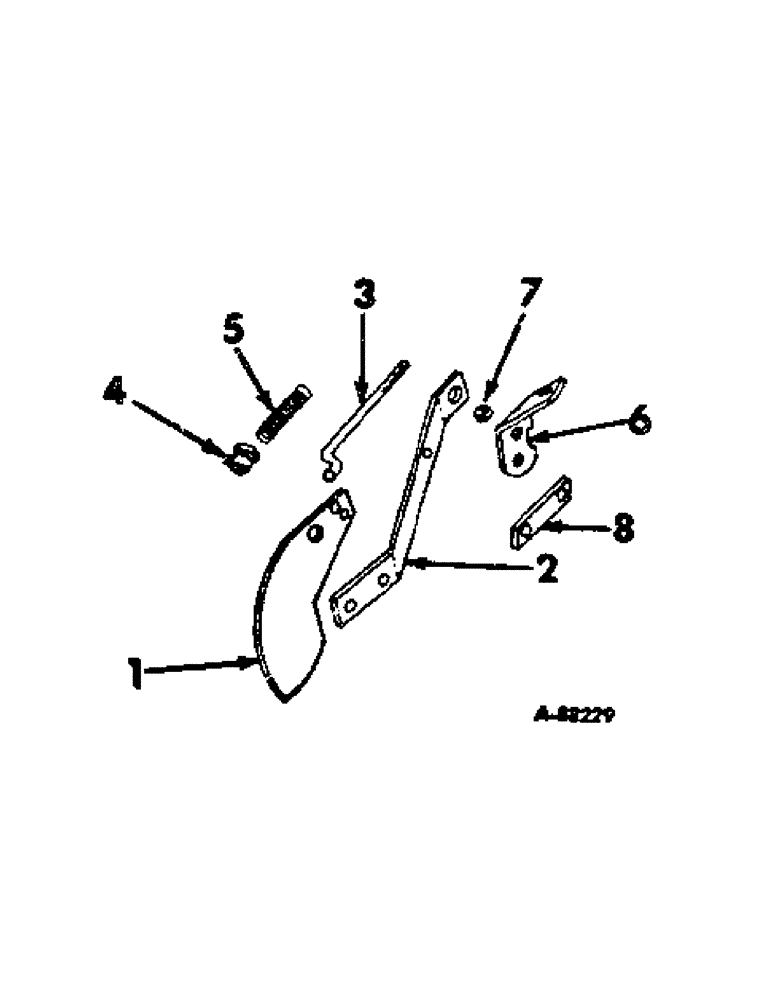

Запчасти Case IH DRY (A-074) - DRY FERTILIZERS, BLADE COVERING ATTACHMENT

1

621426R2

BLADE

wide covering LH

1шт.

1

621427R2

BLADE

wide covering RH

1шт.

120376

NUT,5/16"-18, G5

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

625344R1

ARM, covering blade

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

477589R1

WASHER

13/32 x 1-1/2 x 11 ga C-Z

2шт.

3

625341R1

ROD, coverer adj

2шт.

21630R1

COTTER PIN

PIN, 1/8 x 1 C-Z self-opening cot

2шт.

4

517951R11

WEAR PAD

COLLAR W/SET SCREW, ajd rod

2шт.

22214R1

SCREW, 5/16-18 x 3/8 C-Z sq-hd cup-pt set

2шт.

5

2833

SPRING

adj rod

2шт.

6

625342R1

BRACKET, arm LH

1шт.

6

625343R1

BRACKET, arm RH

1шт.

7

461749R1

BUSHING, bracket arm

2шт.

8

486880R1

BAR, coverer spacer

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 C-Z hex-hd cap

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.
