Запчасти Case IH DRY (A-091) - DRY FERTILIZERS, HOPPER FRAME SUPPORT BRACKETS & BRACES, FOR 500 LB. CAPACITY HOPPERS, FOUR ROW

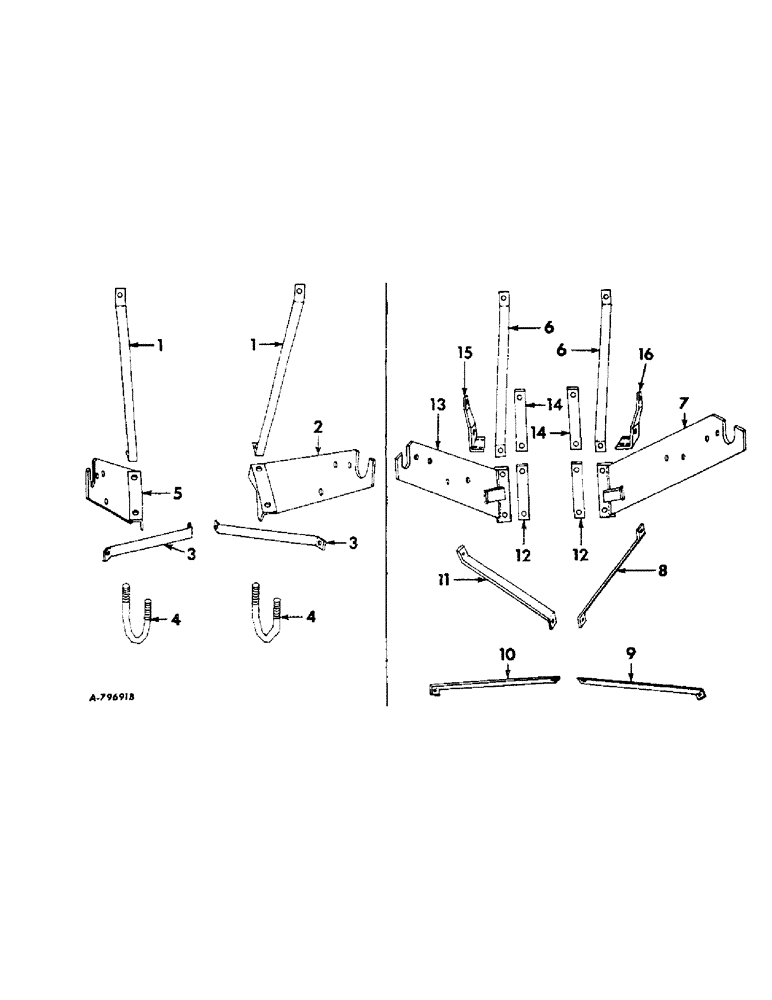

Схема запчастей Case IH DRY - (A-091) - DRY FERTILIZERS, HOPPER FRAME SUPPORT BRACKETS & BRACES, FOR 500 LB. CAPACITY HOPPERS, FOUR ROW
6
12
8
4
11
6
15
1
14
7
2
1
4
16
13
3
12
5
14
3
9
10

Артикул

Название

Примечание

Количество

1

484244R1

BRACE, hopper, for use with Farmall 706, 806, and 1206 tractors

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

484243R11

SUPPORT, RH hopper pipe, for use with 706, 806 and 1206 tractors

1шт.

3

475489R2

BRACE, hopper support, for use with Farmall 706, 806 and 1206 tractors

2шт.

18821R1

BOLT

5/8 x 1-1/4 C-Z hex-hd mach

2шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 C-Z hex-hd mach

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

475484R1

U-BOLT, hopper pipe support, for use with Farmall 706, 806 and 1206 tractors

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

NLS

NO LONGER SERVICED

7/8"

4шт.

5

484242R11

SUPPORT, LH hopper pipe, for use with Farmall 706, 806 and 1206 tractors

1шт.

6

484251R1

BRACE, hopper, for use with international 504 tractors

2шт.

6

475477R1

BRACE, hopper, for use with Farmall 460, 504, 560 and 656 tractors

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

484248R91

SUPPORT, RH hopper pipe, for use with international 504 tractor

1шт.

7

475473R92

SUPPORT, RH hopper pipe, for use with Farmall 460, 504, 560 and 656 tractors

1шт.

8

484252R1

BRACE, hopper support, for use with international 504 tractor

2шт.

8

484245R1

BRACE, hopper support, for use with Farmall 656 tractor

2шт.

8

478350R1

BRACE, hopper support RH, for use with Farmall 504 tractor

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8 x 2 C-Z hex-hd mach

1шт.

18835R1

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 2

3/4 x 1-1/4 C-Z hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

9

478254R1

BRACE, hopper support RH, for use with Farmall 460 tractor

1шт.

9

475487R1

BRACE, hopper support RH, for use with Farmall 560 tractor

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 C-Z hex-hd mach

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

478253R1

BRACE, hopper support LH, for use with Farmall 460 tractor

1шт.

10

475486R1

BRACE, hopper support LH, for use with Farmall 560 tractor

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 C-Z hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

478349R2

BRACE, hopper support LH, for use with Farmall 504 tractor

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8 x 2 C-Z hex-hd mach

1шт.

18835R1

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 2

3/4 x 1-1/4 C-Z hex-hd mach

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

12

475478R1

CLIP, locating, for use with Farmall 460, 504, 560, 656 and international 504 tractors

2шт.

13

484247R91

SUPPORT, LH hopper pipe, for use with international 504 tractor

1шт.

13

475472R92

SUPPORT, LH hopper pipe, for use with Farmall 460, 504, 560 and 656 tractors

1шт.

14

520356R1

STRAP, hopper pipe support, for use with Farmall 460, 504, 560, 656 and international 504 tractors

2шт.

20349R1

BOLT, 7/8-9 x 9 C-Z hex-hd mach

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

131047

WASHER,7/8"

7/8"

4шт.

15

484255R1

SUPPORT, left fender, for use with international 504 tractor

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

16

484256R1

SUPPORT, right fender, for use with international 504 tractor

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.
