Запчасти Case IH DRY (A-090) - DRY FERTILIZERS, FERTILIZER HOSE, CLAMPS, BOOT ATTACHING BAR & BRACKETS, PRESSURE ROD & CONNECTIONS

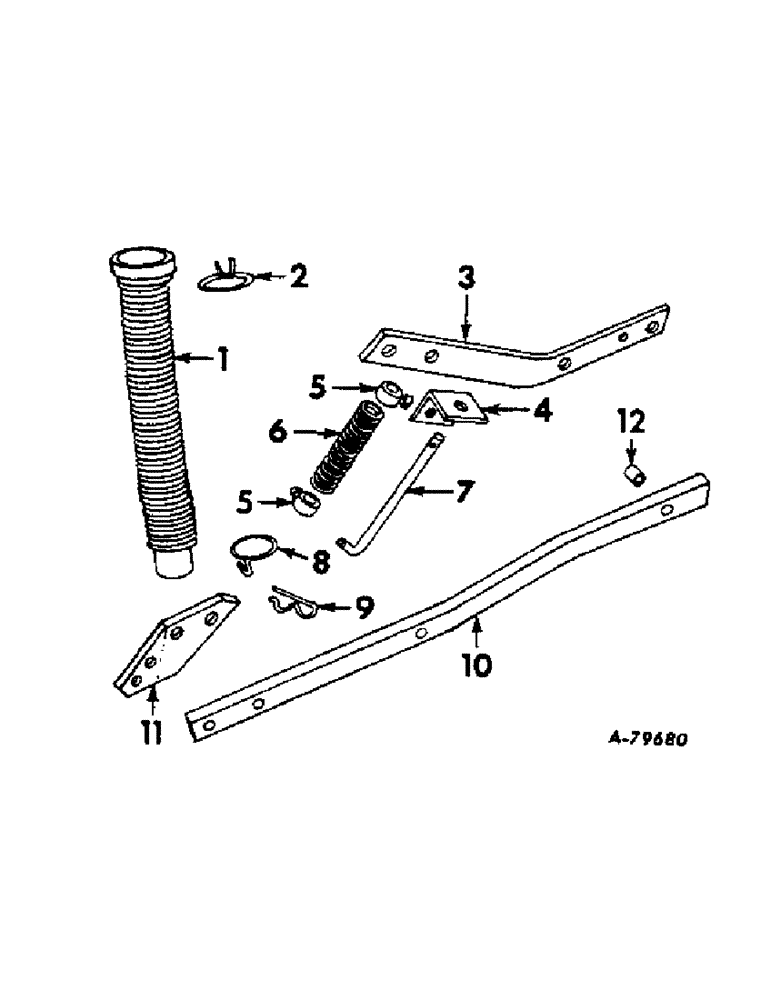

Схема запчастей Case IH DRY - (A-090) - DRY FERTILIZERS, FERTILIZER HOSE, CLAMPS, BOOT ATTACHING BAR & BRACKETS, PRESSURE ROD & CONNECTIONS
1
12
10
5
8
6
7
5
2
3
4
9
11

Артикул

Название

Примечание

Количество

1

492850R91

PACKAGE, fertilizer hose, 1 per row, 101 corrugations, consists of (1) clamp 860200R1, (1) clip 626441R1, (1) hose 475472R2 (NSS), (1) pin 610784R1

1шт.

2

860200R1

HOSE CLAMP,#36, 2 1/4", Spring

CLAMP, hose upper, 1 per row

1шт.

3

475412R1

SUPPORT, pressure rod

1шт.

18815R1

BOLT,Hex, 1/2"-13 x 5", G2

1/2-13 x 5 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

475413R1

GUIDE, pressure rod

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod

2шт.

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

SCREW, 1/2-13 x 5/8 C-Z sq-hd cup-pt set

2шт.

6

PO32

SPRING, pressure rod

1шт.

7

475411R1

ROD, pressure spring

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot

2шт.

8

626441R1

CLIP

hose lower

1шт.

9

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick-attachable cotter

1шт.

10

475410R1

BAR, boot attaching

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2-13 x 2 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

11

467224R1

BRACKET, LH boot attaching

1шт.

11

467231R1

BRACKET, RH boot attaching

1шт.

12

475426R1

SPACER, drawbar

2шт.

Выбрано товаров: 24
