Запчасти Case IH DRY (A-140) - DRY FERTILIZERS, DRY FERTILIZER HOPPER DRIVE, FOR MACHINES W/HEXAGON DRIVE ROD

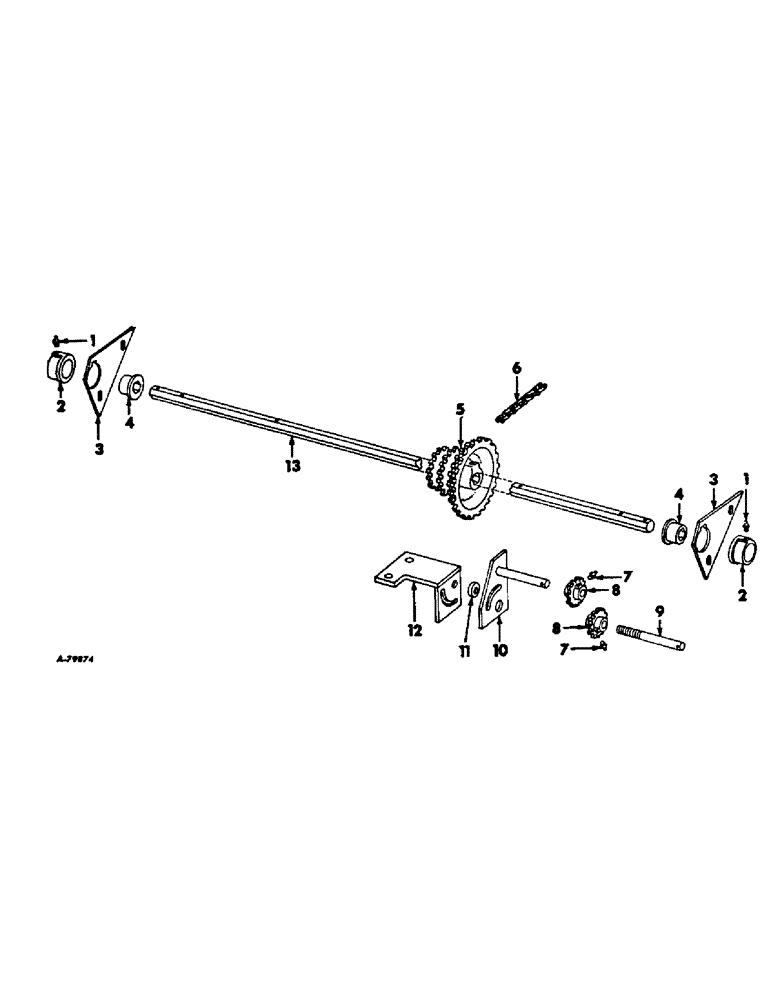

Схема запчастей Case IH DRY - (A-140) - DRY FERTILIZERS, DRY FERTILIZER HOPPER DRIVE, FOR MACHINES W/HEXAGON DRIVE ROD
9
7
5
8
4
2
3
8
1
10
1
4
2
6
11
3
12
7
13

Артикул

Название

Примечание

Количество

1

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF2 str lub

2шт.

2

472431R1

COLLAR

BEARING, drive shaft

2шт.

3

472430R1

SUPPORT

drive bearing

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

4шт.

4

472432R1

BUSHING

fertilizer drive rod

2шт.

5

472435R1

SPROCKET ASSY.

SPROCKET, driven, 8, 9, 15 & 18T

1шт.

102893

SCREW, 3/8-16 x 5/8 sq-hd cup-pt set

1шт.

6

CHAIN, fertilizer drive, use 43 links 1 in. extended pitch agricultural roller chain marked 569088R91, one connecting link, 457113R91 and one offset link, 457114R91

1шт.

7

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub, used only w/gray iron sprocket, 472344R1

2шт.

8

472344R2

DRIVE SPROCKET

SPROCKET, chain tightener idler, 6T

2шт.

9

472342R1

STUD

idler

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex jam

2шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

10

472438R91

BAR

STRAP ASSEMBLY, chain tightener

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 C-Z short sq-nk

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

11

622567R1

WASHER

BUSHING, chain tightener

1шт.

12

472437R1

SUPPORT

BRACKET, chain tightener

1шт.

13

480097R1

ROD

fertilizer drive

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

3шт.

Выбрано товаров: 27
