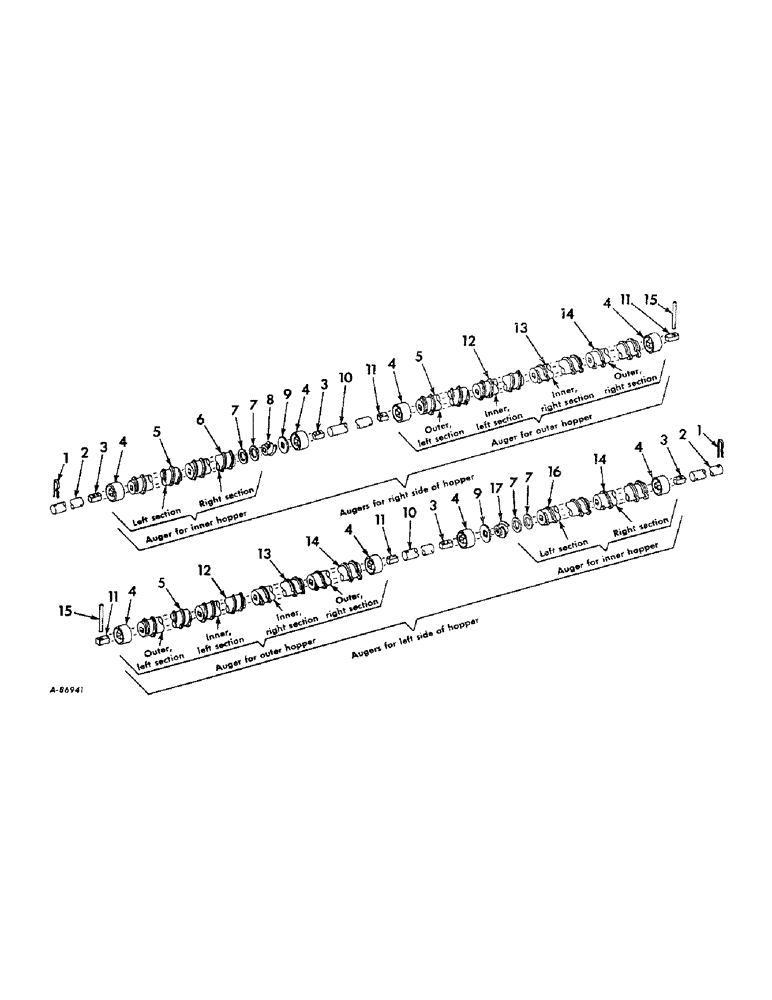

Запчасти Case IH DRY (A-023) - DRY FERTILIZERS, AUGERS AND RELATED PARTS, FOR SIX ROW METAL HOPPERS

1

520177R1

PIN

quick attachable cotter

2шт.

2

484395R1

TUBE, coupling inner

2шт.

89375H

CLEVIS PIN

PIN, 1/4 x 1-19/32 C-Z rod end

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

3

484412R1

BAR, auger feed shaft short

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

8шт.

4

472417R1

BEARING

auger

8шт.

5

472420R1

AUGER

low rate left outer

3шт.

472420R1 8.94" 2.25" 2.12" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

5

472424R1

AUGER

high rate left outer

3шт.

472424R1 8.94'' 2.25" 1.88" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

5

483533R1

AUGER

extra high rate left outer

3шт.

483533R1 8.94" 2.41" 2.25" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

6

480152R1

AUGER

low rate right short

1шт.

480152R1 7.94" 2.11" 2.00" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

6

480107R1

AUGER

high rate right short

1шт.

480107R1 7.94" 2.00" 1.56" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

6

487032R1

AUGER

extra high rate right short

1шт.

7

21762R1

WASHER

29/32 x 1-3/8 x 10 ga C-Z

12шт.

8

484507R1

ROLLER

auger bearing RH

1шт.

9

484413R1

WASHER, auger

2шт.

10

484396R1

TUBE, coupling outer

2шт.

89375H

CLEVIS PIN

PIN, 1/4 x 1-19/32 C-Z rod end

4шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

4шт.

11

487632R2

BAR

auger feed

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

12шт.

12

472418R1

AUGER

low rate left inner

2шт.

472418R1 8.94" 2.12" 2.00" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

12

472422R1

AUGER

high rate left inner

2шт.

12

472424R1

AUGER

extra high rate left inner

2шт.

472424R1 8.94'' 2.25" 1.88" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

13

472419R1

AUGER

low rate right inner

2шт.

472419R1 8.94" 2.12" 2.00" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

13

472423R1

AUGER

high rate right inner

2шт.

13

472425R1

AUGER

extra high rate right inner

2шт.

472425R1 8.94" 2.25" 1.88" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

14

472421R1

AUGER

low rate right outer

3шт.

472421R1 8.94" 2.25" 2.12" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

14

472425R1

AUGER

high rate right outer

3шт.

472425R1 8.94" 2.25" 1.88" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

14

483534R1

AUGER

extra high rate right outer

3шт.

483534R1 8.94" 2.41" 2.25" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

15

21650R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

2шт.

16

480151R1

AUGER

low rate left short

1шт.

480151R1 7.94" 2.11" 2.00" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

16

480106R1

AUGER

high rate left short

1шт.

480106R1 7.94" 2.00" 1.56" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

16

487033R1

AUGER

extra high rate left short

1шт.

17

484506R1

ROLLER

auger bearing LH

1шт.
