Запчасти Case IH DRY (A-014) - DRY FERTILIZERS, METAL HOPPERS, HOSES AND SUPPORTS, FOR SIX ROW

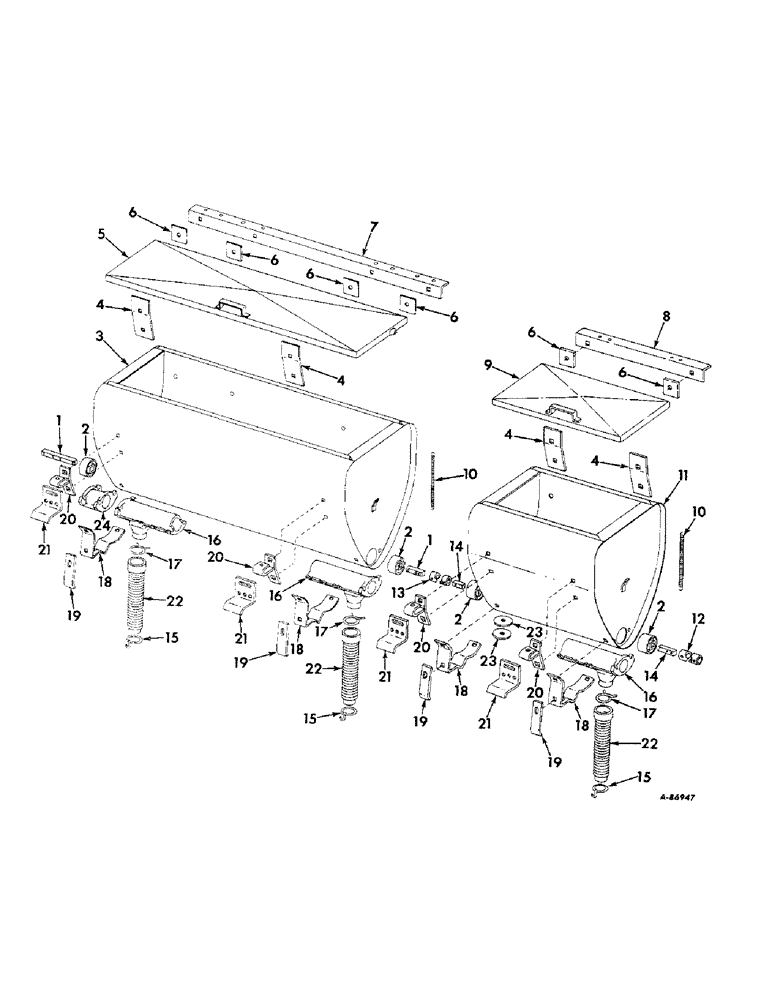

Схема запчастей Case IH DRY - (A-014) - DRY FERTILIZERS, METAL HOPPERS, HOSES AND SUPPORTS, FOR SIX ROW
2
14
1
14
17
21
15
22
21
20
16
1
12
8
19
15
6
9
21
6
18
2
5
20
23
6
15
19
18
23
16
13
20
6
22
16
4
18
4
17
6
19
18
3
22
24
20
21
7
17
6
19
2
11
10
2
10
4
4

Артикул

Название

Примечание

Количество

1

487632R2

BAR

auger feed

2шт.

2

472417R1

BEARING

auger

8шт.

3

479179R93

HOPPER

ASSY

2шт.

472400R2

DIVIDER, hopper, used as center divider for field application

2шт.

4

472407R1

REINFORCEMENT, hopper

8шт.

5

472401R11

LID ASSY, hopper

2шт.

12235R1

PIN, 1/8 x 3/8 C-Z cotter 1/8" x 5/8"

8шт.

6

472429R1

BAR

PAD, hopper

12шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

7

484409R2

ANGLE, lift rod outer

2шт.

8

484407R2

ANGLE, lift rod inner

2шт.

9

484417R11

COVER ASSY, auger hopper lid

2шт.

10

479124R1

VALVE SPRING

SPRING, hopper hold-down

8шт.

11

484415R91

HOPPER ASSY, auger small

2шт.

472400R2

DIVIDER, hopper, used as center divider for field application

1шт.

12

484395R1

TUBE, coupling inner

2шт.

13

484396R1

TUBE, coupling outer

2шт.

14

484412R1

BAR, auger feed shaft short

2шт.

15

481967R1

CLIP

hose lower, for runner opener

6шт.

19428R1

BOLT, 5/16 x 5/8 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

6шт.

15

626441R1

CLIP

hose lower, for double disk opener

6шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick attachable cotter

6шт.

16

472416R2

HOUSING

auger feed

8шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

32шт.

120376

NUT,5/16"-18, G5

32шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

32шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

32шт.

17

860200R1

HOSE CLAMP,#36, 2 1/4", Spring

CLAMP, auger hose upper

6шт.

18

472409R1

BOLSTER

SUPPORT, hopper lower

8шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

19

472410R1

RETAINER, tank

8шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

8шт.

20

484388R91

BRACKET ASSY, hinge

8шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

21

472404R1

HINGE, hopper frame inner

8шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

26шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

26шт.

120384

WASHER,1/2"

LOCK, 1/2"

26шт.

22094R1

PIN

1/4 x 1-3/8 C-Z std-hd

8шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot

8шт.

22

492853R91

SET

PACKAGE, fertilizer hose, 30 corrugations, double disk opener, consists of (1) clamp 860200R1, (1) clip 626441R1, (1) hose 472426R2 (NSS), (1) pin 610784R1

1шт.

22

492852R91

TUBE

PACKAGE, fertilizer hose, 43 corrugations, runner opener, consists of (1) bolt 19428R1, (1) clamp 860200R1, (1) clip 481967R1, (1) hose 482578R1 (NSS), (1) nut 120376, (1) washer 120214, (1) washer 619855R1

1шт.

23

480100R1

WASHER

housing plug

4шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16-18 x 2 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

24

(Not used in this application)

1шт.

Выбрано товаров: 59
