Запчасти Case IH DRY (A-024) - DRY FERTILIZERS, FERTILIZER DOUBLE DISK OPENER

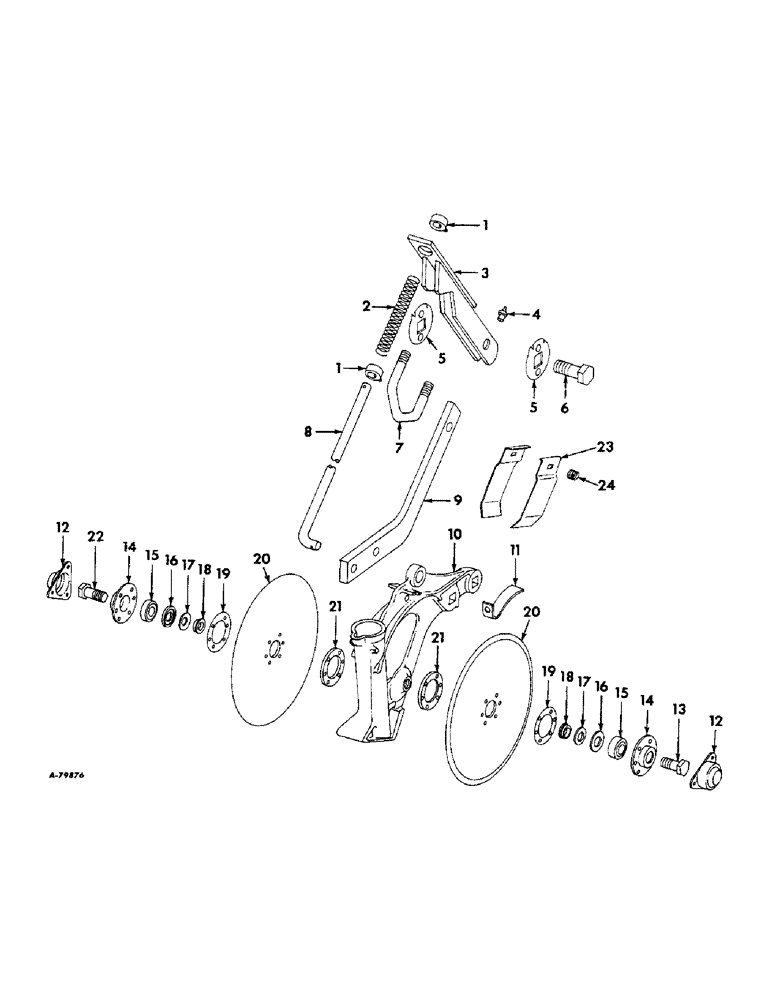

Схема запчастей Case IH DRY - (A-024) - DRY FERTILIZERS, FERTILIZER DOUBLE DISK OPENER
5
18
20
3
7
12
13
4
15
19
23
14
21
11
14
9
12
20
21
16
17
5
24
16
6
19
1
2
15
18
1
10
8
17
22

Артикул

Название

Примечание

Количество

1

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, lift rod

2шт.

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

SCREW, 1/2 x 5/8 C-Z sq-hd cup-pt set

2шт.

2

26AS

SPRING

lift rod pressure

1шт.

3

472390R92

BRACKET ASSEMBLY, lift arm

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 str drive type lub

1шт.

5

486998R1

WASHER,20.63mm ID x 76.2mm OD x 1.52mm Thk

drawbar

2шт.

6

472396R1

BOLT,Hex, 3/4" - 10 x 2.24"

drawbar pivot

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

7

484386R1

BOLT,5/8" - 11 x 6.1"

U-BOLT, lift arm bracket

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

8

472397R1

ROD

lift

1шт.

21829R1

COTTER PIN,3/16" x 1 1/8"

3/16" x 1 1/8"

2шт.

589068R1

WASHER

21/32 x 1-1/4 in. x 11 ga C-Z

1шт.

9

472395R1

BAR, fertilizer draw

1шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2-13 x 2 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

472388R2

BOOT

double disk fertilizer

1шт.

11

472389R1

GUARD

stone

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 C-Z hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

464483R1

CYLINDER END CAP

CAP, bearing housing

2шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/16 C-Z hex-hd cap

6шт.

13

464481R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", LH

BOLT, disk bearing, LH thread

1шт.

14

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

HOUSING, disk bearing

2шт.

180015

SCREW, 1/4-20 x 7/16 C-Z hex-hd cap

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

15

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ball

2шт.

16

602994R1

FLANGE

2шт.

17

464628R1

SEAL

dirt

2шт.

18

602988R1

SPACER

seal retainer

2шт.

19

602992R1

GASKET

disk

2шт.

20

524676R1

DISK HARROW

DISK, opener

2шт.

21

464480R1

WASHER

WASHER, reinforcing

2шт.

22

464482R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", RH

BOLT, disk bearing, RH thread

1шт.

23

601291R1

SCRAPER

outside

2шт.

15219R1

BOLT, 5/16-18 x 4-1/2 sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

10шт.

619855R1

WASHER

11/32 x 3/4 in. x 16 ga C-Z

1шт.

24

NA62774

SPRING

outside scraper

1шт.

Выбрано товаров: 42
