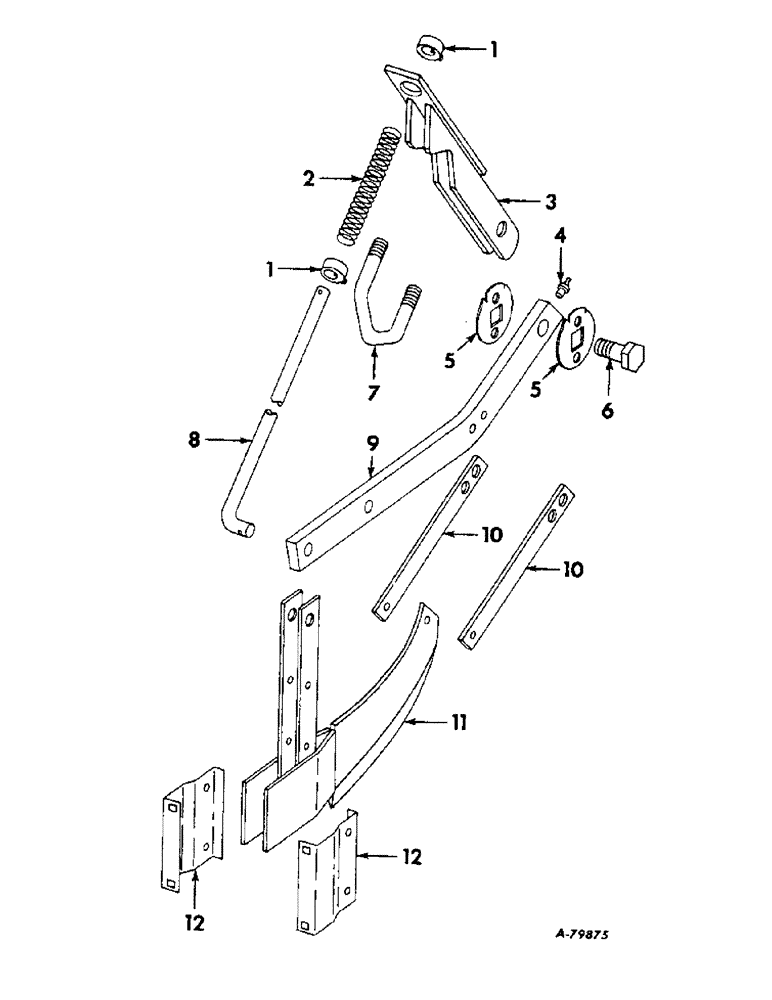

Запчасти Case IH DRY (A-009) - DRY FERTILIZERS, FERTILIZER RUNNER OPENER / PRODUCT GRAPHICS
№
Артикул
Название
Примечание
Количество
1
516595R11
COLLAR,16.67mm ID x 28.5mm OD x 19mm L
COLLAR W/SET SCREW, lift rod
2шт.
21803R1
SET SCREW,1/2" - 13 x 5/8", Steel
SCREW, 1/2 x 5/8 C-Z sq-hd cup-pt set
2шт.
2
26AS
SPRING
lift rod pressure
1шт.
3
472390R92
BRACKET ASSEMBLY, lift arm
1шт.
4
125617
LUBE NIPPLE,3/16" x .61 lg, Drive
FITTING, 3/16 str drive type lub
1шт.
5
486998R1
WASHER,20.63mm ID x 76.2mm OD x 1.52mm Thk
drawbar
2шт.
6
472396R1
BOLT,Hex, 3/4" - 10 x 2.24"
drawbar pivot
1шт.
426897
JAM NUT,Jam, 3/4"-10, G5
3/4-10 C-Z hex jam
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
7
484386R1
BOLT,5/8" - 11 x 6.1"
U-BOLT, lift arm bracket
1шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8-11 C-Z hex
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
8
472397R1
ROD
lift
1шт.
108368
PIN, 3/16 x 1-1/8 in. cotter
2шт.
589068R1
WASHER
21/32 x 1-1/4 x 11 ga C-Z
1шт.
9
477053R1
BAR, runner opener draw
1шт.
18497R1
BOLT,Hex, 1/2"-13 x 1 3/4", G2
1/2-13 x 1-3/4 C-Z hex-hd mach
1шт.
18823R1
BOLT,Hex, 5/8"-11 x 2", G2
5/8-11 x 2 C-Z hex-hd mach
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
10
477051R1
BRACE, runner
2шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8-16 x 1 C-Z hex-hd mach
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
11
477047R91
OPENER ASSEMBLY, runner
1шт.
12
477052R1
SPOUT, DISCHARGE
SPOUT, runner
2шт.
19428R1
BOLT, 5/16-18 x 5/8 C-Z sq-nk crg
1шт.
18765R1
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2
5/16-18 x 1-1/2 C-Z hex-hd mach
2шт.
120376
NUT,5/16"-18, G5
3шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
547494R92
DECAL
PACKAGE, IH trademark product graphics
1шт.
547496R92
DECAL
PACKAGE, international product graphics
1шт.
Выбрано товаров: 34
