Запчасти Case IH DRY (A-132) - DRY FERTILIZERS, COVERING DISK ATTACHMENT

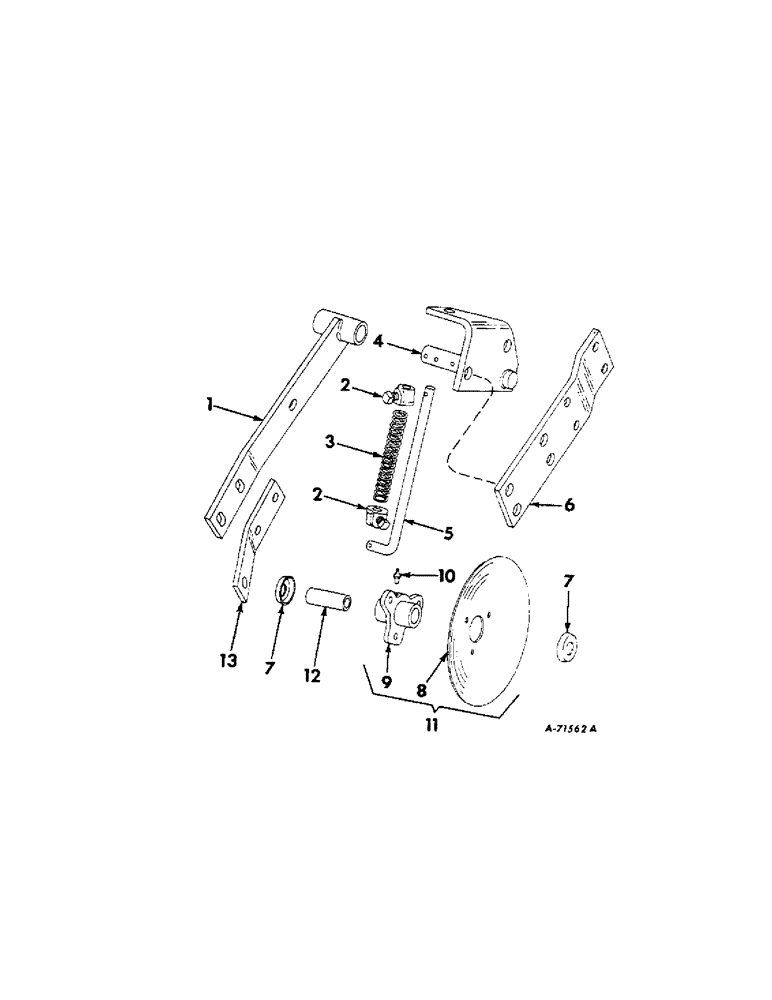

Схема запчастей Case IH DRY - (A-132) - DRY FERTILIZERS, COVERING DISK ATTACHMENT
11
3
6
12
13
2
9
10
4
2
7
1
8
7
5

Артикул

Название

Примечание

Количество

1

464450R11

ARM, covering blade

1шт.

2

PO2593X

COLLAR

W/SET SCREW, set

1шт.

102881

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16 x 1/2 in. cup-pt sq-hd set

1шт.

3

2833

SPRING

pressure

1шт.

4

464452R91

COVERER, bracket left

1шт.

4

464453R91

COVERER, bracket right

1шт.

PIN, 5/32 x 1-1/2 in. cotter

2шт.

5

464460R1

ROD

pressure

1шт.

PIN, 1/8 x 3/4 in. cotter

2шт.

6

464459R1

PLATE, adapting

1шт.

BOLT W/NUT, 3/8 x 1-1/2 in. crg

1шт.

BOLT W/NUT, 3/8 x 5-3/4 in. mach

1шт.

BOLT W/NUT, 1/2 x 1-1/4 in. mach

2шт.

WASHER, 3/8 in. lock

2шт.

WASHER, 1/2 in. lock

2шт.

7

517957R1

WASHER

BAND, sand

1шт.

8

623128R1

DISC

DISK, 7 in.

1шт.

9

517948R21

DISC

HUB W/FITTING, disk

1шт.

10

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive type lubrication

1шт.

11

623128R11

DISC

DISK W/HUB

1шт.

RIVET, 3/16 x 11/16 in. rd-hd

3шт.

12

517958R2

BUSHING

disk hub

1шт.

BOLT, 7/16 x 2-1/4 in. mach

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16 in. lock

1шт.

13

467225R1

ADAPTER, covering disk LH

1шт.

13

467226R1

ADAPTER, covering disk RH

1шт.

BOLT W/NUT, 5/8 x 1 in. mach

2шт.

WASHER, 5/8 in. lock

2шт.

Выбрано товаров: 28
