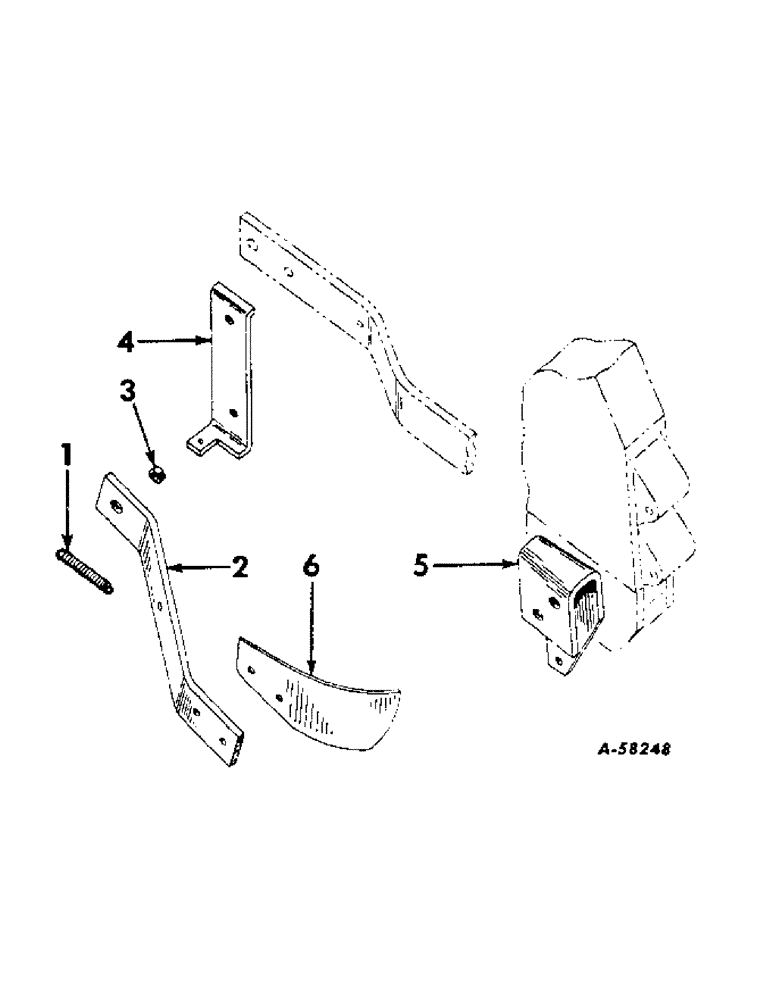

Запчасти Case IH DRY (A-131) - DRY FERTILIZERS, DISK FERTILIZER APPLICATOR, FOR DRILL PLANTING ONLY WHEN DUAL PRESS WHEELS ARE USED

626502R91

COVERSION PACKAGE, for disk fertilizer for dual press wheels, one set used for two row planters, two sets used for four four-row planters, three sets used for six-row planters, consists of all parts listed below

1шт.

1

622152R1

SPRING

extension, 25 coils

2шт.

2

626503R1

ARM, covering blade

2шт.

BOLT W/NUT, 3/8 x 1-1/4 in. hex-hd mach

2шт.

PIN, 1/8 x 1-1/8 in. cotter

2шт.

WASHER, 3/8 in. lock

2шт.

WASHER, 11/32 x 1-1/2 in. x 11 ga

2шт.

3

461749R1

BUSHING, arm pivot

1шт.

4

626504R1

BRACKET, covering blade LH

1шт.

4

626505R1

BRACKET, covering blade RH

1шт.

BOLT W/NUT, 1/2 x 1-1/2 in. hex-hd mach

2шт.

WASHER, 1/2 in. lock

2шт.

5

626506R1

BRACKET, boot mounting single disk fertilizer LH

1шт.

5

626507R1

BRACKET, boot mounting single disk fertilizer RH

1шт.

BOLT W/NUT, 3/8 x 2-1/2 in. hex-hd mach

4шт.

WASHER, 3/8 in. lock

4шт.

6

621426R1

SUPPORT

BLADE, wide covering LH

1шт.

6

621427R1

BLADE

wide covering RH

1шт.

BOLT W/NUT, 5/16 x 3/4 in. hex-hd mach

4шт.

WASHER, 5/16 in. lock

4шт.
