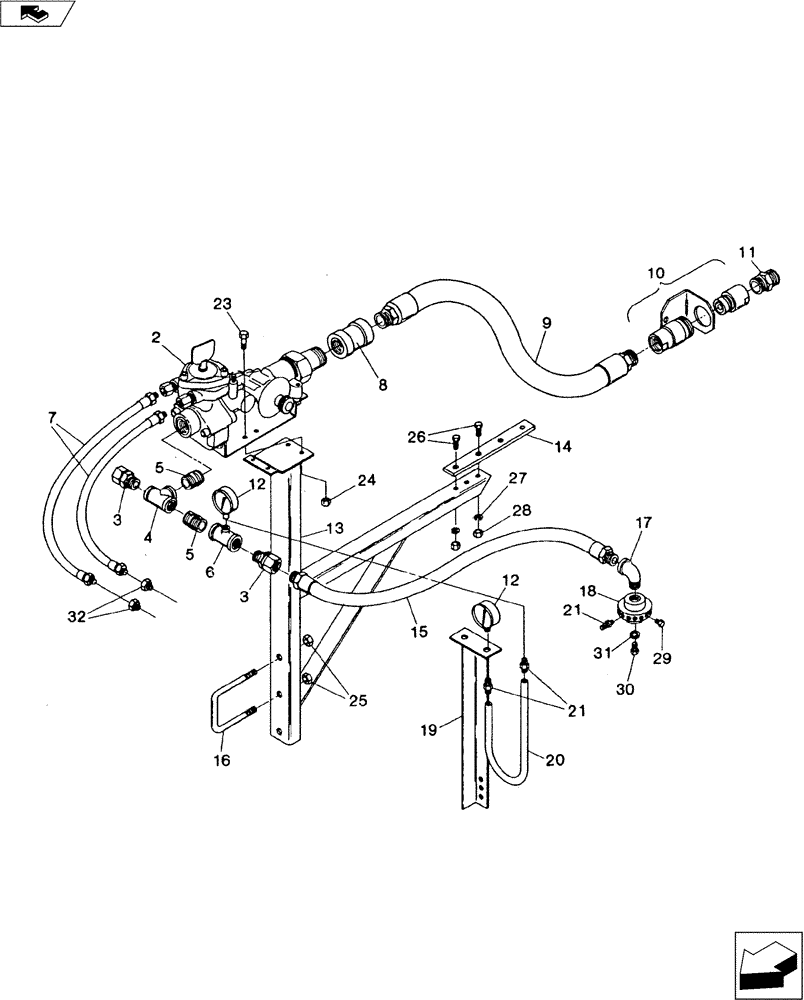

Запчасти Case IH 3200 (35.106.01) - B-9500 METER MATIC REGULATOR (35) - HYDRAULIC SYSTEMS

1

02400261

(Not Shown)

1шт.

2

34107100

B9500

1шт.

3

15081006

COUPLING

1" NPTM x 1" NPTF Swivel

2шт.

4

15051001

1" NPT

1шт.

5

15011000

FITTING

1" NPT x 1 -1/2" Lg.

2шт.

6

15051003

TEE

1" x 1" NPTF x 1/4" NPTF

1шт.

7

25600412

HOSE

1/4" Hyd. x 144" Long

2шт.

8

15071251

ADAPTER

1 -1/4" NPT

1шт.

9

25675320

HOSE,1.25" ID x 32.00"

1шт.

10

02600040

FITTING

1 1/4" Quick Coupler Assy.

1шт.

11

34314100

FITTING

1 3/4" ACHE x 1 1/4' NPTM

1шт.

12

34599060

GAUGE

Dial - 60 PSI

1шт.

13

02130000

1шт.

14

02130061

1шт.

15

25674960

1" AA x 104" Long

2шт.

15

25674120

1" AA x 144" Long

2шт.

16

16310011

U-BOLT

BOLT "U" 5/8" x 4" x 5 1/2"

1шт.

17

15001002

FITTING

1" NPT 90 Street

2шт.

18

34199024

VENT MANIFOLD

Continental - 14 Outlet

2шт.

19

04631200

SUPPORT

Hose & Gauge Stand

1шт.

20

25630600

HOSE

3/8" I.D. AA

1шт.

20

25630800

1/2" I.D. AA

1шт.

21

15040251

HYD CONNECTOR

1/4" NPT x 3/8" Hose Barb

1шт.

21

15040252

FITTING,1/2" Hose Barb x 1/4" - 18 NPT

1/4" NPT x 1/2" Hose Barb

1шт.

23

NSS

NOT SOLD SEPARAT

3/8" NC x 1" Capscrew

2шт.

24

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

2шт.

25

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

2шт.

26

NSS

NOT SOLD SEPARAT

7/16" NC x 1" Capscrew

2шт.

27

NSS

NOT SOLD SEPARAT

7/16" Lock Washer

2шт.

28

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

2шт.

29

15020250

PLUG

1/4" NPT

1шт.

30

NSS

NOT SOLD SEPARAT

1/2" NC x 3/4" Capscrew

2шт.

31

NSS

NOT SOLD SEPARAT

1/2" Lock Washer

2шт.

32

25702502

BOLT

1/4" NPTF x 1/2" NPTM Adapter

2шт.
