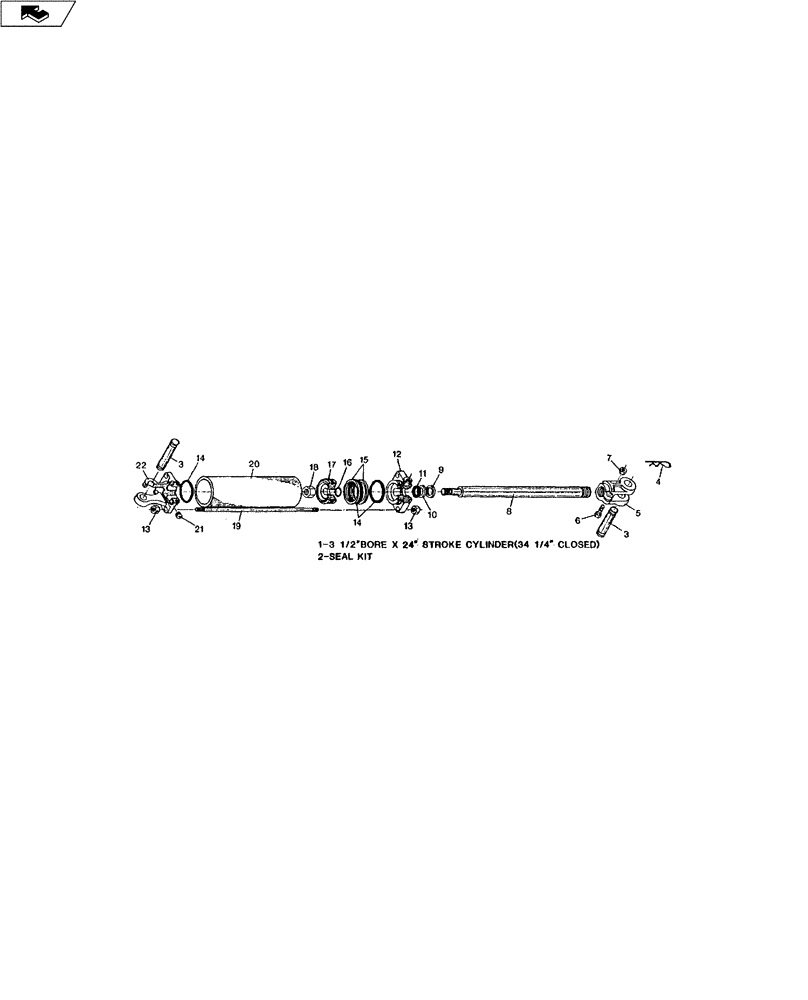

Запчасти Case IH 3200 (35.100.02) - HYDRAULIC CYLINDER ASSEMBLY (ROCKFORD) (35) - HYDRAULIC SYSTEMS

1

25035241

CYLINDER ASSY.

3-1/2" X 24" SAE Ports

1шт.

25335242R

REMAN-HYD CYLINDER

3200;Reman For New P/N 25035241

1шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

2

25803526

KIT

Seal

1шт.

3

14816241

CLEVIS PIN

1" Dia . x 3" E.L.

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" Dia. Hair Pin

4шт.

5

25804057

SHAFT

Clevis

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1 3/4" NC Capscrew

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Loc. Nut

1шт.

8

25803539

SHAFT

1 1/2" Dia.

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal See Ref. 2

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer See Ref. 2

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring See Ref. 2

1шт.

12

25803529

SHAFT

Cylinder Head 3/4" SAE Ports

1шт.

13

NSS

NOT SOLD SEPARAT

9/16 NF Hex. Nut Gd 5

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring See Ref. 2

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal See Ref. 2

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring See Ref. 2

1шт.

17

25803542

1шт.

18

NSS

NOT SOLD SEPARAT

7/8 NF Hex. Nut

1шт.

19

25803540

4шт.

20

25803538

1шт.

21

NSS

NOT SOLD SEPARAT

3/4" SAE Plug

1шт.

22

25803523

SHAFT

Cylinder Base 3/4" SAE Ports

1шт.
