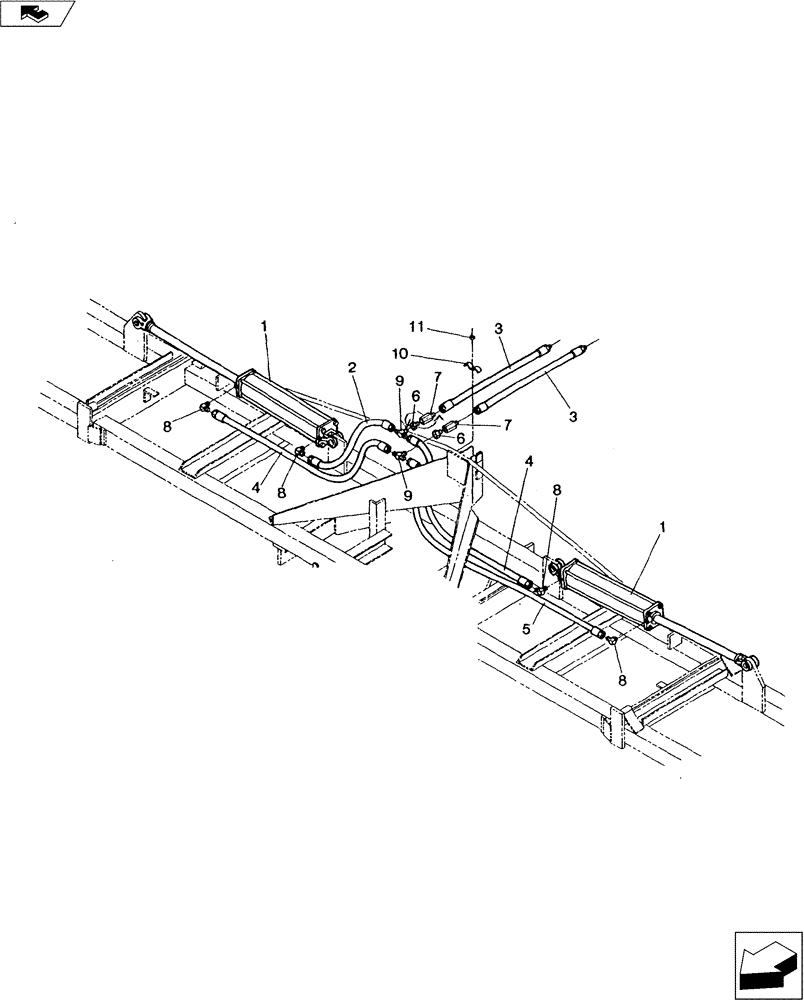

Запчасти Case IH 3200 (35.100.01) - HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

25035241

CYLINDER ASSY.

3-1/2" x 24" - SAE Ports, See Figure 35.100.02

2шт.

25335242R

REMAN-HYD CYLINDER

3200;Reman For New P/N 25035241

2шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

2

25600630

HYDRAULIC HOSE,0.38" ID x 30.00", SAE 100R17

1шт.

3

25600647

HYDRAULIC HOSE,0.38" ID x 48.00"

2шт.

4

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

2шт.

5

25600678

HYDRAULIC HOSE,0.38" ID x 78.00", SAE 100R17

1шт.

6

25705009

HYD CONNECTOR

3/4" JIC x 3/4" NPTM

2шт.

7

25405003

CONTROL VALVE

Throttle - Purple, See Figure 75.120.01

2шт.

8

25707521

ELBOW

3/4" SAEM - 3/4" JICM 90

4шт.

9

25707519

3/4" JICM x 1/2 NPTM

2шт.

10

22530601

HOSE CLAMP

Double

1шт.

11

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut

1шт.
