(75.200.10) - SINGLE CONTINENTAL BUNDLE WITH. (1) MANIFOLD

Запчасти Case IH 3200 (75.200.10) - SINGLE CONTINENTAL BUNDLE WITH. (1) MANIFOLD (75) - SOIL PREPARATION

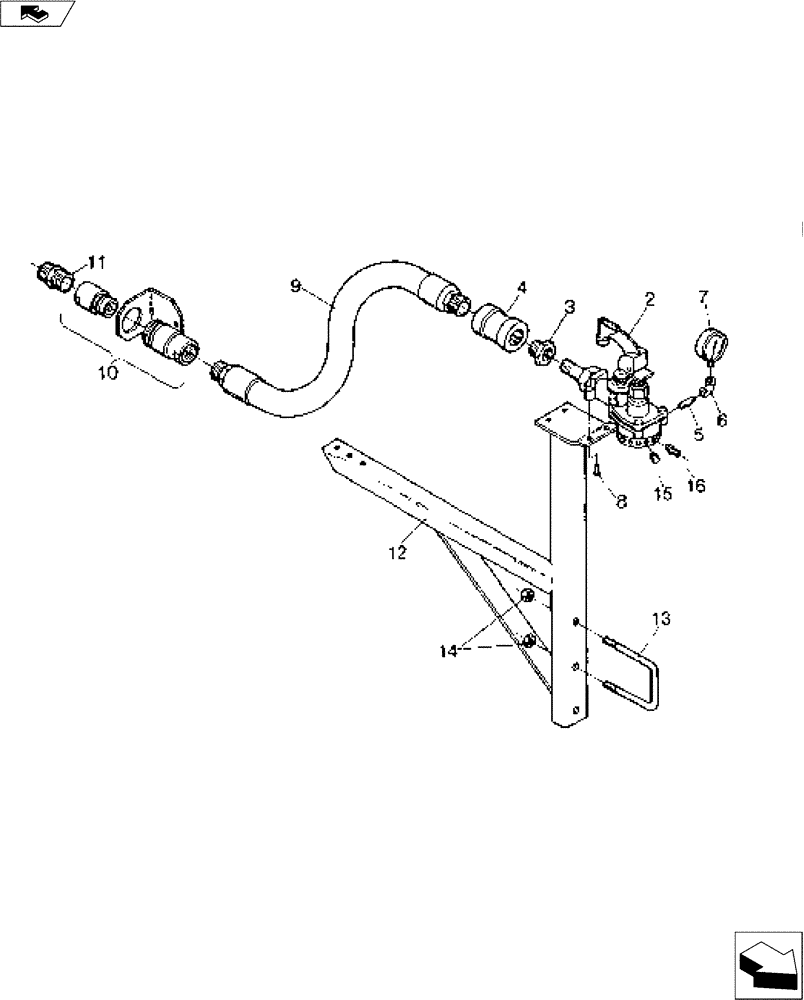

Схема запчастей Case IH 3200 - (75.200.10) - SINGLE CONTINENTAL BUNDLE WITH. (1) MANIFOLD (75) - SOIL PREPARATION
5
10
12
13
9
16
8
11
14
15
2
3
6
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

34104113

See Fig. 35.106.03

1шт.

3

15031259

ADAPTER

1-1/4" x 1" Bushing

1шт.

4

15071251

ADAPTER

1-1/4" Pipe Coupling Double Strength

1шт.

5

15010121

ADAPTER

1/8" NPT x 1-1/2" Lg.

1шт.

6

15060120

ADAPTER

1/8" NPT x 1/4" NPT 90

1шт.

7

34599060

GAUGE

Pressure 0-60 PSI

1шт.

8

NSS

NOT SOLD SEPARAT

5/16" x 3/4" NC Capscrew

2шт.

9

25675320

HOSE,1.25" ID x 32.00"

1шт.

10

02600040

FITTING

1-1/4" Quick Coupler Assembly, See Fig. 35.850.01

1шт.

11

34314100

FITTING

1-3/4 " Acme x 1-1/4" NPTM

1шт.

12

02130000

1шт.

13

16310011

U-BOLT

BOLT "U" 5/8" x 4" x 5-1/2"

1шт.

14

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

2шт.

15

15020120

FITTING

1/8" NPT Plug

1шт.

16

15040121

ADAPTER

1/8" NPT x 3/8" Hose Barb

1шт.

16

15040122

1/8" NPT x 1/2"

1шт.
