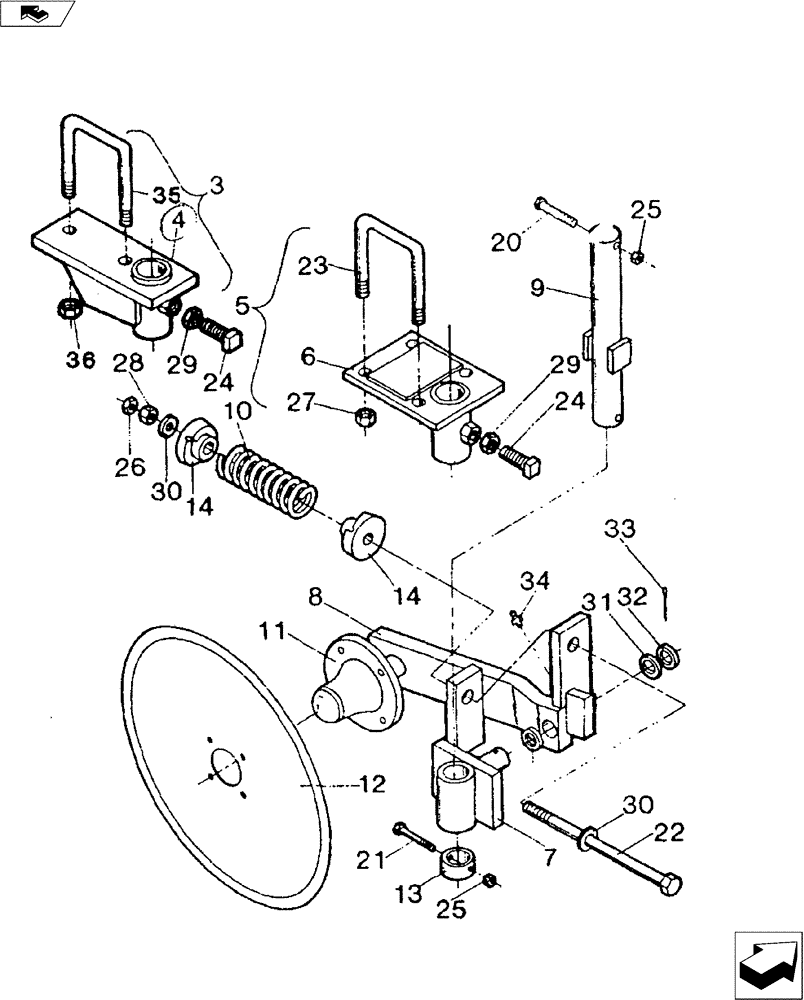

Запчасти Case IH 3200 (75.200.08) - 24" SPRING COLTER ASSEMBLY (75) - SOIL PREPARATION

1

04642000

Includes Ref. 3 (Not Shown)

1шт.

1

04642002

Includes Ref. 5 (Not Shown)

1шт.

2

04642001

Less Blade, Includes Ref. 3 (Not Shown)

1шт.

2

04642003

Less Blade, Includes Ref. 5 (Not Shown)

1шт.

3

02356001

Includes Ref. 4, 23, 27

1шт.

4

02356000

Includes Ref. 24, 29

1шт.

5

04620001

Includes Ref. 23, 27

1шт.

6

04620000

Includes Ref. 24, 29

1шт.

7

04642020

COULTER

Pivot

1шт.

8

04642030

POWER ARM

Colter W/Hub

1шт.

9

04649000

COULTER

Shaft (1-3/4")

1шт.

10

24156205

COIL SPRING

Compression

1шт.

11

28163310

HUB ASSY.

633 4-Bolt See Figure 39.110.01 , 39.110.02

1шт.

12

33502442

PLOW DISC

24" Colter Blade

1шт.

13

49529000

PIPE

Colter Bottom Collar

1шт.

14

20090050

HOLDER

Spring Casting

2шт.

15

04642010

COULTER

24" Assy., Includes Ref. 7- 8, 10, 14, 22, 26, 28, 30-34 (Not Shown)

1шт.

20

16006105

BOLT

3/8" x 2-1/2" NC Gd. 5

1шт.

21

NSS

NOT SOLD SEPARAT

3/8" x 3" NC Capscrew

1шт.

22

16010540

BOLT

5/8" x 13-1/2" NC Hex.

1шт.

23

16310011

U-BOLT

BOLT "U" 5/8" x 4" x 5 1/2" Sq.

2шт.

24

16812084

SET SCREW,3/4" - 10 x 2"

3/4" X 2" Sq. Hd. Set

1шт.

25

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

2шт.

27

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

4шт.

28

NSS

NOT SOLD SEPARAT

5/8" NC Heavy Nut

1шт.

29

NSS

NOT SOLD SEPARAT

3/4" NC Jam Nut

1шт.

30

17411012

WASHER

11/16" I.D. x 1-3/4" O.D. x 1/4" Thk.

2шт.

31

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Mach. 14 Ga.

2шт.

32

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Mach. 10 Ga.

1шт.

33

NSS

NOT SOLD SEPARAT

1/4" x 1- 1/2" Cotter Pin

1шт.

34

NSS

NOT SOLD SEPARAT

1/8" NPT Zerk

1шт.

35

16312220

U-BOLT

3/4" x 4" x 5-1/2

1шт.

36

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

2шт.
