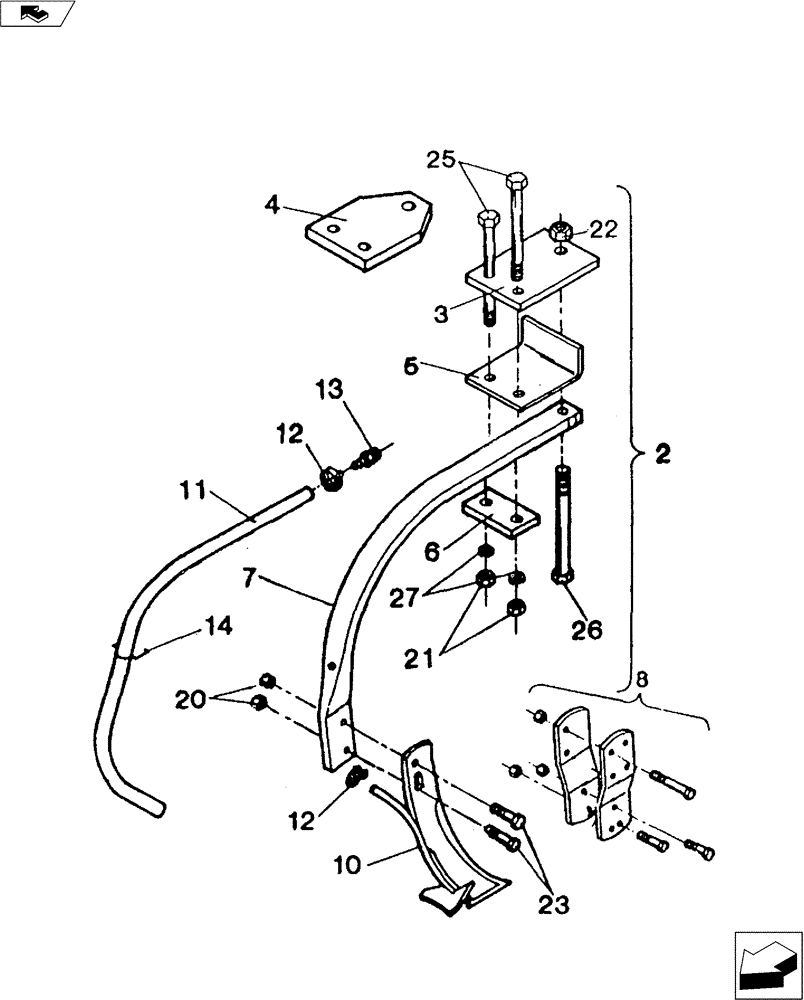

Запчасти Case IH 3200 (75.200.04) - RIGID SHANK ASSEMBLY (75) - SOIL PREPARATION

1

02417004

Std. Rigid Assy. (Less #10 & 11) (Not Shown)

1шт.

1

02417006

(Less Ref.10 &11) (Not Shown)

1шт.

2

09232000

Rigid Mounting Bundle, Includes Ref. 3, 5, 6 & Hardware

1шт.

2

09259000

HITCH

Rigid Center Mounting Bundle, Includes Ref. 1, 5 , 6 & Hardware

1шт.

3

09213000

CLAMP

Top Plate

1шт.

4

09213100

1шт.

5

09235000

CLAMP

Lower Plate

1шт.

6

09236000

CLAMP

Plate

1шт.

7

33020017

SHANK

1" x 2" Sidemount

1шт.

8

02419000

BRACKET

Knife w/Hardware

1шт.

10

33601002

KNIFE

Forward Swept - 3/8" (See Knife Figure)

1шт.

10

33601003

1/2" (See Knife Figure)

1шт.

11

25630615

3/8" I.D. AA x 15" Lg.

1шт.

11

25630815

1/2" I.D. AA x 15" Lg.

1шт.

12

22510600

3/8"

2шт.

12

22510810

1/2"

2шт.

13

15040121

ADAPTER

1/8" NPT x 3/8" Hose Barb

1шт.

13

15040122

1/8" NPT x 1/2"

1шт.

13

15040251

HYD CONNECTOR

1/4" NPT x 3/8" Hose Barb

1шт.

13

15040252

FITTING,1/2" Hose Barb x 1/4" - 18 NPT

1/4" NPT x 1/2" Hose Barb

1шт.

14

22510803

CLIP

Hose

1шт.

20

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

2шт.

21

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

2шт.

22

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

1шт.

23

NSS

NOT SOLD SEPARAT

1/2" x 2" NC CapScrew

2шт.

25

16010320

5/8" x 8" NC Hex.

2шт.

26

16012304

3/4" x 7-1/2" NC Hex. Gd 5

1шт.

27

NSS

NOT SOLD SEPARAT

5/18" Lock Washer

2шт.
