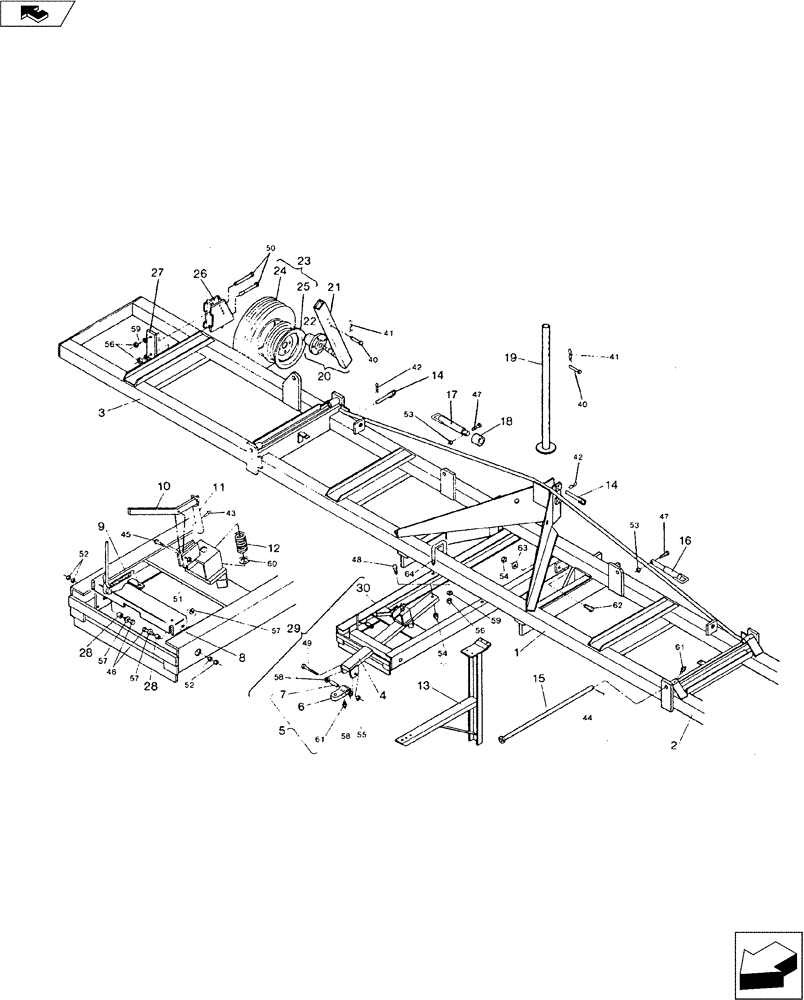

Запчасти Case IH 3200 (39.200.01) - 3200 TOOLBAR ASSEMBLY (39) - FRAMES AND BALLASTING
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
1шт.
2
02359000
RH 44"
1шт.
2
02351000
RH 76"
1шт.
2
02353010
RH 104"
1шт.
3
02358000
LH 44"
1шт.
3
NSS
NOT SOLD SEPARAT
LH 76"
1шт.
3
02354010
LH 104"
1шт.
4
02355200
DRAWBAR
Tow
1шт.
5
02134100
TOW BAR
W/Bushing
1шт.
6
20092081
SUPPORT
1шт.
7
02135000
TUBE
Bushing
1шт.
8
02355300
STOP LOCK
1шт.
9
24312000
COIL SPRING
Extension
1шт.
10
47051000
BAR
Hitch Lever
1шт.
11
14816166
HITCH PIN,25.4mm OD x 127mm L
1шт.
12
24111200
SPRING
Compression
1шт.
13
02130000
1шт.
14
14816395
CLEVIS
1" Dia. x 4-7/8" Pin
3шт.
15
14820960
PIN
1-1/4" Dia. x 35" Clevis
2шт.
16
14823695
TOW BAR
Category 2 Hitch Pin
2шт.
17
14823696
HITCH PIN
Category 3
2шт.
18
02305000
SPACER
Cat. 3 Hitch Pin
2шт.
19
NSS
NOT SOLD SEPARAT
Parking (1-7/8" O.D.)
1шт.
19
02350500
STAND
Parking (2-3/8" O.D.)
1шт.
20
02360200
ARM
Spindle w/Hub
2шт.
22
28163300
HUB ASSY.
Q-633 4 - Bolt, See Fig. 44.100.01
2шт.
23
10005146
LAND WHEEL
7.50 x 14 Tire & Assembly
2шт.
24
NSS
NOT SOLD SEPARAT
7.50 x 14 4-Ply Tire
2шт.
25
10105146
LAND WHEEL
5 x 14 4-Hole
2шт.
26
02360100
BRACKET
Gauge Wheel Mounting
2шт.
27
05021000
PLATE
Gauge Wheel Flat
2шт.
28
44003801
BUSHING
2шт.
29
04619000
HITCH
Rear Assy.
1шт.
30
NSS
NOT SOLD SEPARAT
Rear, Order 04619000
1шт.
40
14810251
HEADED PIN,15.88mm OD x 96.77mm L
5/8" x 3 1/8" EI. Clevis
3шт.
41
NSS
NOT SOLD SEPARAT
1/8" x 2" Lg. Hair Pin
3шт.
42
NSS
NOT SOLD SEPARAT
3/16" x 3" Lg. Hair Pin
3шт.
43
NSS
NOT SOLD SEPARAT
1/4" Dia. x 1-1/2" Lg. Roll Pin
1шт.
44
NSS
NOT SOLD SEPARAT
1/4" x 1-1/2" Lg. Cotter Pin
2шт.
45
NSS
NOT SOLD SEPARAT
1/4" x 1-1/2" NC Capscrew
1шт.
46
NSS
NOT SOLD SEPARAT
3/8" x 1-1/2" NC Capscrew
2шт.
47
NSS
NOT SOLD SEPARAT
7/16" x 1-1/2" NC Capscrew
4шт.
48
NSS
NOT SOLD SEPARAT
5/8" x 1-3/4" NC Capscrew
1шт.
49
NSS
NOT SOLD SEPARAT
3/4" x 5" NC Gd. 5 Capscrew
1шт.
50
413-12104
BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5
3/4" x 6-1/2" NC Hex. Gd 5
4шт.
51
NSS
NOT SOLD SEPARAT
1/4" NC Hex. Nut
1шт.
52
NSS
NOT SOLD SEPARAT
3/8" NC Hex. Nut
4шт.
53
NSS
NOT SOLD SEPARAT
7/16" NC Hex. Nut
4шт.
54
NSS
NOT SOLD SEPARAT
5/8" NC Hex. Nut
5шт.
55
NSS
NOT SOLD SEPARAT
3/4" NC Hex. Lock Nut
1шт.
56
NSS
NOT SOLD SEPARAT
3/4" NC Hex. Nut
4шт.
57
NSS
NOT SOLD SEPARAT
3/8" Std. Washer
4шт.
58
NSS
NOT SOLD SEPARAT
3/4" Std. Washer
2шт.
59
NSS
NOT SOLD SEPARAT
3/4" Lock Washer
8шт.
60
NSS
NOT SOLD SEPARAT
1" Machinery Washer
1шт.
61
NSS
NOT SOLD SEPARAT
1/8" MPT Grease Zerk
5шт.
62
16010085
BOLT
5/8" x 2" NC
4шт.
63
NSS
NOT SOLD SEPARAT
5/8" Lock Washer
4шт.
64
16312220
U-BOLT
3/4" x 4" x 5-1/2"
2шт.
Выбрано товаров: 59
