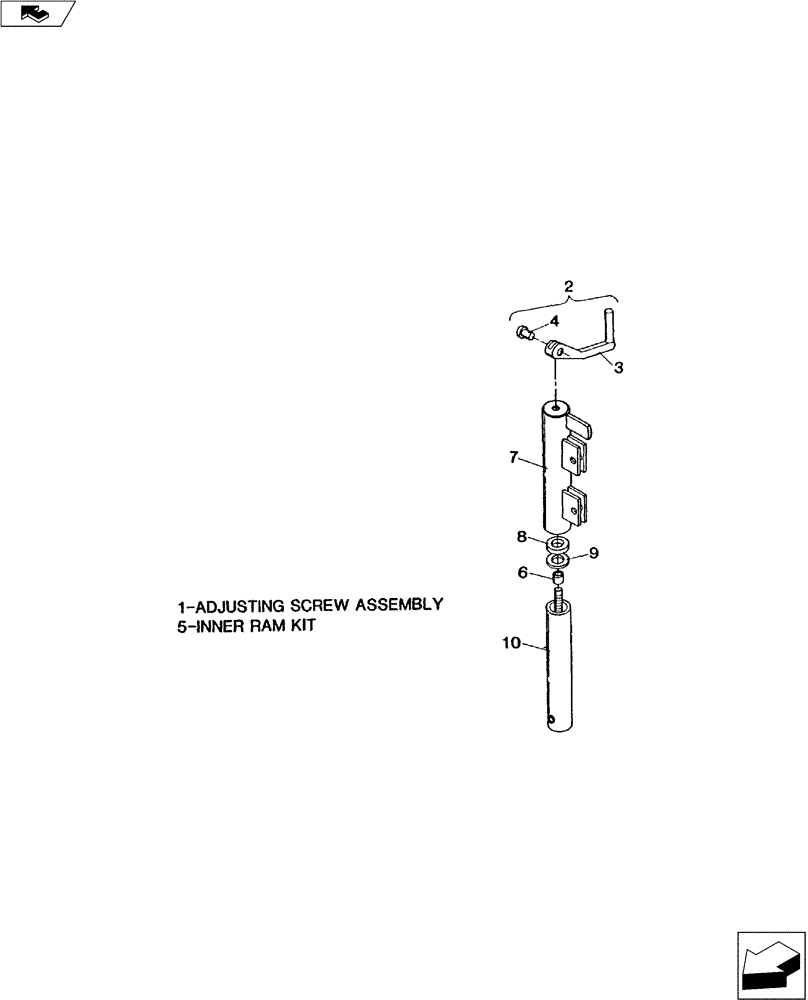

Запчасти Case IH 3200 (39.110.02) - ADJUSTING SCREW ASSEMBLY (39) - FRAMES AND BALLASTING

1

02295000

1шт.

2

32210740

CYLINDER ASSY.

Handle Replacement Kit, Includes Ref. 3 & 4

1шт.

3

NSS

NOT SOLD SEPARAT

Jack Handle

1шт.

4

32250225

1шт.

5

32220002

CYLINDER ASSY.

Inner Ram Kit, Includes Ref. 4, 6, 8 & 9

1шт.

6

32220004

Felt Sleeve

1шт.

7

NSS

NOT SOLD SEPARAT

Outer Housing

1шт.

8

21890750

THRUST BEARING

1шт.

9

21890751

Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Inner Ram

1шт.
