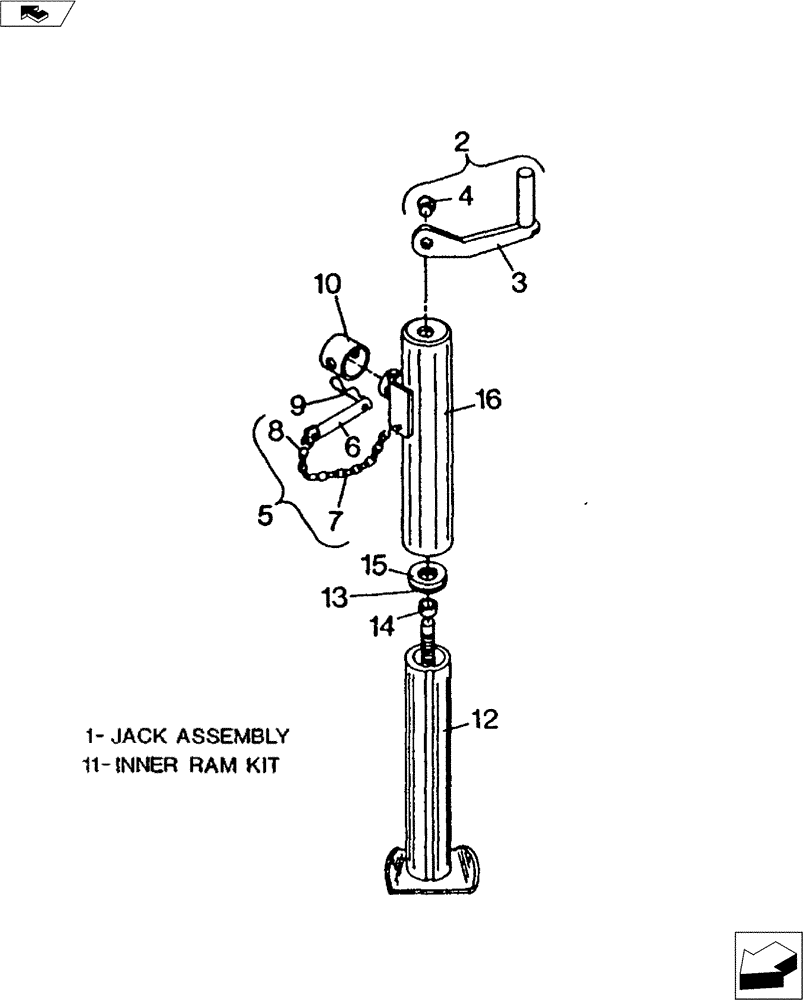

Запчасти Case IH 3200 (39.110.01) - JACK ASSEMBLY (39) - FRAMES AND BALLASTING

1

32220000

JACK

Assembly 2000

1шт.

2

32210740

CYLINDER ASSY.

Handle Replacement, Includes Ref. 3 & 4

1шт.

3

NSS

NOT SOLD SEPARAT

Jack Handle

1шт.

4

32250225

1шт.

5

32220001

REPAIR KIT

Locking Pin, Includes Ref. 6-9

1шт.

6

NSS

NOT SOLD SEPARAT

Locking Pin

1шт.

7

NSS

NOT SOLD SEPARAT

Chain

1шт.

8

NSS

NOT SOLD SEPARAT

S-Hook

2шт.

9

NSS

NOT SOLD SEPARAT

Hairpin

1шт.

10

09311040

TUBE,1.3" ID, 2" OD, 2.62" Length

Mounting Bracket

1шт.

11

32220002

CYLINDER ASSY.

Inner Ram Kit, Includes Ref. 4, 13-15

1шт.

12

NSS

NOT SOLD SEPARAT

Inner Ram

1шт.

13

21890751

1шт.

14

32220004

1шт.

15

21890750

THRUST BEARING

1шт.

16

NSS

NOT SOLD SEPARAT

Outer Housing

1шт.
