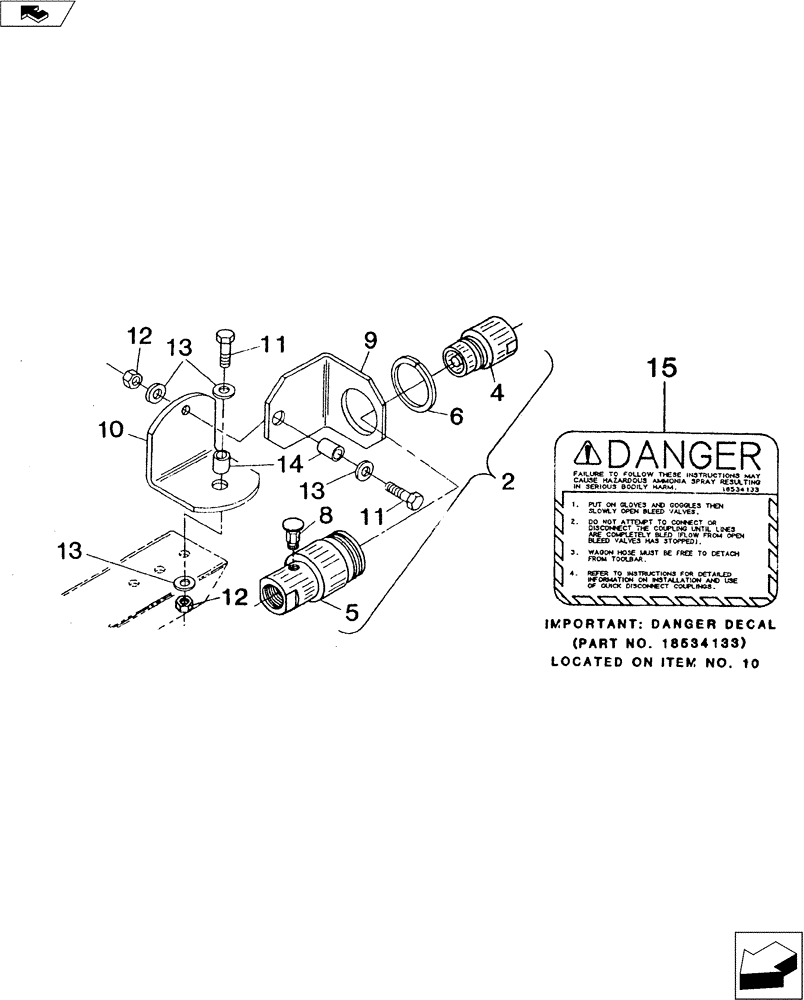

Запчасти Case IH 3200 (35.850.01) - 1-1/4" QUICK COUPLER ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

02600040

FITTING

1-1/4" (Not Shown)

1шт.

2

34410030

Includes Ref. 4-8, 9-14

1шт.

3

34410031

1-1/4", Includes Ref 4-5 (Not Shown)

1шт.

4

34410032

QUICK MALE COUPLING

1-1/4"

1шт.

5

34410033

QUICK MALE COUPLING

1-1/2"

1шт.

6

14601250

1шт.

5

34410034

O-RING KIT

Kit (Consists of 2 0-Rings)

1шт.

7

34410034

O-RING KIT

Kit (Consists of 2 O-Rings) (Not Shown)

1шт.

8

34202001

1шт.

9

02628011

Includes Ref. 11-14

1шт.

10

02138000

1шт.

11

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" NC Capscrew

2шт.

12

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Lock Nut

2шт.

13

NSS

NOT SOLD SEPARAT

1/2" Std. Washer

4шт.

14

02138110

SPACER

Pipe

2шт.

15

18534133

1шт.
