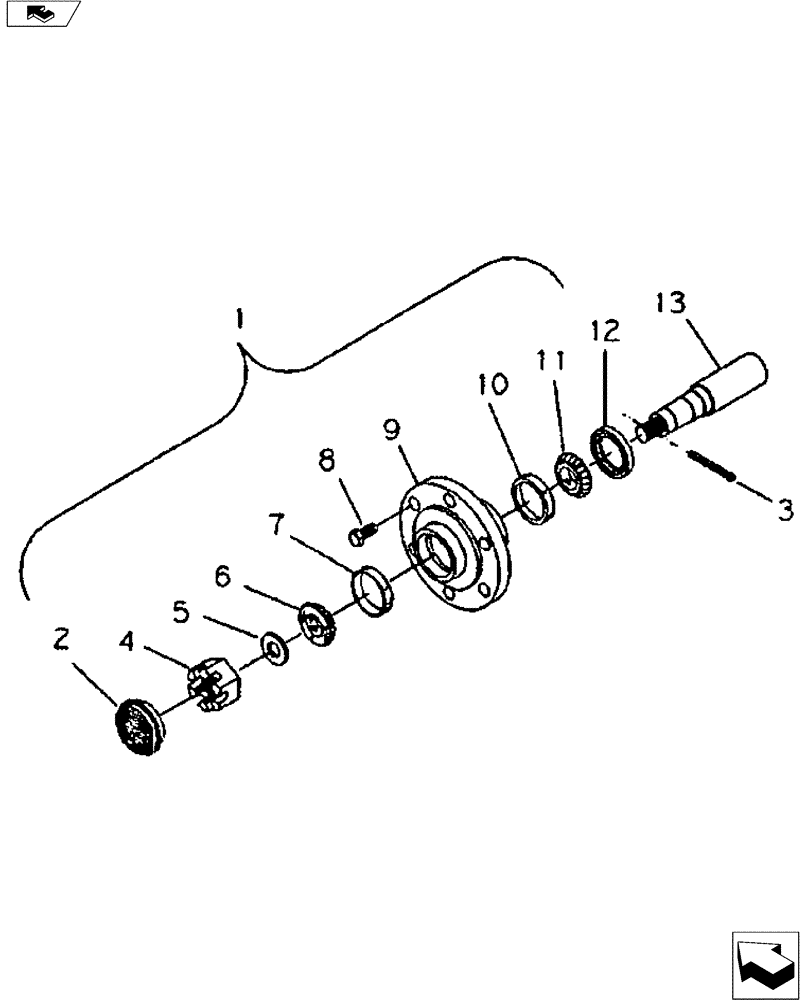

Запчасти Case IH PULL HITCH (44.100.01) - 783 HUB & SPINDLE (44) - WHEELS

28078305

HUB ASSY.

Spindle Assembly (Not Shown)

1шт.

1

28178300

HUB ASSY.

783 6-Bolt

1шт.

2

28477700

HUB CAP

1шт.

3

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

4

425-1314

SLOTTED NUT,7/8"-14, G5

NF

1шт.

5

495-61094

WASHER,7/8" x 2 1/4" x .16"

2" OD, Years: -01-DEC-96

1шт.

5

17915000

WASHER

7/8" Black, Start Year: 01-JAN-97

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25 Bore Timken LM67048

1шт.

7

651817R1

BEARING CUP

2.33 OD Timken LM67010

1шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2" NF x 1-15/32" Lug

6шт.

9

NSS

NOT SOLD SEPARAT

Hub w/Cups

1шт.

10

663558R1

BEARING CUP

2.89 OD Timken LM501310

1шт.

11

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625" Bore Timken LM501349

1шт.

12

145769C91

OIL SEAL

1.875" ID x 3.005" OD

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle 2" Straight

1шт.
