(55.404.01) - PULL HITCH WARNING AND TAILLIGHT KIT

Запчасти Case IH PULL HITCH (55.404.01) - PULL HITCH WARNING AND TAILLIGHT KIT (55) - ELECTRICAL SYSTEMS

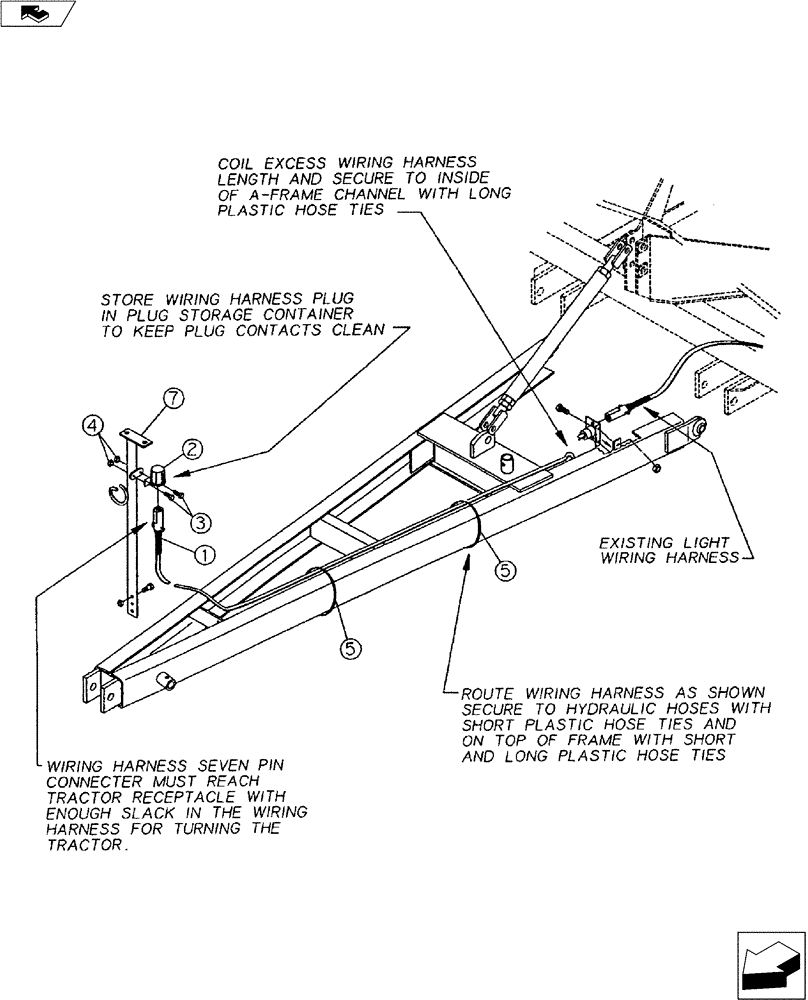

Схема запчастей Case IH PULL HITCH - (55.404.01) - PULL HITCH WARNING AND TAILLIGHT KIT (55) - ELECTRICAL SYSTEMS
7
2
5
3
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

27601266

Extension

1шт.

2

27601214

HOLDER

Plug Storage Container

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

4

86992211

NUT

1/4" NC

2шт.

5

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 30" Plastic Hose Tie

1шт.

6

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP 20" Plastic Hose Tie (Not Shown)

1шт.

7

04631200

SUPPORT

Hose Weld, (Not Included with Light Kit)

1шт.
