Запчасти Case IH PULL HITCH (35.100.01) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

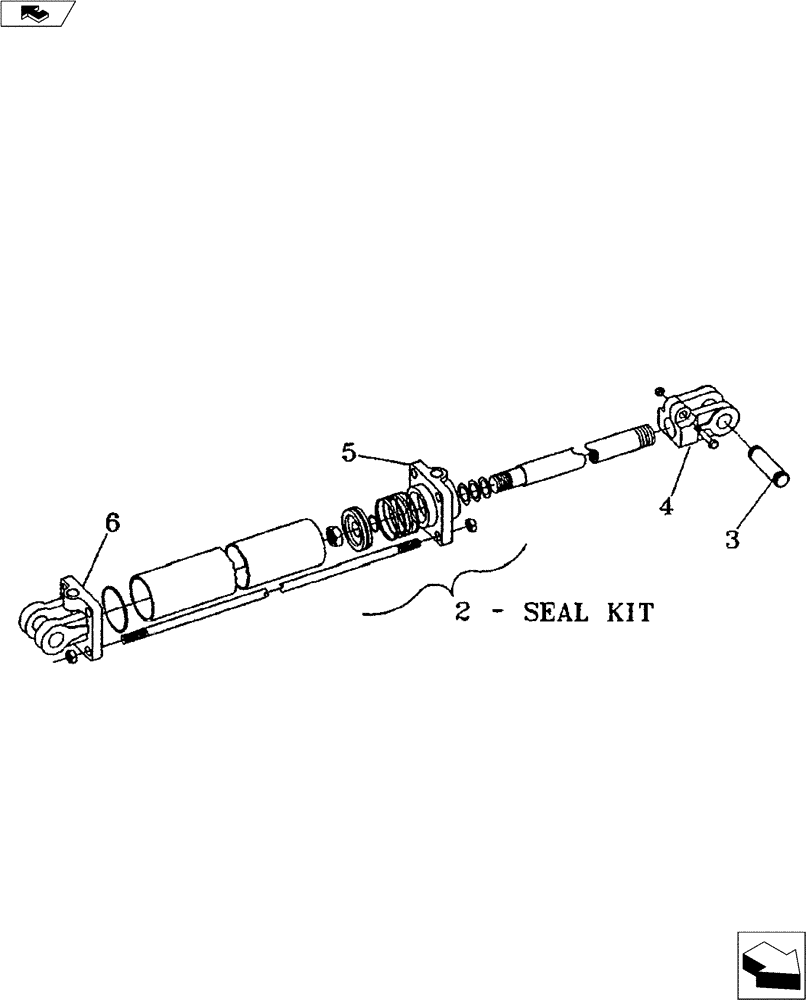

Схема запчастей Case IH PULL HITCH - (35.100.01) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS
2
5
6
4
3

Артикул

Название

Примечание

Количество

1

86990538

HYDRAULIC CYLINDER

3-1/4" Bore x 10" Stroke (20-1/4" Closed) (Not Shown)

1шт.

87394795R

REMAN-HYD CYLINDER

PULL HITCH Reman for New P/N 86990538

1шт.

87394795C

CORE-HYD CYLINDER

Return Number

1шт.

1

86990539

HYDRAULIC CYLINDER

3-1/2" Bore x 10" Stroke (20-1/4" Closed) (Not Shown)

1шт.

2

87409037

SEAL KIT

Seal - 1-1/4" Rod, Used On 86990538

1шт.

2

87409038

SEAL KIT

Seal - 1-1/4" Rod, Used On 86990539

1шт.

3

25890100

KIT

1" Cylinder Pin Bag Of Parts

1шт.

4

25803001

SHAFT

Clevis

1шт.

5

25803202

CYLINDER HEAD 3/4" SAE Ports

1шт.

5

25803536

HEAD ASSY. 3/4" SAE Ports

1шт.

6

25803205

BASE 3/4" SAE Ports

1шт.

6

25803534

BASE 3/4" SAE Ports

1шт.

Выбрано товаров: 12
