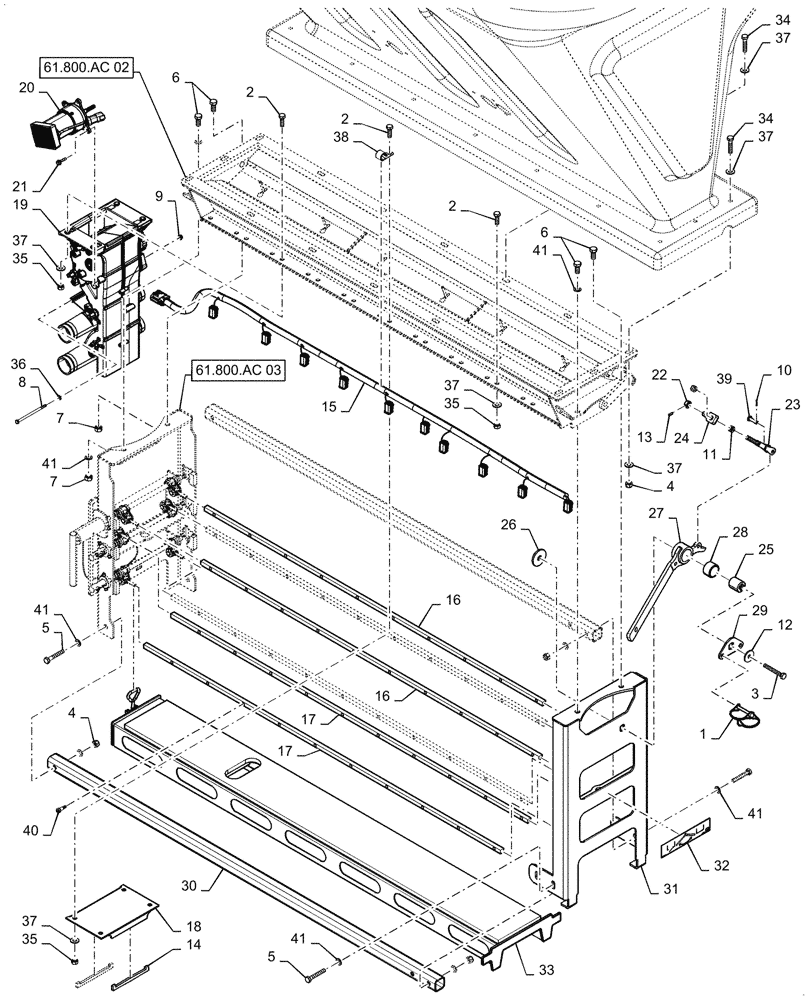

Запчасти Case IH 4955 (61.800.AC[07]) - SEED METER, SMALL, 350, 435 BUSHEL, 8 RUN, TOW BEHIND (61) - METERING SYSTEM

1

6383

PIN

2шт.

2

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

80шт.

3

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

2шт.

4

100037

LOCK NUT,M10 x 1.5, Cl 8

44шт.

5

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

12шт.

6

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

8шт.

7

337475

NUT,M12, Cl 10

8шт.

8

BRR1768926

SCREW,Hex, M6 x 1 x 110mm, Cl 8.8

10шт.

9

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

10шт.

10

10734101

COTTER PIN,M1.6 x 12

2шт.

11

18711611

NUT,M10 x 1.25

4шт.

12

12644301

WASHER,M10 x 35 x 3

2шт.

13

13790921

SET SCREW,Hex Skt, M6 x 6mm, Cl 8.8, Full Thd, Flat Pt

2шт.

14

47357790

SEAL

Inter Meter

26шт.

15

47625036

WIRE HARNESS

Air Cart, 10 Motors

2шт.

16

47715237

SENSOR

Meter Control

4шт.

17

47715783

SENSOR

Meter Control

8шт.

18

47692065

DEFLECTOR

Sub Hopper

4шт.

19

47357732

MODULE

Meter, Motor, Coarse

16шт.

19

47891162

METER

Meter, Motor, Extra Fine

16шт.

20

47886361

MOTOR-PUMP

2шт.

21

86511953

BOLT,Hex Serr, M6 x 25mm

8шт.

22

47761491

COLLAR

Locking

2шт.

23

47775957

LINKAGE

Meter Shutoff

2шт.

24

47775958

LUG

Swivel Connector

2шт.

25

47775966

SHAFT

Handle Mount

2шт.

26

47775967

BRACKET

Backing Plate

2шт.

27

47767919

HANDLE

Meter Shutoff

2шт.

28

6636

BUSHING

2шт.

29

47775970

BRACKET

Handle Lock

2шт.

30

47779900

CROSSRAIL

Narrow Meter

4шт.

31

47779925

BRACKET

Meter End Plate

2шт.

32

47901543

DECAL

Master Shut Off

2шт.

33

47780093

COVER

Narrow Meter W/ Seal and Latch

2шт.

34

84062222

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

32шт.

35

86500689

NUT,M10 x 1.5, Cl 10

80шт.

36

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

37

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

144шт.

38

86639011

CLAMP,19mm, Coat, 10.3mm Bolt Hole, J Type

4шт.

39

87016663

CLEVIS PIN,M8 x 30

2шт.

40

48011430

SCREW

96шт.

41

86512915

LOCK WASHER,Int Tooth, 7/16"

24шт.
