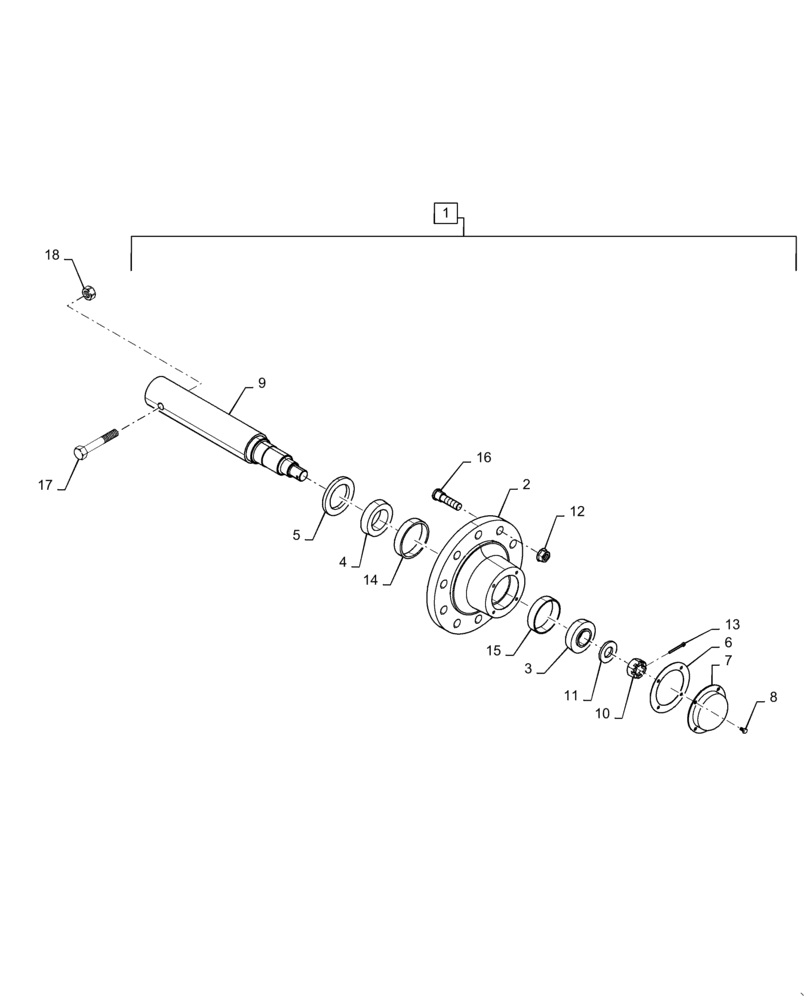

Запчасти Case IH 4765 (44.532.AE[02]) - 760, 950 BUSHEL FRONT AXLE SPINDLE ASSY (44) - WHEELS

1

47583736

HUB

Assembly, Complete, Incl 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Hub, Incl in 1

1шт.

3

9865

ROLLER BEARING,66.675 mm ID x 38.354 mm

Outer

1шт.

4

9866

ROLLER BEARING

Inner

1шт.

5

9864

OIL SEAL

Hub

1шт.

6

9861

GASKET

Rubber

1шт.

7

87506288

HUB CAP

Dust

1шт.

8

7669

BOLT

Dust Cap

4шт.

9

47583735

SPINDLE

Hub

1шт.

10

51200125

SLOTTED NUT,2"-12, G5

1шт.

11

51200133

WASHER,52mm ID x 101.6mm OD x 6.35mm Thk

Spindle, 1-1/4" ID

1шт.

12

9790660

FLANGE NUT,Flg, 3/4"-16, G8

10шт.

13

2488

COTTER PIN,3/8" x 3"

1шт.

14

9869

BEARING CUP

Inner

1шт.

15

9868

BEARING CUP

Outer

1шт.

16

22792

STUD

Wheel

10шт.

17

380422

BOLT,Hex, M20 x 2.5 x 190mm, Cl 8.8

1шт.

18

725637

NUT,M20 x 2.5, Cl 8

1шт.
