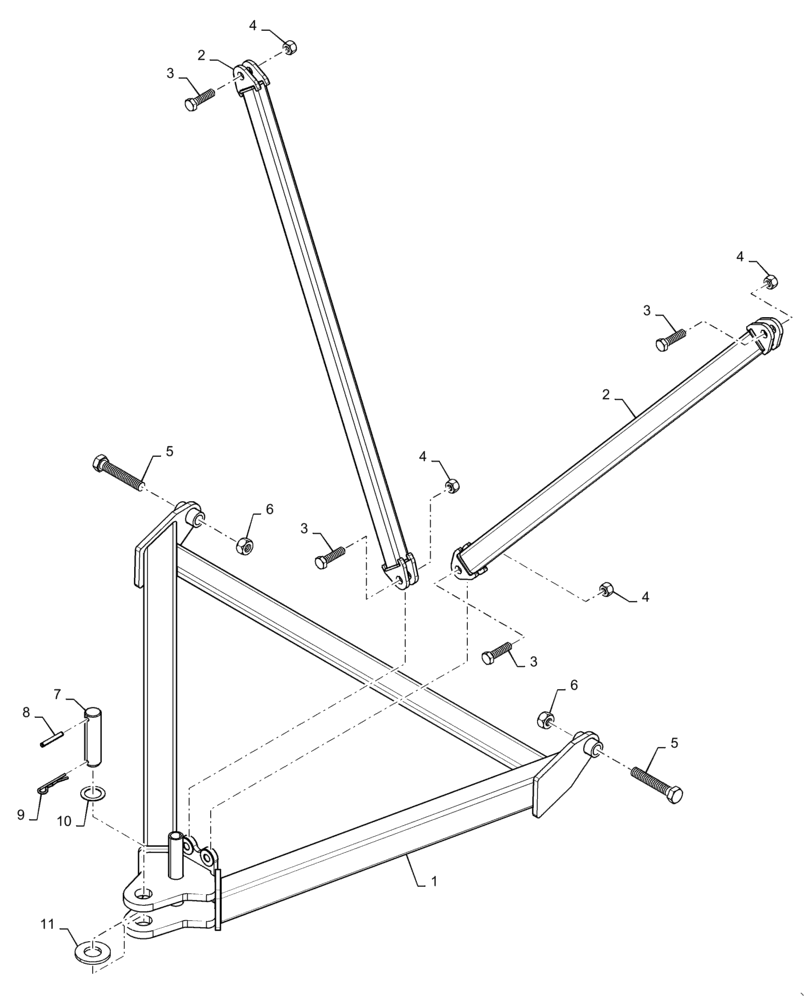

Запчасти Case IH 4765 (37.162.AA[02]) - REAR HITCH 350 BUSHELL (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47458169

FRAME

Rear Hitch Black

1шт.

2

47581100

HITCH

Brace Rear Black

2шт.

3

16054921

SCREW,Hex, M24 x 90mm, Cl 8.8

4шт.

4

589418

LOCK NUT,M24 x 3, Cl 8

4шт.

5

1836642

BOLT,Hex, M30 x 170, 10.9

2шт.

6

87752066

NUT

M30

2шт.

7

47585001

PIN

Shank 50.8 X 196

1шт.

8

84323489

ROLL PIN

Cotter

1шт.

9

84206680

COTTER PIN

0.2 X 5

1шт.

10

86625259

WASHER,2.06" ID x 3" OD x 0.11" Thk

1шт.

11

47764560

WASHER

Pintle Hitch Wear

1шт.
