Запчасти Case IH 4765 (35.748.AC[18]) - METERING HYDRAULICS 950 BUSHEL DOUBLE SHOOT TOW BEHIND (35) - HYDRAULIC SYSTEMS

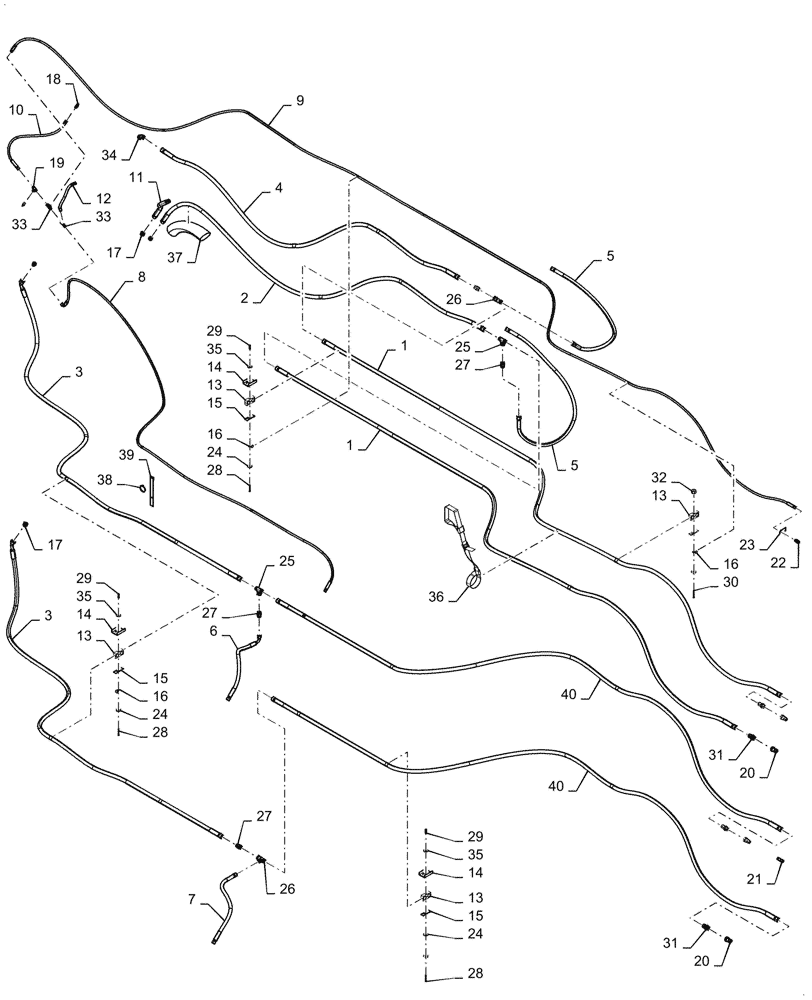

Схема запчастей Case IH 4765 - (35.748.AC[18]) - METERING HYDRAULICS 950 BUSHEL DOUBLE SHOOT TOW BEHIND (35) - HYDRAULIC SYSTEMS
2
5
29
14
3
13
31
33
32
9
20
28
12
24
5
36
17
11
6
35
29
35
28
7
13
34
27
10
21
15
3
27
29
17
24
1
26
14
16
33
31
35
30
25
4
19
13
15
18
8
22
23
37
27
40
14
40
16
38
15
26
28
1
24
25
20
39
13
16

Артикул

Название

Примечание

Количество

1

47897650

HYDRAULIC HOSE

8450mm L

2шт.

2

47897652

HYDRAULIC HOSE

3400mm L

1шт.

3

47709463

HYDRAULIC HOSE,25mm ID x 5275mm L, SAE 100R17

2шт.

4

47897653

HYDRAULIC HOSE

3900mm L

1шт.

5

47892151

HYDRAULIC HOSE

1200mm L

2шт.

6

47709469

HYDRAULIC HOSE,19mm ID x 1185mm L, SAE 100R17

1шт.

7

47709470

HYDRAULIC HOSE,19mm ID x 1065mm L, SAE 100R17

1шт.

8

47709464

HYDRAULIC HOSE,12.5mm ID x 5980mm L, SAE 100R17

1шт.

9

47897654

HYDRAULIC HOSE

12350mm L

1шт.

10

47709333

HYDRAULIC HOSE,12.5mm ID x 1040mm L, SAE 100R17

1шт.

11

47772008

HYDRAULIC HOSE,25.4mm ID x 600mm L, SAE 100R17

1шт.

12

47772006

HYDRAULIC HOSE,12.5mm ID x 650mm L, SAE 100R17

1шт.

13

47891569

CLAMP

12шт.

14

47891160

MOUNT

10шт.

15

87000231

PLATE

12шт.

16

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

9шт.

17

86050292

HYD CONNECTOR,1 5/16"-12, 37 Degree x7/8"-14, O-Ring

4шт.

18

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

2шт.

19

86513015

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

20

9358

QUICK MALE COUPLING,1" - 11.5 NPTF

4шт.

21

385358A1

QUICK MALE COUPLING,3/8"

1шт.

22

47727144

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

23

47432848

DECAL

1шт.

24

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

13шт.

25

86513018

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

2шт.

26

9618946

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

2шт.

27

47724879

CHECK VALVE,1-5/16" - 12 x 1-5/16" - 12, 5 PSI

4шт.

28

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

10шт.

29

47728119

NUT,M8 x 1.25, 24mm L

10шт.

30

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

31

47708521

HYD CONNECTOR,1-5/16" - 12 JIC x 1" - 11.5 NPTF

4шт.

32

68841

NUT,M8 x 1.25, Cl 8

2шт.

33

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

34

86512961

45 ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1шт.

35

84359103

NUT,Push On, M8

10шт.

36

47899220

STRAP

1шт.

37

87502709

PROTECTIVE SLEEVE,2-1/2" OD x 18" L

1шт.

38

289862C1

CABLE TIE,3/16" x 7"

2шт.

39

87108048

SECURING STRAP

1шт.

40

47897651

HYDRAULIC HOSE

7000mm L

2шт.

Выбрано товаров: 40
