Запчасти Case IH 4765 (35.748.AC[15]) - METERING HYDRAULICS 580 BUSHEL DOUBLE SHOOT TOW BEHIND (35) - HYDRAULIC SYSTEMS

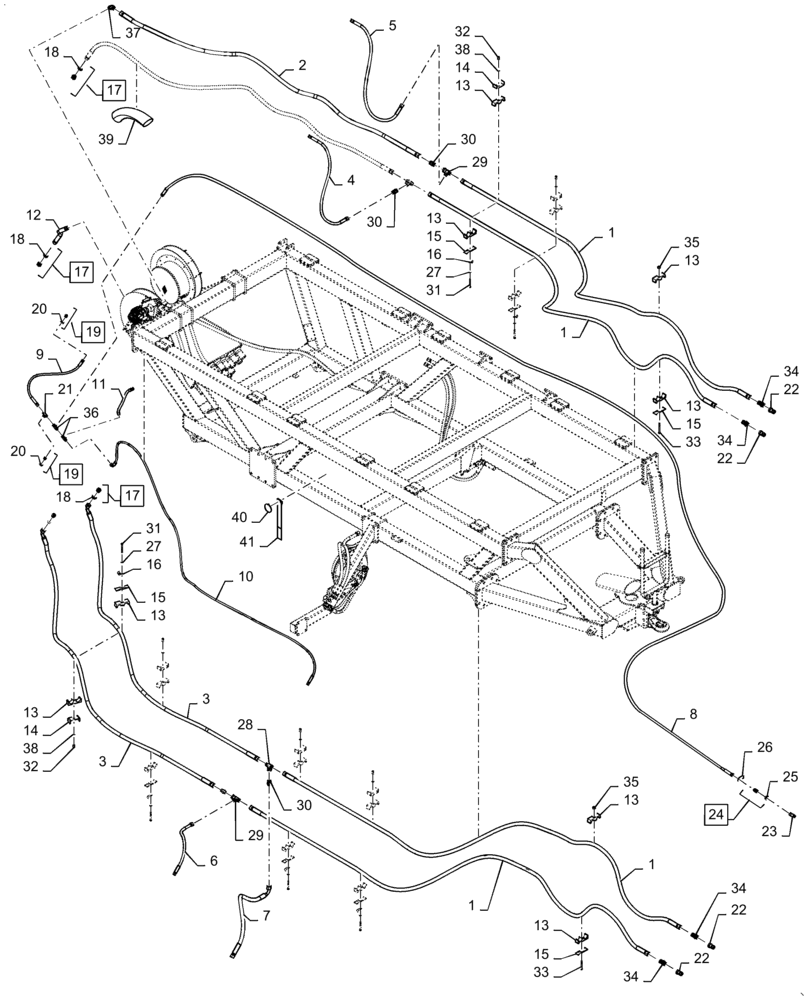

Схема запчастей Case IH 4765 - (35.748.AC[15]) - METERING HYDRAULICS 580 BUSHEL DOUBLE SHOOT TOW BEHIND (35) - HYDRAULIC SYSTEMS
34
35
16
20
34
18
29
31
8
15
19
34
3
11
13
33
26
22
34
40
21
15
13
17
13
13
18
1
32
30
37
14
24
1
23
22
2
16
28
7
6
22
30
12
17
13
38
38
31
22
32
14
36
5
25
27
20
4
1
35
10
41
27
3
29
39
18
13
33
1
30
13
19
15
17
15
9
13

Артикул

Название

Примечание

Количество

1

47709441

HYDRAULIC HOSE,25mm ID x 6621mm L, SAE 100R17

4шт.

2

47709442

HYDRAULIC HOSE,25mm ID x 5144mm L, SAE 100R17

2шт.

3

47709443

HYDRAULIC HOSE,25mm ID x 5200mm L, SAE 100R17

2шт.

4

47709445

HYDRAULIC HOSE,19mm ID x 2299mm L, SAE 100R17

1шт.

5

47709378

HYDRAULIC HOSE,19mm ID x 2489mm L, SAE 100R17

1шт.

6

47709449

HYDRAULIC HOSE,19mm ID x 1065mm L, SAE 100R17

1шт.

7

47709448

HYDRAULIC HOSE,19mm ID x 1185mm L, SAE 100R17

1шт.

8

47709447

HYDRAULIC HOSE,12.5mm ID x 11855mm L, SAE 100R17

1шт.

9

47709333

HYDRAULIC HOSE,12.5mm ID x 1040mm L, SAE 100R17

1шт.

10

47709444

HYDRAULIC HOSE,12.5mm ID x 5565mm L, SAE 100R17

1шт.

11

47772006

HYDRAULIC HOSE,12.5mm ID x 650mm L, SAE 100R17

1шт.

12

47772008

HYDRAULIC HOSE,25.4mm ID x 600mm L, SAE 100R17

1шт.

13

47814282

CLAMP,2 Hole, 35.7mm ID

12шт.

14

47744277

MOUNT

Hydraulic Hose

10шт.

15

87000231

PLATE

Cover

12шт.

16

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

9шт.

17

86050292

HYD CONNECTOR,1 5/16"-12, 37 Degree x7/8"-14, O-Ring

Incl 18

4шт.

18

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

19

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 20

2шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

21

86513015

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

22

9358

QUICK MALE COUPLING,1" - 11.5 NPTF

4шт.

23

385358A1

QUICK MALE COUPLING,3/8"

1шт.

24

47727144

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 25

1шт.

25

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

47432848

DECAL

Case Drain

1шт.

27

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

28

86513018

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

2шт.

29

9618946

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

2шт.

30

47724879

CHECK VALVE,1-5/16" - 12 x 1-5/16" - 12, 5 PSI

4шт.

31

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

10шт.

32

47728119

NUT,M8 x 1.25, 24mm L

10шт.

33

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

34

47708521

HYD CONNECTOR,1-5/16" - 12 JIC x 1" - 11.5 NPTF

4шт.

35

68841

NUT,M8 x 1.25, Cl 8

2шт.

36

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

37

86512961

45 ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1шт.

38

84359103

NUT,Push On, M8

10шт.

39

87502709

PROTECTIVE SLEEVE,2-1/2" OD x 18" L

1шт.

40

289862C1

CABLE TIE,3/16" x 7"

2шт.

41

87108048

SECURING STRAP

1шт.

Выбрано товаров: 41
