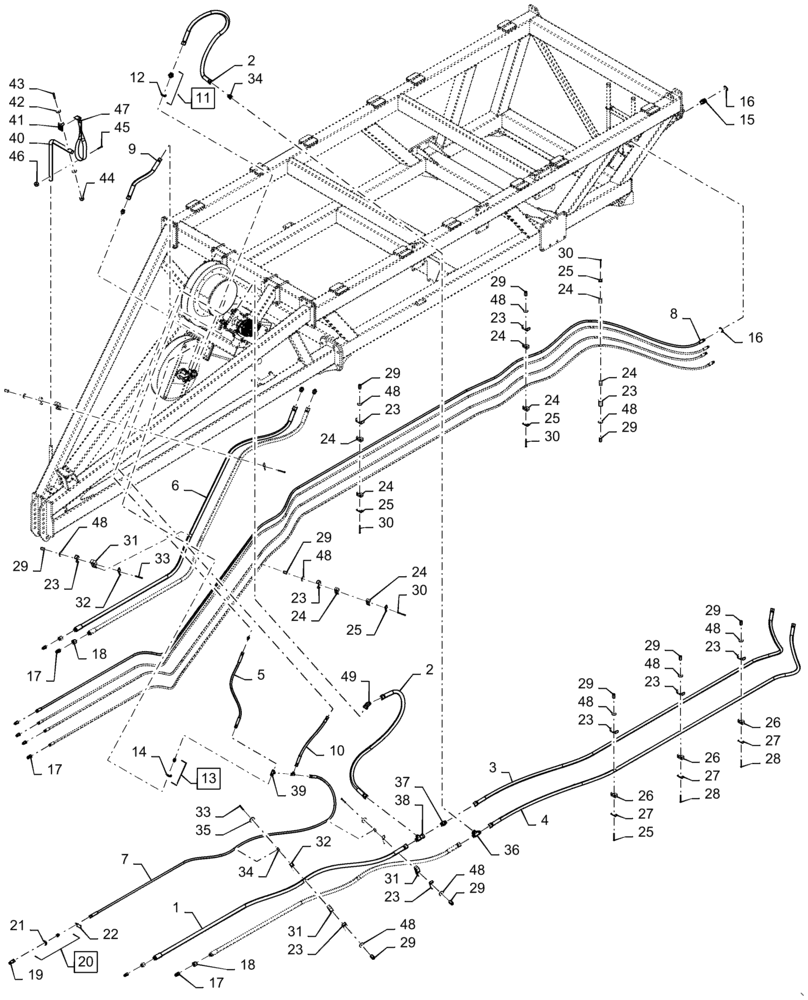

Запчасти Case IH 4765 (35.748.AC[10]) - METERING HYDRAULICS 435 BUSHEL DOUBLE SHOOT TOW BETWEEN (35) - HYDRAULIC SYSTEMS

1

47709330

HYDRAULIC HOSE,25mm ID x 3340mm L, SAE 100R17

2шт.

2

47709331

HYDRAULIC HOSE,25mm ID x 1780mm L, SAE 100R17

2шт.

3

47709372

HYDRAULIC HOSE,19mm ID x 4831mm L, SAE 100R17

1шт.

4

47709373

HYDRAULIC HOSE,19mm ID x 4815mm L, SAE 100R17

1шт.

5

47709333

HYDRAULIC HOSE,12.5mm ID x 1040mm L, SAE 100R17

1шт.

6

47709334

HYDRAULIC HOSE,25mm ID x 4050mm L, SAE 100R17

2шт.

7

47709335

HYDRAULIC HOSE,12.5mm ID x 4000mm L, SAE 100R17

1шт.

8

47709391

HYDRAULIC HOSE,12.5mm ID x 10455mm L, SAE 100R17

4шт.

9

47772008

HYDRAULIC HOSE,25.4mm ID x 600mm L, SAE 100R17

1шт.

10

47772006

HYDRAULIC HOSE,12.5mm ID x 650mm L, SAE 100R17

1шт.

11

86050292

HYD CONNECTOR,1 5/16"-12, 37 Degree x7/8"-14, O-Ring

Incl 12

4шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

13

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 14

2шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

15

47611343

COUPLING, QUICK, FEM

4шт.

16

82854996

SNAP RING,1 1/2", Ext

8шт.

17

9412

QUICK MALE COUPLING

8шт.

18

21668

REDUCER FITTING,1/2" - 14 Male NPT x 3/4" - 14 Female NPT

4шт.

19

385358A1

QUICK MALE COUPLING,3/8"

1шт.

20

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 21

1шт.

21

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

47432848

DECAL

Case Drain

1шт.

23

47744277

MOUNT

Hydraulic Hose

14шт.

24

6560407

CLAMP,2 Hole, 18mm ID

14шт.

25

87000230

PLATE

Cover

7шт.

26

1758367

HOSE CLIP,2 Hole, 28mm ID

3шт.

27

1186005

PLATE

Cover

3шт.

28

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

3шт.

29

47728119

NUT,M8 x 1.25, 24mm L

14шт.

30

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

7шт.

31

47814282

CLAMP,2 Hole, 35.7mm ID

4шт.

32

87000231

PLATE

Cover

4шт.

33

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

34

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

35

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

36

86513018

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

1шт.

37

47724879

CHECK VALVE,1-5/16" - 12 x 1-5/16" - 12, 5 PSI

2шт.

38

9618946

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

1шт.

39

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

40

47736698

TUBE

Front Hitch Hydraulic

1шт.

41

364318A1

ANCHOR

Strap

1шт.

42

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

43

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

44

100038

NUT,M12 x 1.75, Cl 8

1шт.

45

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

46

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

47

84566648

SECURING STRAP

1шт.

48

84359103

NUT,Push On, M8

14шт.

49

86512961

45 ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1шт.
