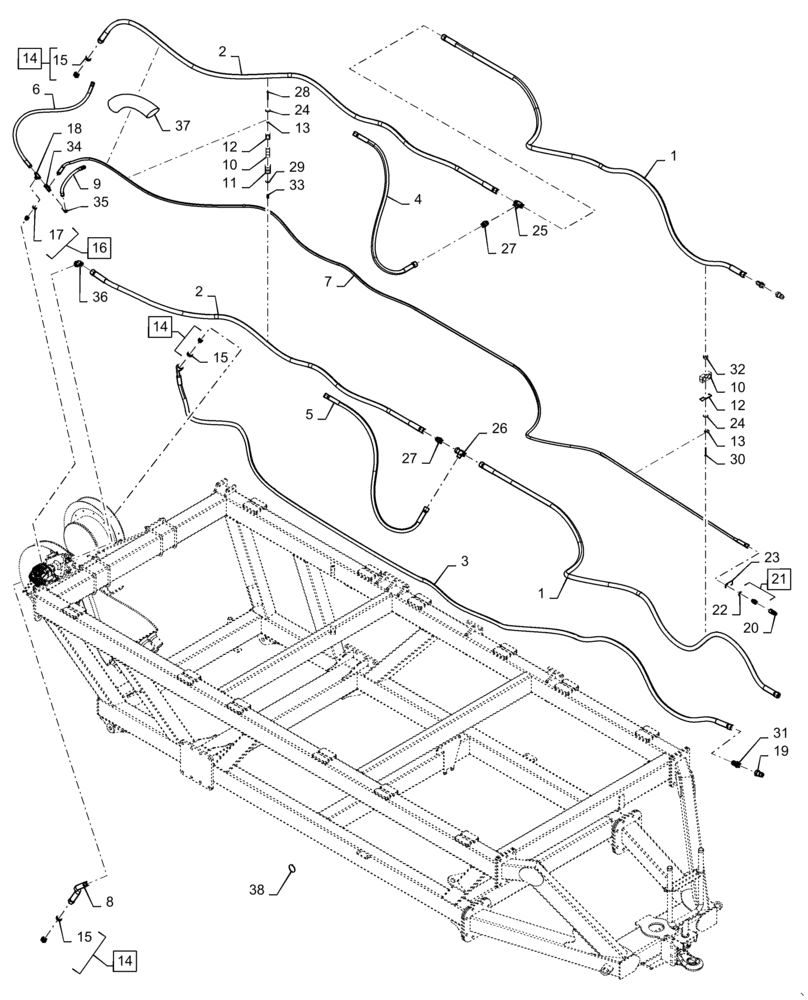

Запчасти Case IH 4765 (35.748.AC[09]) - METERING HYDRAULICS 435 BUSHEL DOUBLE SHOOT TOW BEHIND (35) - HYDRAULIC SYSTEMS

1

47709431

HYDRAULIC HOSE,25mm ID x 5800mm L, SAE 100R17

2шт.

2

47709432

HYDRAULIC HOSE,25mm ID x 4585mm L, SAE 100R17

2шт.

3

47709436

HYDRAULIC HOSE,25mm ID x 10250mm L, SAE 100R17

2шт.

4

47709435

HYDRAULIC HOSE,19mm ID x 1673mm L, SAE 100R17

1шт.

5

47709371

HYDRAULIC HOSE,19mm ID x 1727mm L, SAE 100R17

1шт.

6

47709333

HYDRAULIC HOSE,12.5mm ID x 1040mm L, SAE 100R17

1шт.

7

47709437

HYDRAULIC HOSE,12.5mm ID x 10400mm L, SAE 100R17

1шт.

8

47772008

HYDRAULIC HOSE,25.4mm ID x 600mm L, SAE 100R17

1шт.

9

47772006

HYDRAULIC HOSE,12.5mm ID x 650mm L, SAE 100R17

1шт.

10

47814282

CLAMP,2 Hole, 35.7mm ID

12шт.

11

47744277

MOUNT

Hydraulic Hose

10шт.

12

87000231

PLATE

Cover

12шт.

13

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

6шт.

14

86050292

HYD CONNECTOR,1 5/16"-12, 37 Degree x7/8"-14, O-Ring

Incl 15

4шт.

15

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

16

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 17

2шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

18

86513015

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

19

9358

QUICK MALE COUPLING,1" - 11.5 NPTF

4шт.

20

385358A1

QUICK MALE COUPLING,3/8"

1шт.

21

47727144

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 22

1шт.

22

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

47432848

DECAL

Case Drain

1шт.

24

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

25

86513018

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

1шт.

26

9618946

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

1шт.

27

47724879

CHECK VALVE,1-5/16" - 12 x 1-5/16" - 12, 5 PSI

2шт.

28

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

10шт.

29

47728119

NUT,M8 x 1.25, 24mm L

10шт.

30

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

31

47708521

HYD CONNECTOR,1-5/16" - 12 JIC x 1" - 11.5 NPTF

4шт.

32

68841

NUT,M8 x 1.25, Cl 8

2шт.

33

84359103

NUT,Push On, M8

10шт.

34

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

35

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

36

86512961

45 ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1шт.

37

87502709

PROTECTIVE SLEEVE,2-1/2" OD x 18" L

1шт.

38

289862C1

CABLE TIE,3/16" x 7"

2шт.
