Запчасти Case IH 4765 (35.748.AC[07]) - METERING HYDRAULICS 350 BUSHEL DOUBLE SHOOT TOW BEHIND (35) - HYDRAULIC SYSTEMS

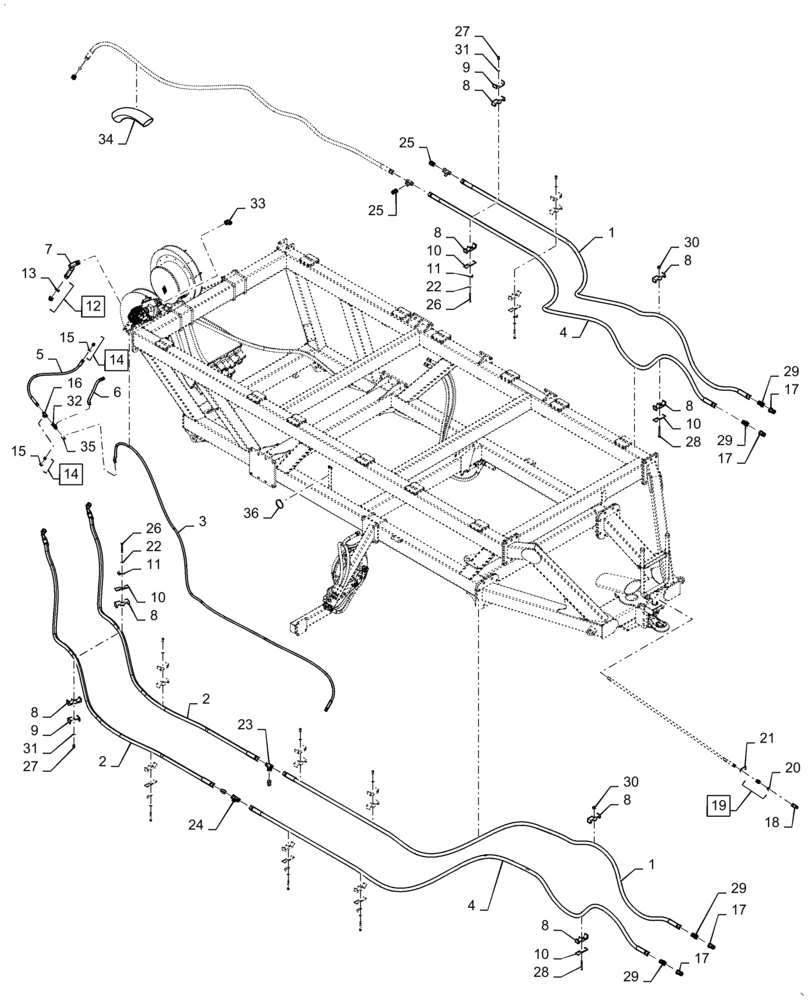

Схема запчастей Case IH 4765 - (35.748.AC[07]) - METERING HYDRAULICS 350 BUSHEL DOUBLE SHOOT TOW BEHIND (35) - HYDRAULIC SYSTEMS
8
8
8
8
30
5
17
8
15
29
9
10
16
4
1
4
27
8
33
26
15
12
17
36
7
9
14
10
1
11
8
29
29
26
17
28
6
13
3
8
34
21
10
22
31
27
31
35
2
25
24
20
23
17
30
25
32
2
28
18
19
14
11
10
29
22

Артикул

Название

Примечание

Количество

1

47709419

HYDRAULIC HOSE,25mm ID x 6890mm L, SAE 100R17

2шт.

2

47709420

HYDRAULIC HOSE,25mm ID x 2910mm L, SAE 100R17

2шт.

3

47709425

HYDRAULIC HOSE,12.5mm ID x 9880mm L, SAE 100R17

1шт.

4

47709424

HYDRAULIC HOSE,25mm ID x 9490mm L, SAE 100R17

2шт.

5

47709333

HYDRAULIC HOSE,12.5mm ID x 1040mm L, SAE 100R17

1шт.

6

47772006

HYDRAULIC HOSE,12.5mm ID x 650mm L, SAE 100R17

1шт.

7

47772008

HYDRAULIC HOSE,25.4mm ID x 600mm L, SAE 100R17

1шт.

8

47814282

CLAMP,2 Hole, 35.7mm ID

10шт.

9

47744277

MOUNT

Hydraulic Hose

8шт.

10

87000231

PLATE

Cover

10шт.

11

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

5шт.

12

86050292

HYD CONNECTOR,1 5/16"-12, 37 Degree x7/8"-14, O-Ring

Incl 13

4шт.

13

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

14

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 15

2шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

16

86513015

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

17

9358

QUICK MALE COUPLING,1" - 11.5 NPTF

4шт.

18

385358A1

QUICK MALE COUPLING,3/8"

1шт.

19

47727144

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 20

1шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

47432848

DECAL

Case Drain

1шт.

22

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

23

86513018

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

1шт.

24

9618946

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

1шт.

25

47724879

CHECK VALVE,1-5/16" - 12 x 1-5/16" - 12, 5 PSI

2шт.

26

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

8шт.

27

47728119

NUT,M8 x 1.25, 24mm L

8шт.

28

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

29

47708521

HYD CONNECTOR,1-5/16" - 12 JIC x 1" - 11.5 NPTF

4шт.

30

68841

NUT,M8 x 1.25, Cl 8

2шт.

31

84359103

NUT,Push On, M8

8шт.

32

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

33

86512961

45 ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1шт.

34

87502709

PROTECTIVE SLEEVE,2-1/2" OD x 18" L

1шт.

35

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

36

289862C1

CABLE TIE,3/16" x 7"

2шт.

Выбрано товаров: 36
