Запчасти Case IH 4765 (35.748.AC[05]) - METERING HYDRAULICS 555 BUSHEL SINGLE SHOOT TOW BEHIND (35) - HYDRAULIC SYSTEMS

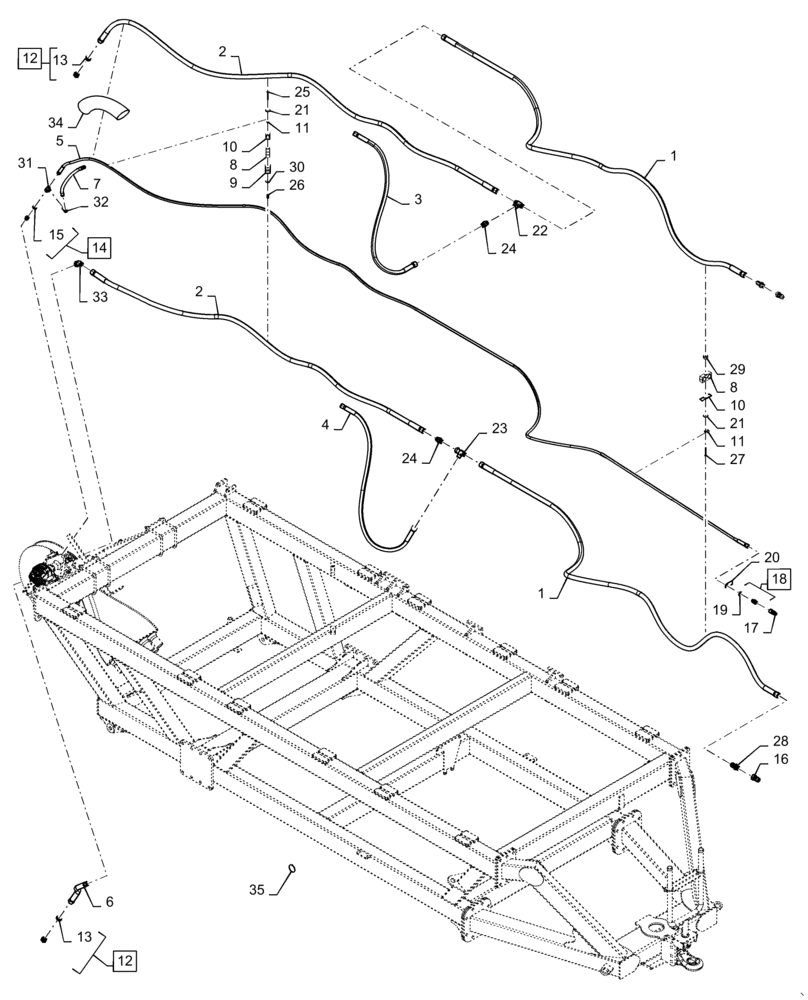

Схема запчастей Case IH 4765 - (35.748.AC[05]) - METERING HYDRAULICS 555 BUSHEL SINGLE SHOOT TOW BEHIND (35) - HYDRAULIC SYSTEMS
9
13
24
15
34
30
24
5
25
11
1
7
19
27
18
2
16
8
26
12
13
28
1
12
8
35
21
3
23
2
17
10
29
14
10
21
11
22
6
32
31
4
33
20

Артикул

Название

Примечание

Количество

1

47709441

HYDRAULIC HOSE,25mm ID x 6621mm L, SAE 100R17

2шт.

2

47709442

HYDRAULIC HOSE,25mm ID x 5144mm L, SAE 100R17

2шт.

3

47709445

HYDRAULIC HOSE,19mm ID x 2299mm L, SAE 100R17

1шт.

4

47709378

HYDRAULIC HOSE,19mm ID x 2489mm L, SAE 100R17

1шт.

5

47709447

HYDRAULIC HOSE,12.5mm ID x 11855mm L, SAE 100R17

1шт.

6

47772008

HYDRAULIC HOSE,25.4mm ID x 600mm L, SAE 100R17

1шт.

7

47772006

HYDRAULIC HOSE,12.5mm ID x 650mm L, SAE 100R17

1шт.

8

47814282

CLAMP,2 Hole, 35.7mm ID

6шт.

9

47744277

MOUNT

Hydraulic Hose

5шт.

10

87000231

PLATE

Cover

6шт.

11

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

6шт.

12

86050292

HYD CONNECTOR,1 5/16"-12, 37 Degree x7/8"-14, O-Ring

Incl 13

2шт.

13

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

14

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 15

1шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

9358

QUICK MALE COUPLING,1" - 11.5 NPTF

2шт.

17

385358A1

QUICK MALE COUPLING,3/8"

1шт.

18

47727144

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 19

1шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

47432848

DECAL

Case Drain

1шт.

21

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

22

86513018

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

1шт.

23

9618946

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

1шт.

24

47724879

CHECK VALVE,1-5/16" - 12 x 1-5/16" - 12, 5 PSI

2шт.

25

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

5шт.

26

47728119

NUT,M8 x 1.25, 24mm L

5шт.

27

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

1шт.

28

47708521

HYD CONNECTOR,1-5/16" - 12 JIC x 1" - 11.5 NPTF

2шт.

29

68841

NUT,M8 x 1.25, Cl 8

1шт.

30

84359103

NUT,Push On, M8

5шт.

31

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

32

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

33

86512961

45 ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1шт.

34

87502709

PROTECTIVE SLEEVE,2-1/2" OD x 18" L

1шт.

35

289862C1

CABLE TIE,3/16" x 7"

2шт.

Выбрано товаров: 35
