Запчасти Case IH 4765 (35.748.AC[01]) - METERING HYDRAULICS, 350 BUSHEL, SINGLE SHOOT, TOW BEHIND (35) - HYDRAULIC SYSTEMS

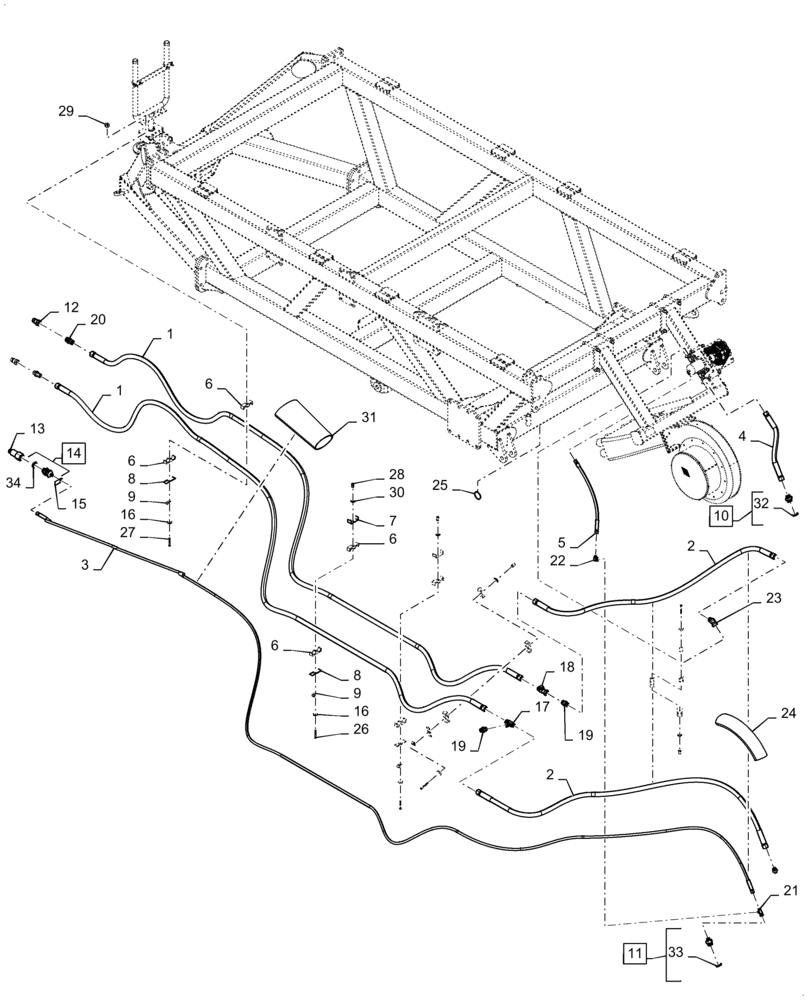

Схема запчастей Case IH 4765 - (35.748.AC[01]) - METERING HYDRAULICS, 350 BUSHEL, SINGLE SHOOT, TOW BEHIND (35) - HYDRAULIC SYSTEMS
24
6
2
7
4
33
5
27
17
6
10
3
28
21
13
4
31
8
18
6
25
19
8
22
9
6
29
12
30
19
11
15
34
20
1
16
2
26
9
16
1
23
32
14

Артикул

Название

Примечание

Количество

1

47709419

HYDRAULIC HOSE,25mm ID x 6890mm L, SAE 100R17

2шт.

2

47709420

HYDRAULIC HOSE,25mm ID x 2910mm L, SAE 100R17

2шт.

3

47709425

HYDRAULIC HOSE,12.5mm ID x 9880mm L, SAE 100R17

1шт.

4

47772008

HYDRAULIC HOSE,25.4mm ID x 600mm L, SAE 100R17

1шт.

5

47772006

HYDRAULIC HOSE,12.5mm ID x 650mm L, SAE 100R17

1шт.

6

47814282

CLAMP,2 Hole, 35.7mm ID

5шт.

7

47744277

MOUNT

Hydraulic Hose

4шт.

8

87000231

PLATE

Cover

5шт.

9

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

5шт.

10

86050292

HYD CONNECTOR,1 5/16"-12, 37 Degree x7/8"-14, O-Ring

Incl 32

2шт.

11

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 33

1шт.

12

9358

QUICK MALE COUPLING,1" - 11.5 NPTF

2шт.

13

385358A1

QUICK MALE COUPLING,3/8"

Hydraulic

1шт.

14

47727144

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 34

1шт.

15

47432848

DECAL

Case Drain

1шт.

16

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

17

86513018

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

1шт.

18

9618946

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

1шт.

19

47724879

CHECK VALVE,1-5/16" - 12 x 1-5/16" - 12, 5 PSI

2шт.

20

47708521

HYD CONNECTOR,1-5/16" - 12 JIC x 1" - 11.5 NPTF

2шт.

21

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

22

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

23

86512961

45 ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1шт.

24

87502709

PROTECTIVE SLEEVE,2-1/2" OD x 18" L

2-1/2" x 18"

1шт.

25

289862C1

CABLE TIE,3/16" x 7"

2шт.

26

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

27

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

1шт.

28

47728119

NUT,M8 x 1.25, 24mm L

4шт.

29

68841

NUT,M8 x 1.25, Cl 8

1шт.

30

84359103

NUT,Push On, M8

4шт.

31

87500092

HOSE PROTECTION

Bulk, Cut to Length of 18"

1шт.

32

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

33

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

34

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 34
