Запчасти Case IH 4765 (35.100.XX[01]) - MANUAL AUGER HYDRAULICS 350 BUSHELS (35) - HYDRAULIC SYSTEMS

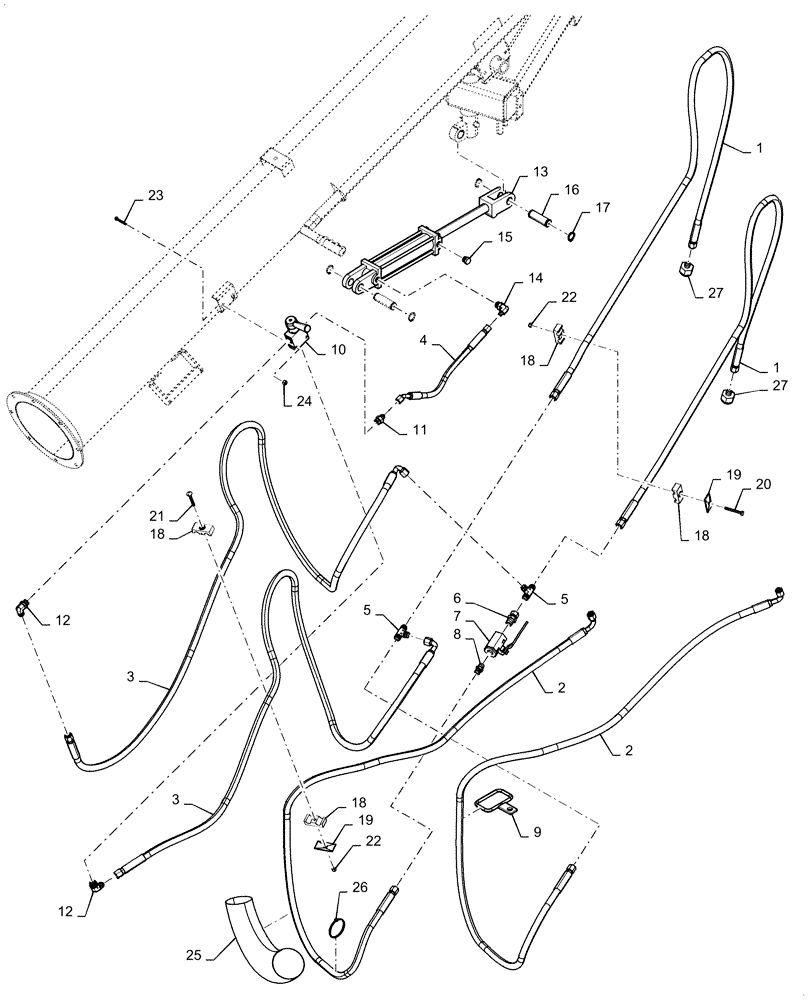

Схема запчастей Case IH 4765 - (35.100.XX[01]) - MANUAL AUGER HYDRAULICS 350 BUSHELS (35) - HYDRAULIC SYSTEMS
20
3
23
1
27
6
13
18
18
17
11
1
16
14
25
5
15
18
19
12
2
2
8
12
4
18
9
26
5
24
3
19
27
22
7
21
22
10

Артикул

Название

Примечание

Количество

1

47841436

HYDRAULIC HOSE

12.5 X 2400 mm

2шт.

2

47841437

HYDRAULIC HOSE

12.5 X 2575M mm

2шт.

3

47841438

HYDRAULIC HOSE

12.5 X 3175 mm

2шт.

4

47841440

HYDRAULIC HOSE

10 x 575 mm

1шт.

5

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

6

47761142

TEE

3/4"-16 x 1/2-14"

1шт.

7

350171A1

VALVE

Ball

1шт.

8

163334

HYD CONNECTOR,3/4" - 16 JIC x 3/8" - 18 NPT

1шт.

9

84271625

BRACKET

1шт.

10

47838477

HYDRAULIC VALVE

3 Way Rotary

1шт.

11

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

12

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

13

84490493

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 203.2mm Stroke

1шт.

14

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

1шт.

15

9479

PLUG

Breather

1шт.

16

84361344

PIN

Cylinder 25.4 x 73.15

2шт.

17

87019495

SNAP RING,#98, Ext

4шт.

18

6560407

CLAMP,2 Hole, 18mm ID

5шт.

19

87000230

PLATE

Cover

5шт.

20

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

3шт.

21

86512445

CARRIAGE BOLT,Sht Nk, M8 x 60mm, Cl 8.8

2шт.

22

86629542

NUT,M8 x 1.25, Cl 8.8

5шт.

23

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

24

87030561

NUT,M6 x 1, Cl 8

2шт.

25

87502709

PROTECTIVE SLEEVE,2-1/2" OD x 18" L

1шт.

26

289862C1

CABLE TIE,3/16" x 7"

2шт.

27

84278113

REDUCER FITTING,37 Degree -16 Female x 37 Degree -8 Male

2шт.

Выбрано товаров: 27
