Запчасти Case IH 4765 (27.550.AJ[02]) - WIDE REAR AXLE WITH SINGLE TIRES (27) - REAR AXLE SYSTEM

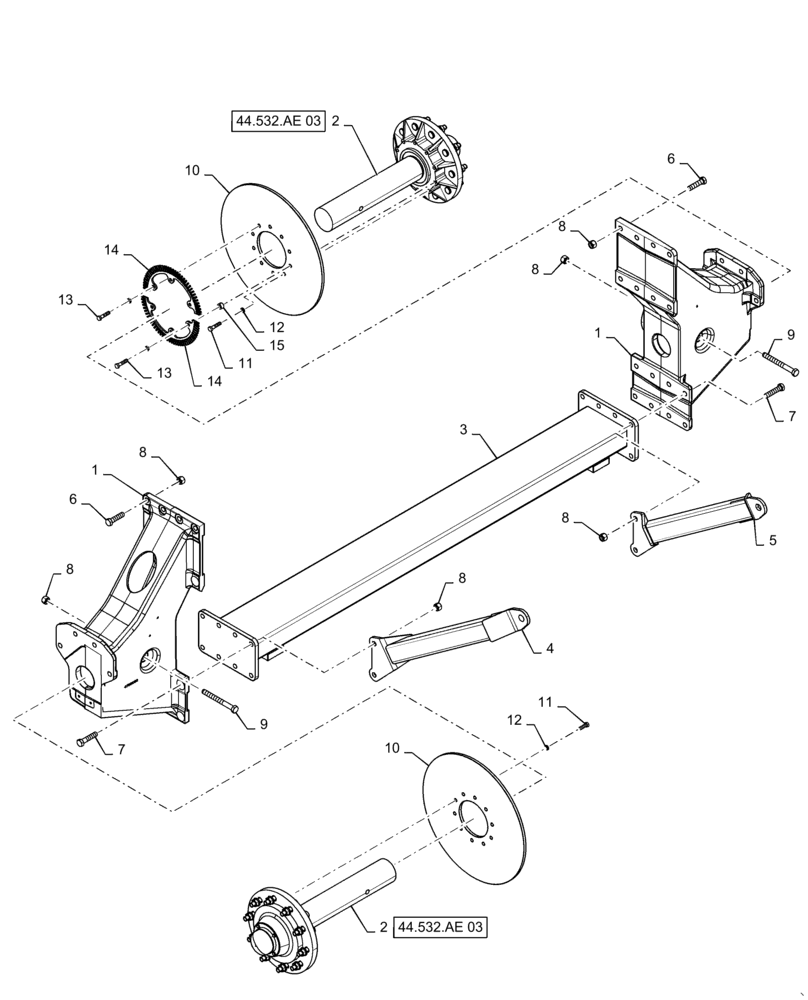

Схема запчастей Case IH 4765 - (27.550.AJ[02]) - WIDE REAR AXLE WITH SINGLE TIRES (27) - REAR AXLE SYSTEM
13
8
8
11
3
6
12
1
15
1
9
2
11
14
2
14
5
7
10
44.532.ae 03
4
13
8
9
10
44.532.ae 03
8
8
7
12
8
6

Артикул

Название

Примечание

Количество

1

47561066

HOUSING

Wide Rear Axle

2шт.

2

47459894

HUB

Rear Axle

2шт.

See Fig 44.532.AE 03 For Service Parts

1шт.

3

47514063

FRAME

Rear Axle

1шт.

4

47537365

STRUT

LH Axle Brace

1шт.

5

47537368

STRUT

RH Axle Brace

1шт.

6

382101

BOLT,Hex, M20 x 2.5 x 80mm, Cl 8.8

28шт.

7

412346

BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8

4шт.

8

725637

NUT,M20 x 2.5, Cl 8

34шт.

9

380422

BOLT,Hex, M20 x 2.5 x 190mm, Cl 8.8

2шт.

10

47664117

ROTOR

Brake, Single Wheel

2шт.

11

86512043

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 8, Full Thd

14шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

20шт.

13

86551024

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 8

6шт.

14

47650128

SPROCKET

Half Ring

2шт.

15

47697043

SPACER

Speed Sensor

6шт.

Выбрано товаров: 16
