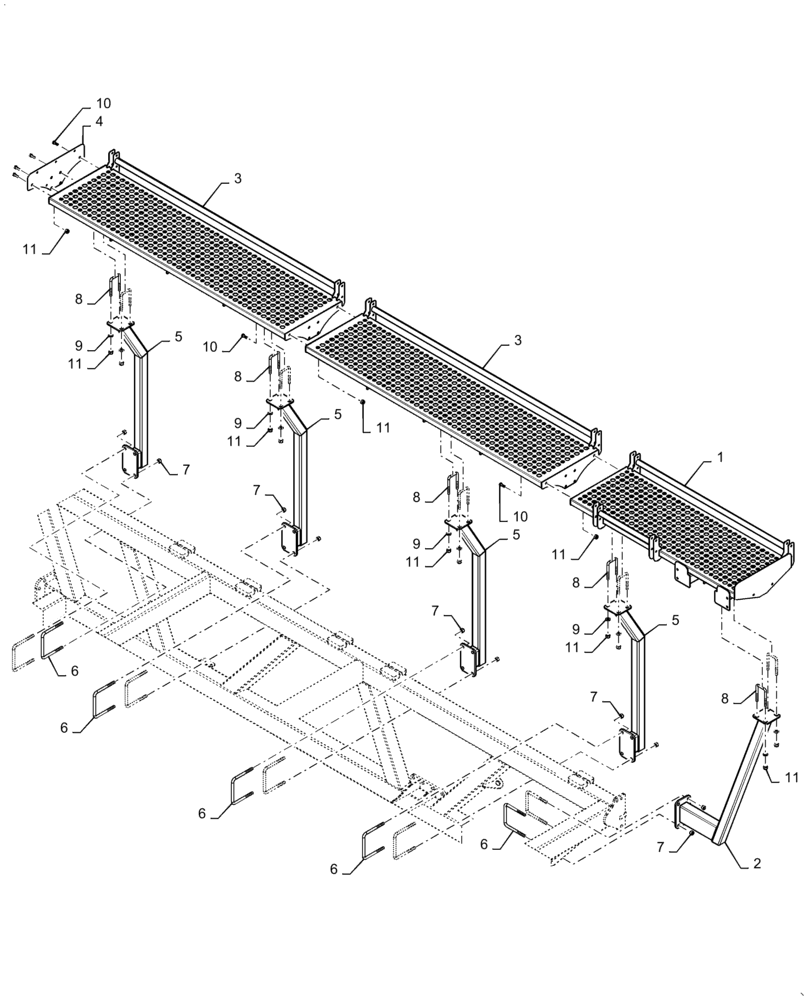

Запчасти Case IH 4765 (80.150.AJ[14]) - PLATFORM 580 BUSHELL TOW BEHIND (80) - CROP STORAGE/UNLOADING

1

47453869

PLATFORM

Corner Black

1шт.

2

47458621

SUPPORT

Platform Black

1шт.

3

47457704

PLATFORM

Frame Long Black

2шт.

4

47615824

PLATE

Toe Kick Black

1шт.

5

47452194

SUPPORT

Platform Mount Black

4шт.

6

47534143

U-BOLT,M16 x 2, Square, 180mm W x 175mm L

M16

10шт.

7

146988

LOCK NUT,M16 x 2, Cl 8

20шт.

8

47590160

U-BOLT

M12

10шт.

9

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

20шт.

10

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

18шт.

11

100038

NUT,M12 x 1.75, Cl 8

38шт.
