(80.150.AJ[11]) - PLATFORM HANDRAILS 350 BUSHELL TOW BEHIND

Запчасти Case IH 4765 (80.150.AJ[11]) - PLATFORM HANDRAILS 350 BUSHELL TOW BEHIND (80) - CROP STORAGE/UNLOADING

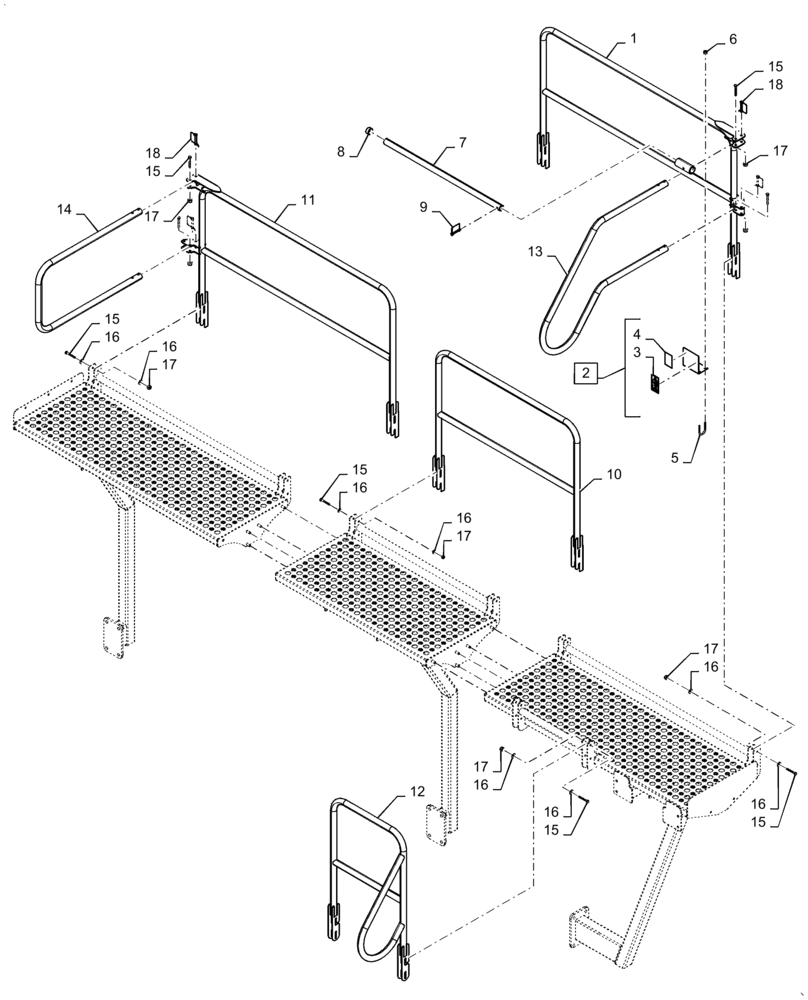

Схема запчастей Case IH 4765 - (80.150.AJ[11]) - PLATFORM HANDRAILS 350 BUSHELL TOW BEHIND (80) - CROP STORAGE/UNLOADING
18
14
16
15
15
17
17
18
6
15
8
1
16
17
16
16
13
4
3
16
9
15
17
16
15
15
11
17
16
10
16
7
5
12
17
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47615876

HANDRAIL

Short Platform

1шт.

2

47698290

BRACKET

Mount Black With Decal Incl 3 - 4

1шт.

3

84004732

CAUTION DECAL

Caution

1шт.

4

47433182

DECAL

Chemical Hazard

1шт.

5

352892A1

U-BOLT

M8

2шт.

6

68841

NUT,M8 x 1.25, Cl 8

4шт.

7

47752946

TUBE

Hatch Entry Support

1шт.

8

8060

CAP

Vinyl 1.5 X .75"

1шт.

9

647695

PIN,7.94mm OD

1шт.

10

47537957

HANDRAIL

Short Plattform Black

1шт.

11

47615369

HANDRAIL

Front Black

1шт.

12

47487633

HANDRAIL

Platform Corner Black

1шт.

13

47615895

PLATFORM

Rail Black

1шт.

14

47615901

PLATFORM

Rail Black

1шт.

15

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

20шт.

16

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

32шт.

17

100037

LOCK NUT,M10 x 1.5, Cl 8

20шт.

18

87574044

PIN

4шт.
