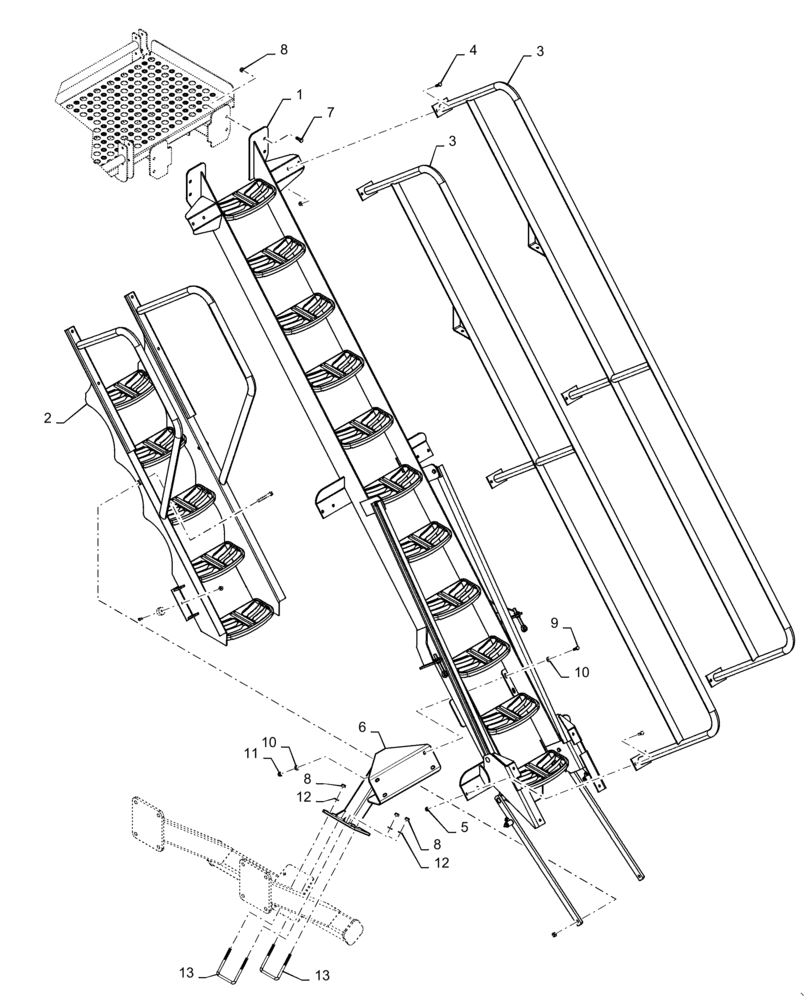

Запчасти Case IH 4765 (80.150.AJ[09]) - LADDER 350/435/460/555/580 BUSHELL FOR PLATFORM (80) - CROP STORAGE/UNLOADING

1

47466088

LADDER

Rigid Upper Black

1шт.

2

47543077

LADDER

Rigid Lower Black

1шт.

3

47457717

HANDRAIL

Stairs Upper Black

2шт.

4

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

6

47461783

BRACKET

Mounting Stairs Black

1шт.

7

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

8

100038

NUT,M12 x 1.75, Cl 8

8шт.

9

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

10

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

11

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

12

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

13

47592783

U-BOLT,M12 x 1.75, Square, 106mm W x 140mm L

M12

2шт.
