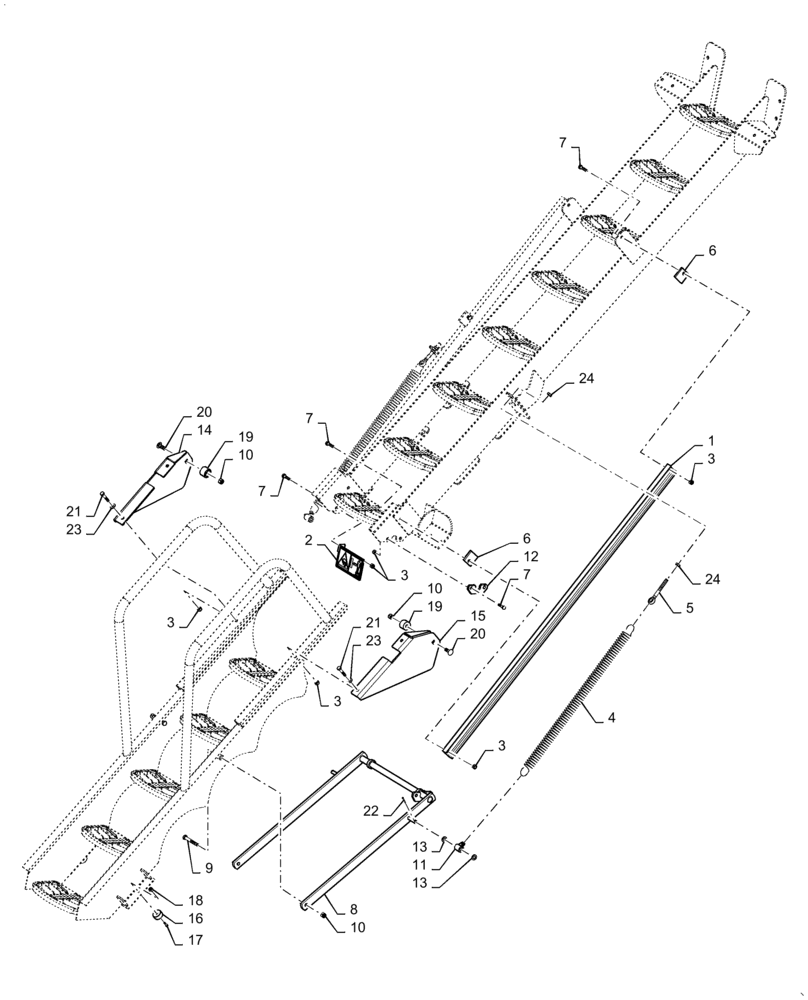

Запчасти Case IH 4765 (80.150.AJ[08]) - FOLDING STAIRS HARDWARE (80) - CROP STORAGE/UNLOADING

1

47543122

GUIDE

Track Stairway

2шт.

2

47667914

BRACKET

Mount Black With Decal

1шт.

3

100037

LOCK NUT,M10 x 1.5, Cl 8

12шт.

4

22609

TENSION SPRING

2шт.

5

84156112

EYEBOLT

Adjusting

2шт.

6

47590740

SPACER

Guide Track

4шт.

7

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

8шт.

8

47543095

ARM

Stair Pivot

1шт.

9

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

2шт.

10

100038

NUT,M12 x 1.75, Cl 8

4шт.

11

47814682

MOUNT

Spring Pivot

2шт.

12

47543121

JOURNAL

Pivot

2шт.

13

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

14

47543120

PLATE

Stairway Travel Left

1шт.

15

47543119

PLATE

Stairway Travel Right

1шт.

16

51200147

FOOT

Rubber with Steel Washer

2шт.

17

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

18

353308

NUT,M6 x 1.0, Cl 8

2шт.

19

GI-844

ROLLER

Guide

2шт.

20

87035385

CARRIAGE BOLT,Sht Sq Nk, M12 x 35mm, Cl 8.8, Full Thd

2шт.

21

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

4шт.

22

80755

COTTER PIN,1/8" OD x 1" L

2шт.

23

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

24

10717321

THIN NUT,Thin, M12 x 1.75, Cl 05

4шт.
