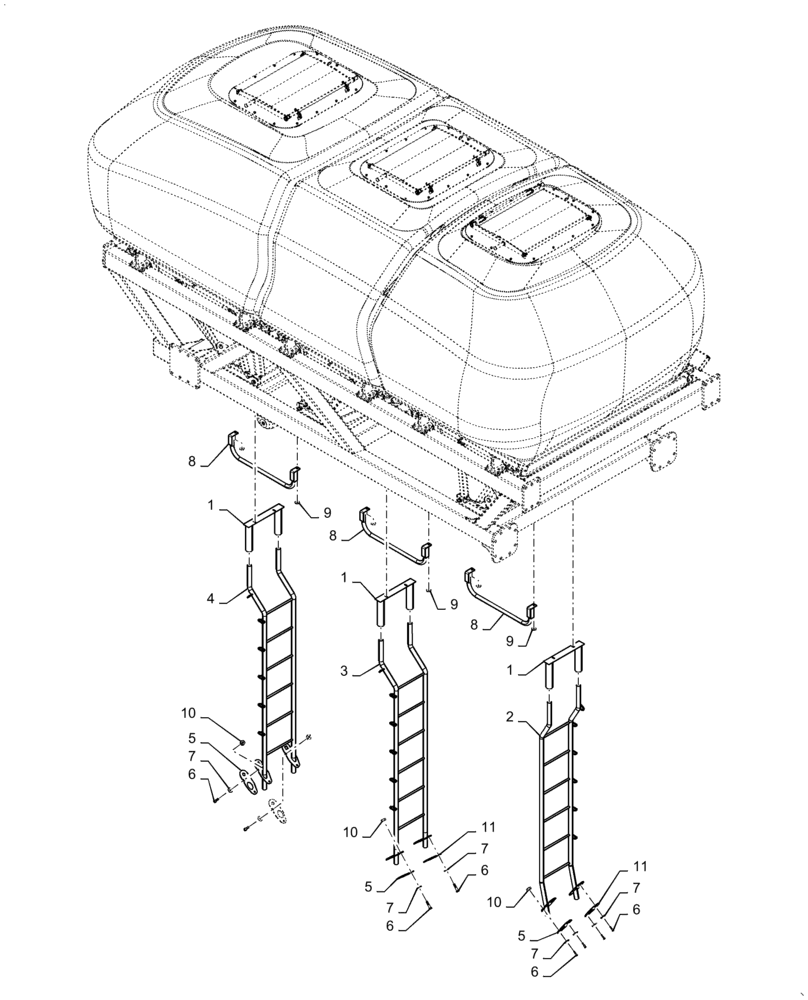

Запчасти Case IH 4765 (80.150.AJ[04]) - LADDERS 760 BUSHELL (80) - CROP STORAGE/UNLOADING

1

47801107

MOUNT

Ladder Top

3шт.

2

47801160

LADDER

230 Bu Tank Black

1шт.

3

47801182

LADDER

170 Bu Tank Black

1шт.

4

47801239

LADDER

325 Bu Tank Black

1шт.

5

47633625

SEAL

Ladder Mount

3шт.

6

86512443

CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd

18шт.

7

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

18шт.

8

47750291

STEP

Tank Hatch

3шт.

9

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

10

86629542

NUT,M8 x 1.25, Cl 8.8

18шт.

11

47814754

SEAL

Ladder Mount Right

3шт.
