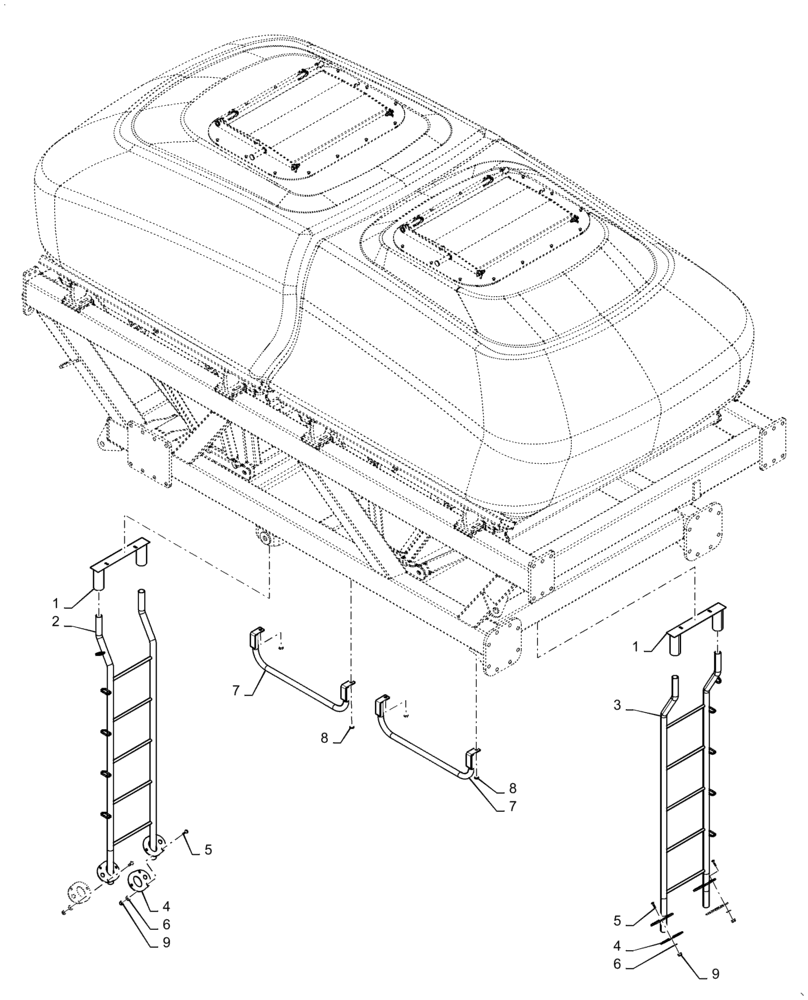

Запчасти Case IH 4765 (80.150.AJ[01]) - LADDERS 350 BUSHELL (80) - CROP STORAGE/UNLOADING

1

47492768

MOUNT

Ladder Top

2шт.

2

47633607

LADDER

190 BU Tank Black

1шт.

3

47633609

LADDER

160 BU Tank Black

1шт.

4

47625984

SEAL

Ladder Mount

4шт.

5

86512443

CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd

12шт.

6

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

12шт.

7

47750291

STEP

Tank Hatch Black

2шт.

8

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

12шт.
